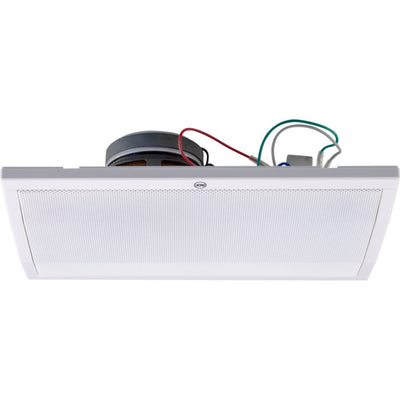

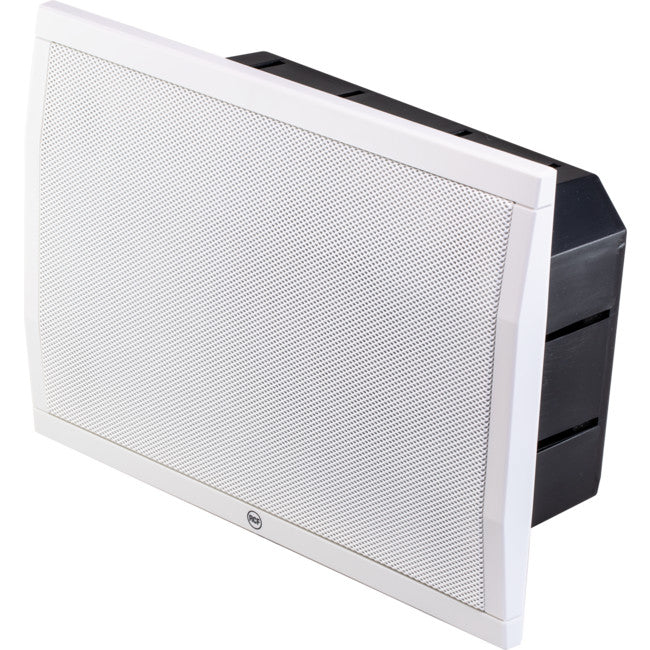

ELISA100 RCF IN WALL / CEILING 2WAY 100V - 4 OHM SPEAKER RCF ELISA 100

RCF ELISA 100 IN WALL 70 / 100V - 4 OHM SPEAKER

Superior quality speaker with attractive, contemporary design and quick, easy installation.
The E.L.I.S.A. 100 can be used in smaller spaces when used individually, or in larger environments when several speakers are used together.
Quick and easy installation thanks to magnetic cover-plate hooking.

Features:

• For high quality paging and background music

• Music power/RMS: 20/10W (30/15W for use without transformer, 4ohm)

• 4" coaxial speaker, main cone in carbon fi bre, tweeter with 1" diaphragm

• Equipped with multi-tapped transformer for 100/70/25V constant voltage connection

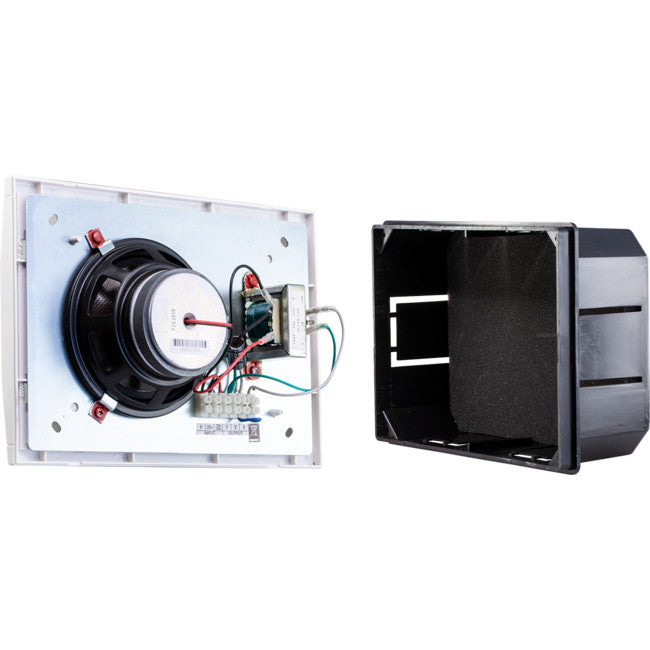

• Flush mount box with soundproof material included

• Front frame in ABS and metal grille RAL 9003 White


Acoustical Specifications:

• Type of speaker: Wall speaker with transformer

• Frequency Response: 100 Hz “‡ 20 kHz

• Max SPL @ 1m: 104 dB

• Horizontal coverage angle: 140°

• Power Handling: 10 W RMS

• Peak Power Handling: 20 W PEAK

• System Sensitivity: 91 dB

• Impedance: 4 ohm


Transducers:

• Speaker: 4.7"

• Tweeter: 1"


Input Section:

• Input connector: 2 conductor cable Faston terminated

• Constant voltage: 100 V , 70 V , 25 V

• Power Selection: 10 - 5 W (100V)


Cabinet:

• Hardware: Body in plastic

• Colour: White

• Grille: Metal


Physical Specifications:

• H eight: 185 / 7.28 mm/inch
• Width: 260 / 10.23 mm/inch
• Depth: 55 / 2.16 mm/inch
• Net weight: 1.46 / 3.21 kg/lbs
