EAP615-WALL AX1800 WALL PLATE ACCESS POINT TP-LINK EAP615-WALL

EAP615-WALL AX1800 WALL PLATE ACCESS POINT TP-LINK EAP615-WALL

$129.00

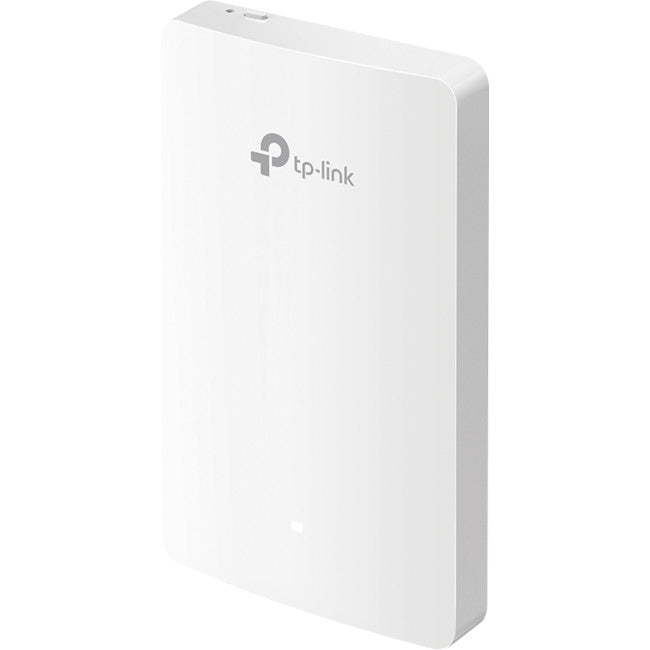

TP-Link EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Access Point

OMADA, 1201/574 Mbps, 4 × Gigabit Ethernet Port, 2 × Antenna, Centralised Management

Superior Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

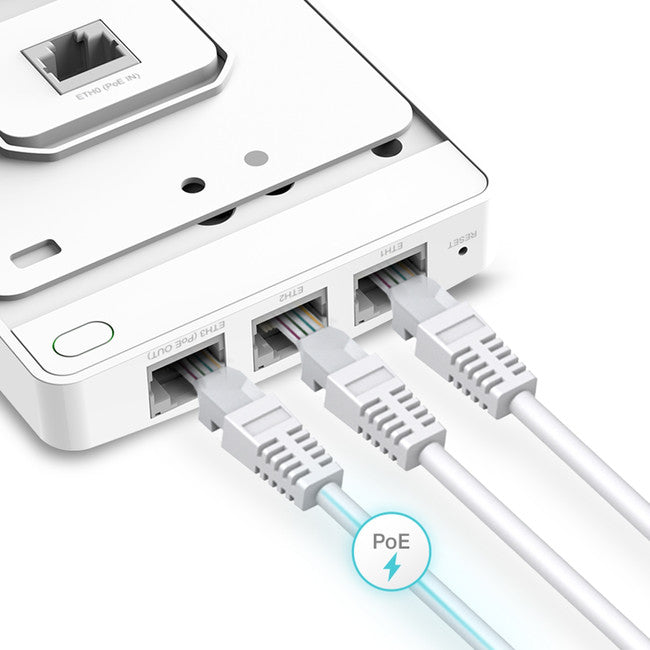

Four Gigabit Ports: 4 Gigabit Ethernet ports (1 × uplink + 3 × downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.
Centralised Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86mm & EU & US standard junction box, and 802.3af/at PoE support.

Specifications

HARDWARE FEATURES	Interface	Uplink: 1 × 10/100/1000 Mbps Ethernet Port Downlink: 3 × 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 13W based on laboratory testing)
	Physical Security Lock	Yes
	Button	Reset
	Power Supply	802.3af/at PoE
	Power Consumption	10W (802.3at PoE, PoE Out off)

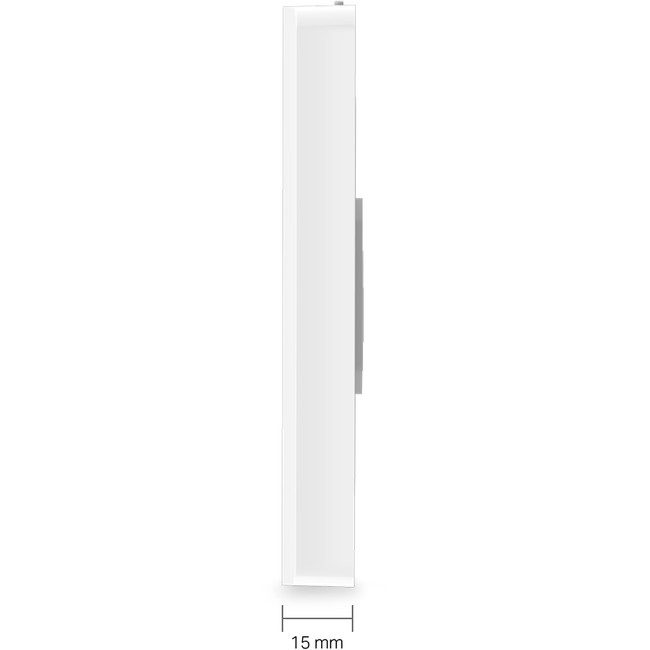

	Dimensions	143mm × 86mm × 20 mm
	Antenna	2 Dual-Band Antennas 2.4 GHz: 2 × 3 dBi 5 GHz: 2 × 4 dBi
	Mounting Wall Plate	Mounting
WIRELESS FEATURES	Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
	Frequency	2.4 GHz and 5 GHz
	Signal Rate	5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps

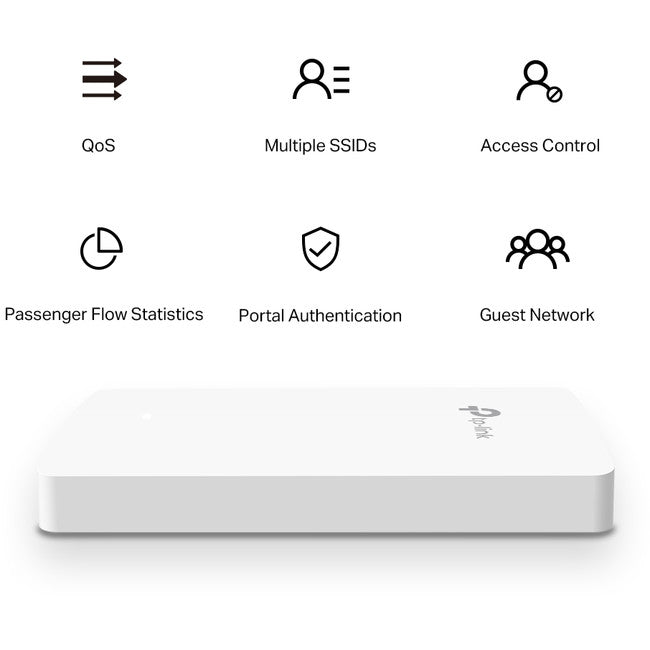

	Wireless Functions	16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) Seamless Roaming Beamforming MU-MIMO Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP
	Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
	Transmission Power	CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, EIRP) FCC: <21 dBm (2.4 GHz) <21 dBm (5 GHz)
MANAGEMENT	Omada App	Yes
	Centralised Management	Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
	Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
ENVIRONMENT	Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
	Storage Temperature	−40°C ~ 70°C (−40°F ~ 158°F)
	Operating Humidity	10–90% RH non-condensing
	Storage Humidity	5–90% RH non-condensing
OTHERS	Certification	CE, FCC, RoHS
	Package Contents	AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall Installation Guide Mounting Kits
	System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
