$99.00

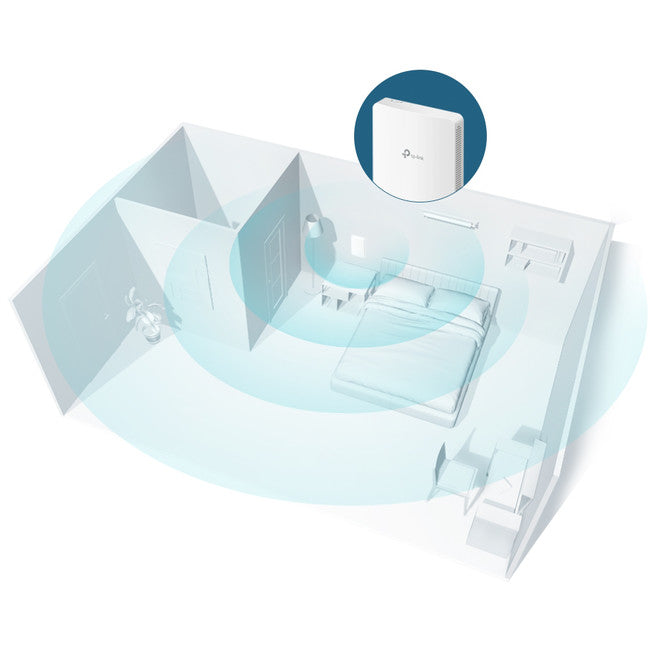

An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.
The thinnest wall plate AP available. Only 15mm featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.
*Fits three kinds of wall junctions.

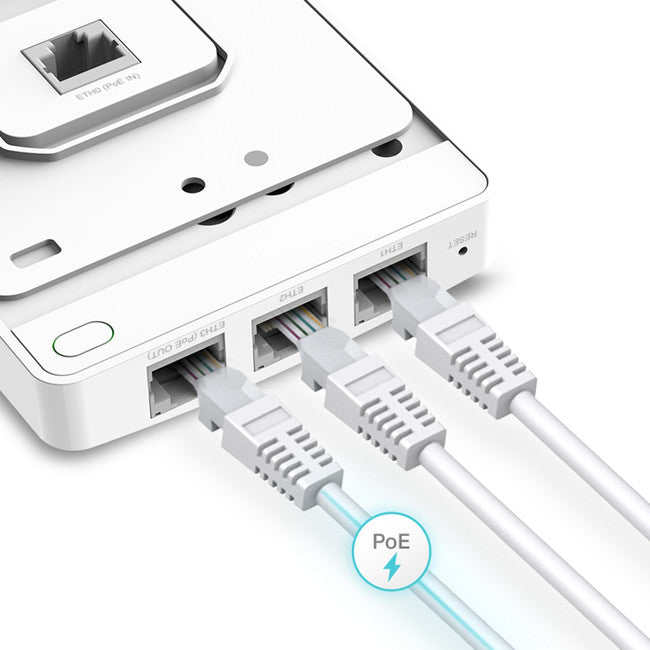

Equipped with four Gigabit data ports (1 × uplink + 3 × downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

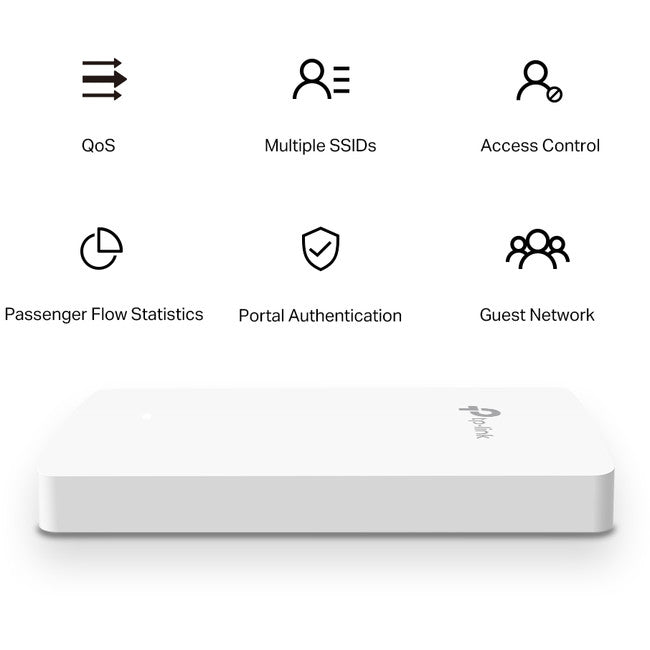

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
| HARDWARE FEATURES | Interface |
|
|---|---|---|
| Physical Security Lock | Yes | |
| Button | Reset | |
| Power Supply | 802.3af/802.3at PoE | |
| Power Consumption | 9.8W / 24.4W (PoE Out Included) | |
| Dimensions | 143mm × 86mm × 20mm (5.6″ × 3.4″ × 0.8″) | |
| Antenna | 2 × Dual-Band Antennas
| |
| Mounting | Wall Plate Mounting | |
| WIRELESS FEATURES | Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz and 5GHz | |
| Signal Rate |
| |
| Wireless Functions |
| |
| Wireless Security |
| |
| Transmission Power | CE:
| |
| MANAGEMENT | Omada App | Yes |
| Centralised Management |
| |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) | |
| Email Alerts | Yes | |
| LED ON/OFF Control | Yes | |
| Management MAC Access Control | Yes | |
| SNMP | V1, V2C | |
| System Logging Local/Remote Syslog | Local/Remote Syslog | |
| SSH | Yes | |
| Web-based Management | HTTP/HTTPS | |
| L3 Management | Yes | |
| Multi-site Management | Yes | |
| Management VLAN | Yes | |
| ENVIRONMENT | Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | −40°C ~ 70°C (−40°F ~ 158°F) | |
| Operating Humidity | 10%~90% non-condensing | |
| Storage Humidity | 5%~90% non-condensing | |
| OTHERS | Certification | CE, FCC, RoHS |
| Package Contents |
| |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10 |
