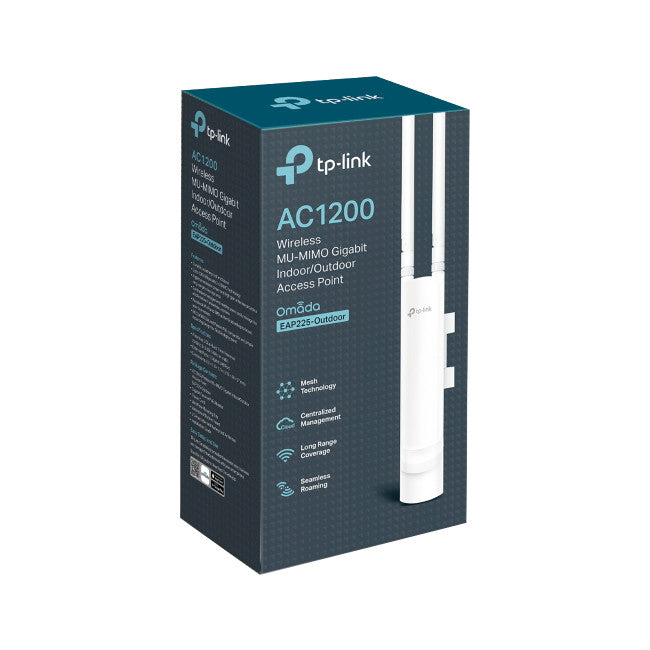

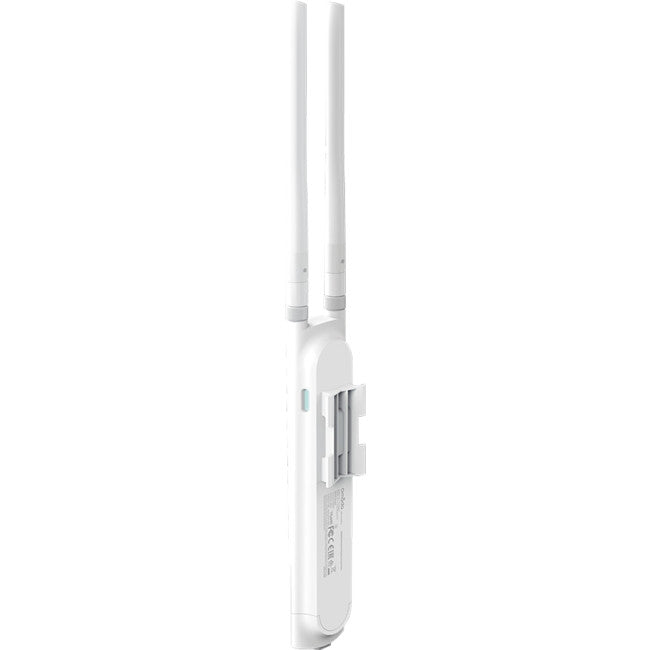

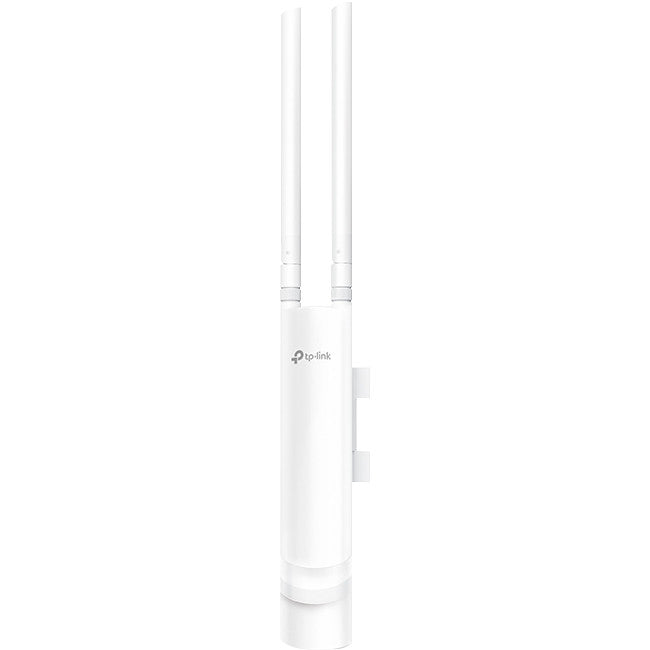

EAP225OUTDOOR AC1200 GIGABIT ACCESS POINT INDOOR / OUTDOOR MU-MIMO TP-LINK EAP225-OUTDOOR

EAP225OUTDOOR AC1200 GIGABIT ACCESS POINT INDOOR / OUTDOOR MU-MIMO TP-LINK EAP225-OUTDOOR

Features

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wirelessdeployments more flexible and convenient
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move betweenlocations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralised management and Omada app for ultra convenience and easy management
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Specifications

HARDWARE FEATURES

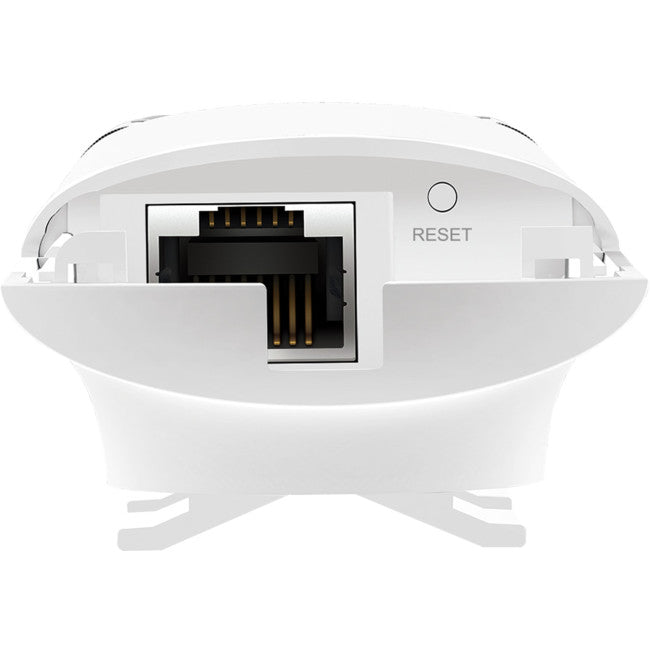

Interface 1× Gigabit Ethernet (RJ-45) Port(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply • 802.3af/at PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5 W
Dimensions ( W x D x H ) • 215.7×45×37.7 mm (without antenna & mounting kit)
• 403.8×90.7×55.2 mm (with antenna & mounting kit)
Antenna • 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate • 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions • Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Poweron dBm)
• QoS(WMM)
• MU-MIMO
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP),<25 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS

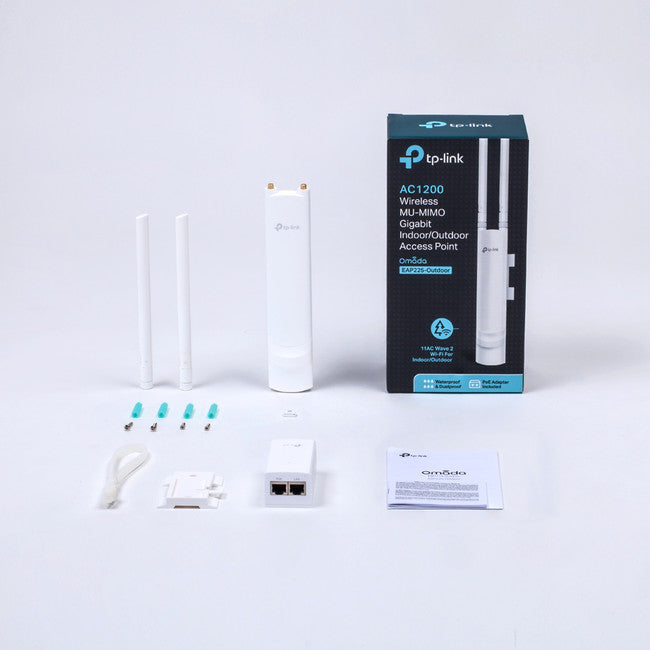

Package Contents • Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Ruber Insert
• Waterproof Antenna
Environment • Operating Temperature: -30?70 °C (-22?158 °F)
• Storage Temperature: -40?70 °C (-40?158 °F)
• Operating Humidity: 10?90% RH non-condensing
• Storage Humidity: 5?90% RH non-condensing
