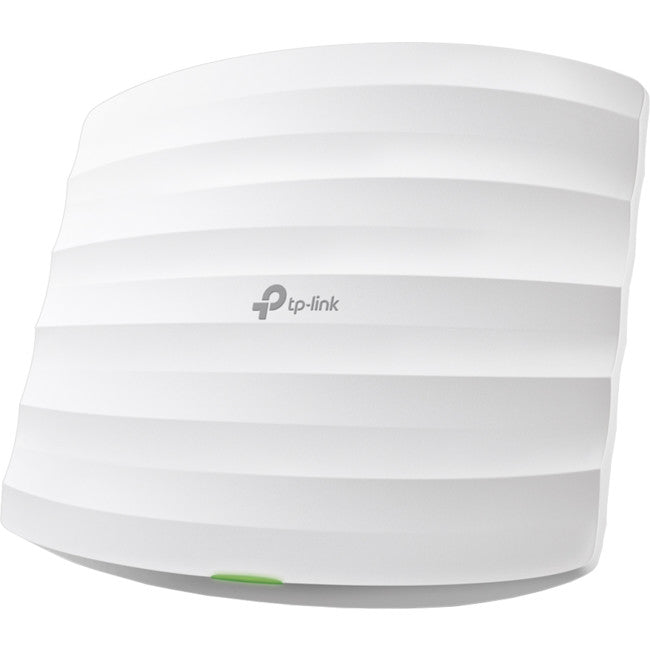

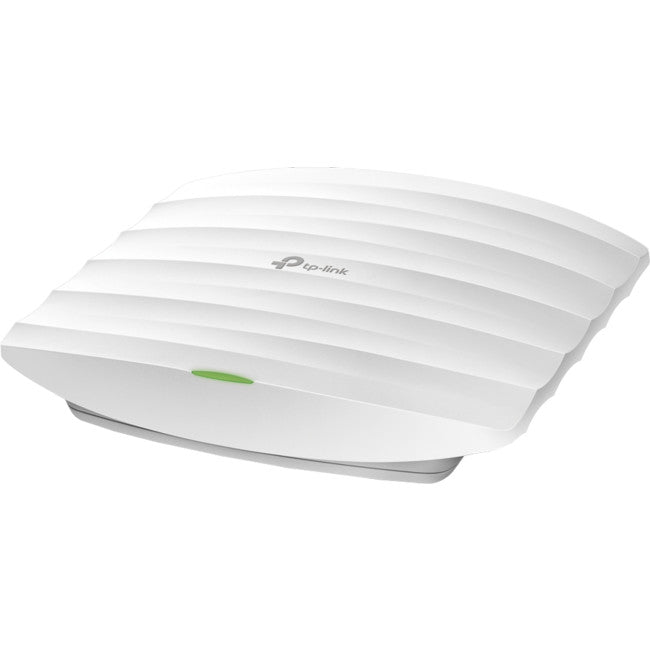

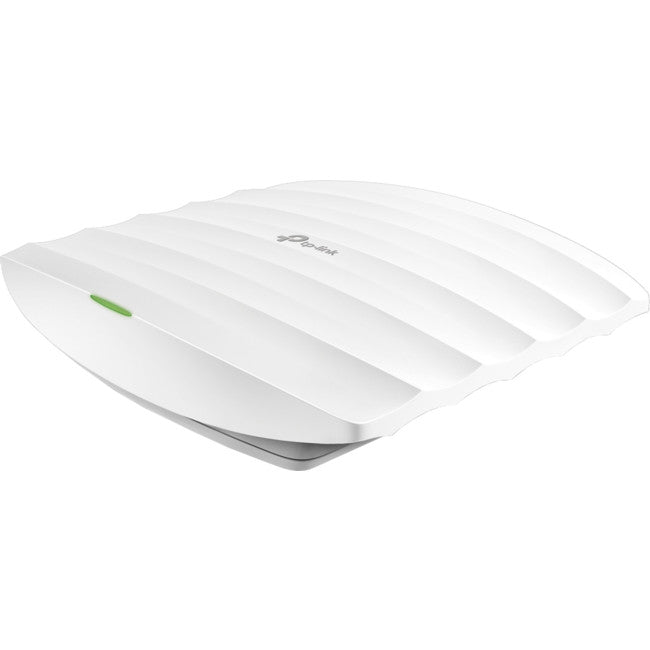

EAP110 N300 WIRELESS CEILING MOUNT AP ACCESS POINT TP-LINK TL-EAP110

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Overview}

300Mbps Wireless N Ceiling Mount Access Point

Flexible Placement with Easy mounting design & PoE
The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 support Passive PoE to make deployment effortless and flexible.

Business Class Wireless with Powerful Hardware
EAP110 features 802.11n Wi-Fi and 2*2 MIMO technology, wireless speeds of up to 300Mbps
With Qualcomm Atheros 560MHz chipsets, EAP ensures incredible wireless coverage and reliability

Free Centralized Management Platform with EAP Controller Software
EAP Controller Software enables users to manage hundreds of TP-LINK’s EAPs simultaneously and easily from PCs in the network, making centralized business Wi-Fi management efficient, visible and more cost-effective like never before.

Efficient Guest Authentication Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Applicable to Multi-user Environment, Designed for Business Performance
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.

{tab Features}
  • EAP Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Passive PoE for convenient and affordable installation
  • Simple mounting design to easily mount to a wall or ceiling
  • 300Mbps wireless data rate for uninterrupted wirelessconnection
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Rate limit on per SSID to restrict the bandwith of each client
  • Access Control restricts or allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to be rebooted automatically within a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Load balance ensures large numbers of users have smooth network experiences in large business networks
  • Compatible with 802.11 b/g/n products
  • Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
  • Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
  • QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priorityover all other traffic
  • Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

{tab Specifications}

HARDWARE FEATURES

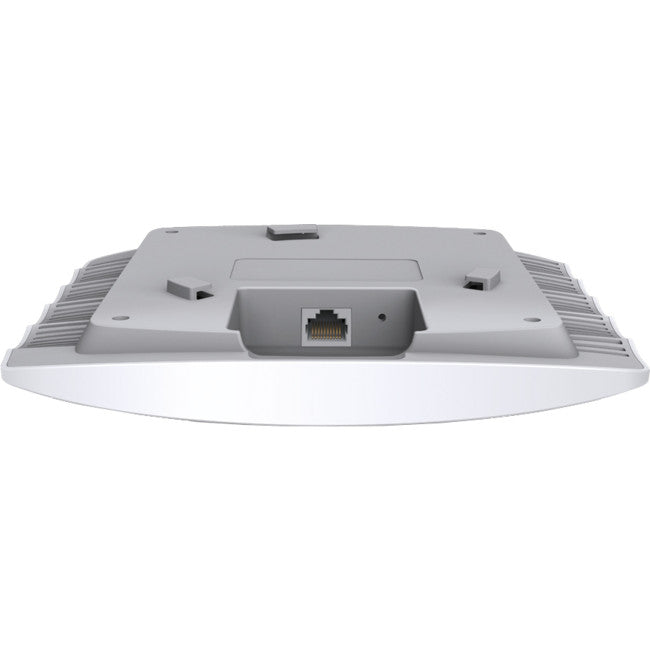

Interface Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Button Reset
Power Supply 24VDC / 1A Passive PoE Supply
Power Consumption 7.7W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK /WPA2-PSK
Transmission Power CE:
<20dBm
FCC:
<26dBm
MANAGEMENT
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Resource CD
Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
