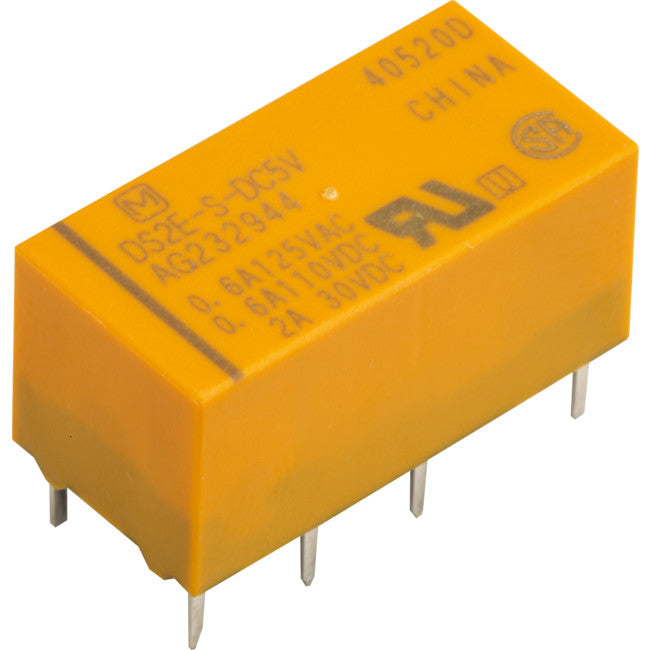

DS2E-S-DC5V 5VDC 2A DPDT 0.2W PCB RELAY PANASONIC DS2E-S-DC5V

The DS2E-S-DC5V is a Miniature Signal Relay with DC coil.

This DS-series signal relay has 2-form-C Ag (Au clad) contacts.

Standard PC board terminal, epoxy resin seals the partsand cut off the external atmosphere, thus enabling use in difficult environments.

High-performance polarized magnetic circuits that utilize the energy of permanent magnets have made it possible to create relays with strong resistance to shock and vibration.

Features

  • Single side stable function
  • Standard polarity type
  • 200mW Nominal operating power
  • Suitable for use in difficult environments
  • DIL terminal array enables use of IC sockets
  • Gold-clad twin contacts ensure high reliability
  • Polarized magnetic circuits realize resistance to shock and vibration

Applications

  • Industrial
  • Communications & Networking
  • Test & Measurement
  • Computers & Computer Peripherals
  • Security
