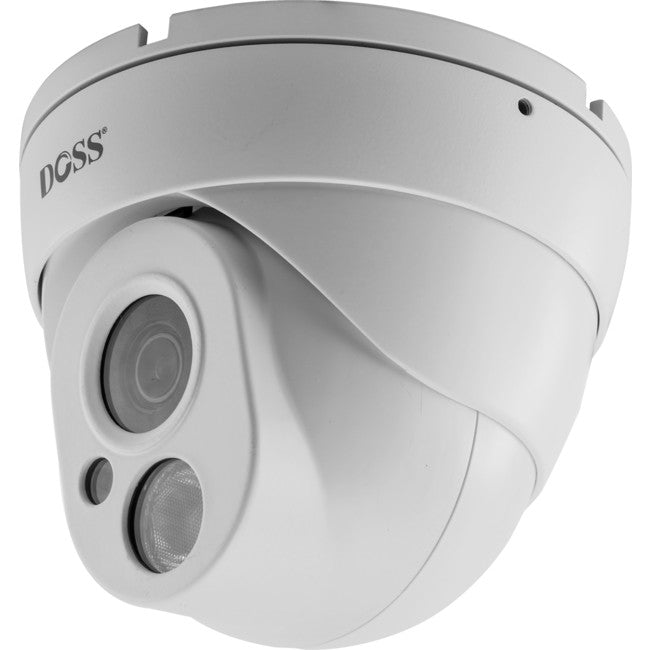

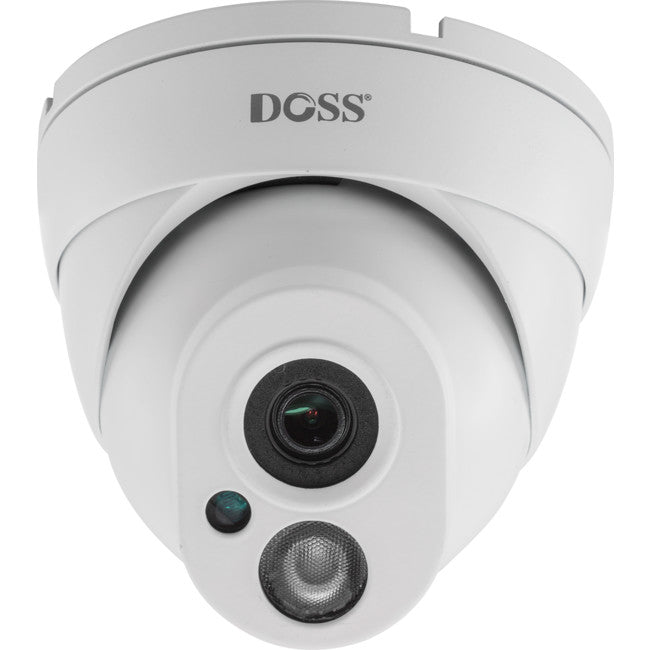

DMM15IPW DOME MINI 15M IR IP CAMERA 3.6MM LENS IP65 POE 1080P DOSS W6138-1IHBB86

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using a conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

Features

  • 1/2.8" Sony 2.43 Mega Pixels low illumination CMOS Sensor
  • H.264 encoding
  • 1080P (Full HD) 1920x1080 resolution
  • Conforms to ONVIF (Open Network Video Interface Forum) protocols, Profile-S/G
  • Supports Power Over Ethernet (PoE)

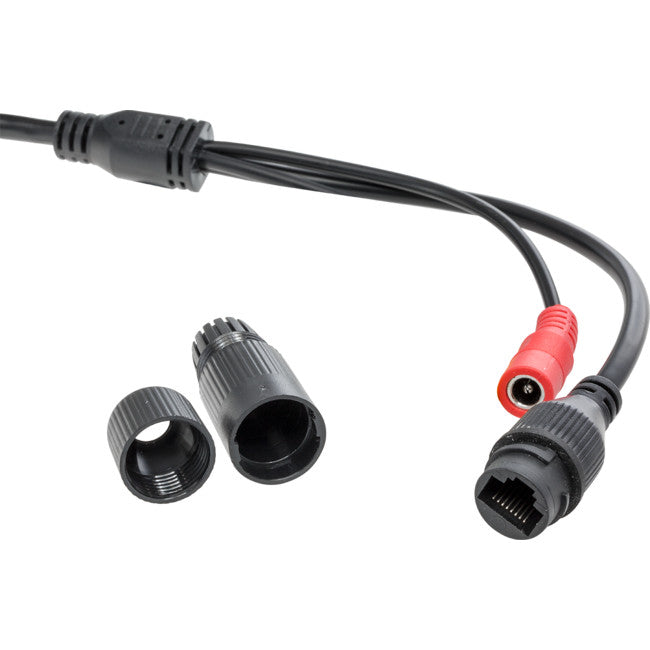

  • Analog BNC output for installers
  • 3.6mm fixed lens provides with approx 83° view
  • 10-15m IR distance / 1x IRIII IR Leds
  • IP65
  • DC12V with PoE
{tab Specifications}
Model DMW15IPW
Camera Sensor 1/2.8" Sony CMOS
Pixel Count 2.43MP
DSP Hi3516C
Resolution 1920x1080
Lens 3.6mm (2MP)
Lens type
(fixed/varifocal:auto/manual)
Fixed
Day/Night ICR
(Infrared Cutfilter Removal)
Auto/B&W/Colour/EXT ICR switching
Approx view angle (Horiz) approx83°
Minimum illumination 0 Lux/F1.4 (IR On)
Electronic shutter Auto/Manual
(1/25 ~ 1/10000)
Encoding Stream 1 resolution Up to
PAL: 1080P/25fps
NTSC: 1080P/30fps
Stream 1 Encoding h.264/MJPEG
Stream 1 Bitrate 16~8000kbps
CBR/ VBR
Stream 2 resolution Up to VGA (640*480)
Stream 2 Encoding h.264/MJPEG
Stream 2 Bitrate 16 ~ 8000kbps
CBR/VBR

Features Analogue output Yes (BNC, CVBS)
IP Rating IP65
IR LEDs 1x IR Array Leds
IR Range 10-15m
Adjustable IR Brightness NO
WDR
ATR/D-WDR
DWDR
Noise Reduction
(none/2D-NR/3D-NR)
3D-NR
Image adjustment
(Brightness/Colour/Sharpness)
Brightness/Sharpness
Image flip(H/V/H+V) H/V/H+V
Privacy zones 4
Motion detection zones 1
Password protection Yes
OSD (Channel/Timestamp) Yes (Channel/Timestamp)
Alarm Video loss/Network loss/Tamper
Power over Ethernet Yes(IEEE 802.3 AF STANDARD)
Networking ONVIF Compliance Profile S (v2.2)
Protocols supported TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPnP, SMTP
Network interface RJ45 10M/100M
Remote viewing Web-browser/Apple/Android
General Operating Conditions ?10°~55°C/0%~90%RH
Power Supply 12V DC/PoE
Power Consumption <6W
Dimensions (DxH) 95x90mm
Weight 0.4kg
