$394.14

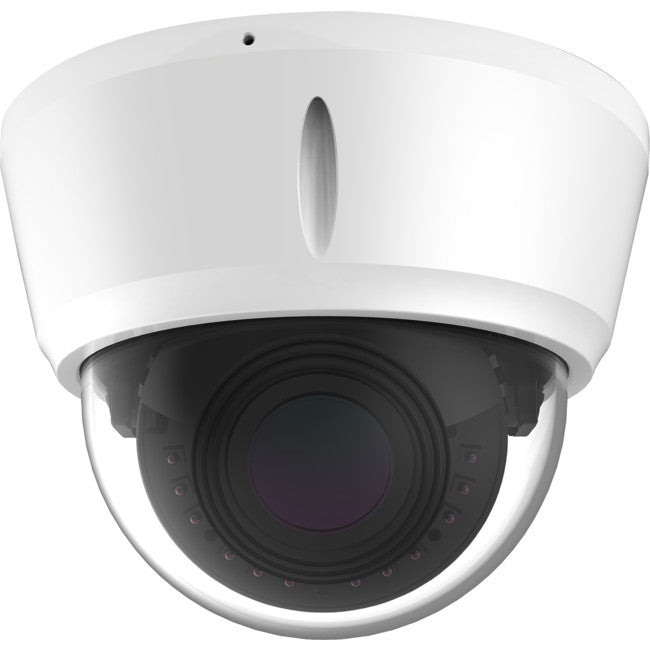

The new Doss cameras are smarter. Real smart. Whether youwant to make sure a particular object has been removed or not or whether you need to know if a fire has started or not, the new Doss IQ range cameras have it all.
Here are some of the intelligent analysis baked into the cameras:
CAMERA | |
Image sensor | 1/2.5" 8MP Progressive scan CMOS |
Min.illumination | 0Lux/F1.4(IR ON)Color:0.1Lux/F1.4,B/W0.05Lux/F1.4 |
IR distance | 20-30M(12* IR leds) |
Electronic shutter | Auto/ Manual(1/25~1/10000),FLK |
Day/ Night | ICR switch, auto, color, B/W, ext |

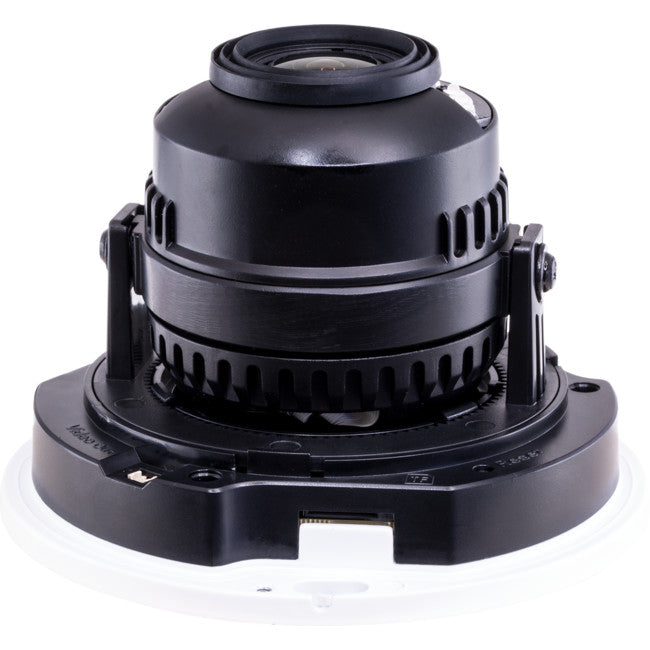

Lens | 3.0-10 mm motorized lens |
Lens interface | F14 |
Output | PAL/ NTSC adjustable |
WDR | WDR (Off/ Low/ Middle/ High) |
Light board control | Auto/ Manual/ Off |
3D N/R | Off/ Low/ Middle/ High/ Higher |
Defog | Off/ Low/ Middle/ High |
Mirror | Off/ Horizontal/ Vertical/ 180’Š rotation/ Corridor mode(90’Š rotation, 270’Š rotation) |
Slow Shutter | Off/ On |
Exposure control | Auto/ Manual |
Image setting | Brightness, Contrast, Saturation, Sharpness, Hue |
AUDIO/VIDEO ENCODING | |
Video compression | H.265/ H.264/ MJPEG |
H.265 Encoding | Main Profile |
H.264 Encoding | Base Line / Main Profile / High Profile |
Encoding features | NTSC: main stream: 3840*2160@30fps, sub-stream: D1@30fps PAL: main stream: 3840*2160@25fps, sub-stream: D1@25fps |
Max. Resolution | 3840*2160 |
Video bit rate | Constant bit rate, variable bit rate(32Kbps~16Mbps) |
Video type | Complex stream/ Video stream |
Audio compression | G.711u |
Audio bit rate | 64Kbps |
Audio control | Support input/ output volume gain control |
ROI | Support 4 zones, multi-stage level |
Watermark function | / |
NETWORK | |
Network protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
Access protocol | ONVIF,GB28181 (optional) |
Browser | Support IE, Chrome, Firefox, Safari |
Video preview meanwhile | 4 |
User permission | User add/modify/delete, permission management |
Safe mode | Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification |
Motion detection | Set detection zone, Multi-level sensitivity can be set |
Tampering alarm | 1 zone |
Privacy Mask | 4 zones |
Intelligent analysis | Target Counting, Area Detection, Left/Lost, Line Crossing |
Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
Multicast function | Support |
ANR | Support,match with NVR |
Mobile surveillance | Support Apple, Android |
Device exception | Support network disconnected, IP conflict, illegal access alarm |
OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
DST | Support |
Snapshot | Support snapshot, snapshot resolution is encodingresolution |
System Upgrade | Support remote upgrade |

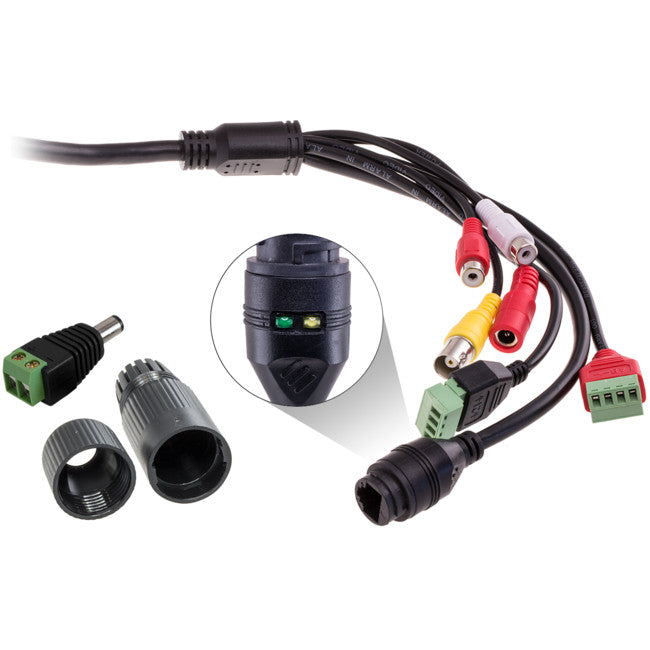

INTERFACE | |
Network Interface | RJ45 10M/100M network adaptive |
Analog video output | 1CH 1.0Vp-p Composite Video Output |
Audio | Line Input/Output |
Alarm input | 2CH |
Alarm output | 1CH |
Reset | Support |
RS485 | Support |
TF card | Support Max 256G, Micro SD(SDHC /SDXC) card local-storage |
Other | / |
GENERAL | |
Operating temperature | -20°C ~ 55°C |
Protection grade | IP66/IK10 |
Power supply | DC12V /AC24V/PoE optional |
PoE | Optional |
Power consumption (max) | <9W |
Dimensions(mm) | 86(H)*F117(L)mm |
