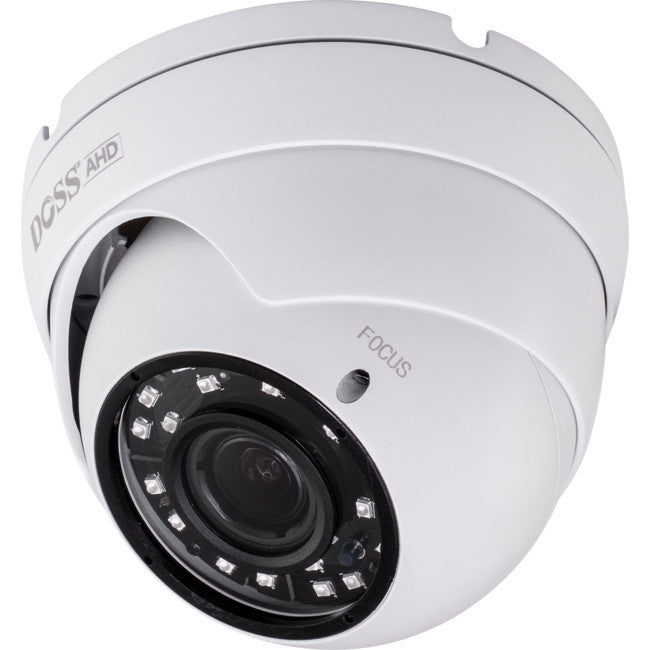

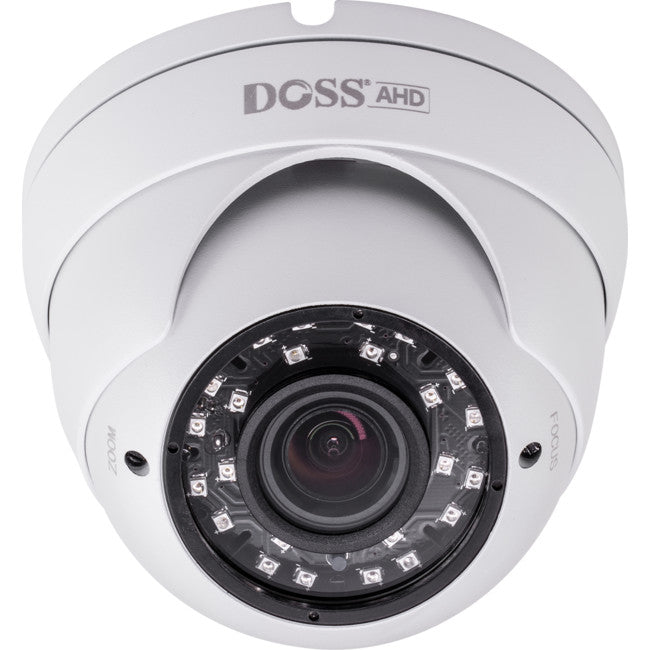

DM30AHDW5MV2 5MP 4 IN 1 AHD CAMERA 2.8-12MM TVI CVI CMOS DOSS 43150307

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

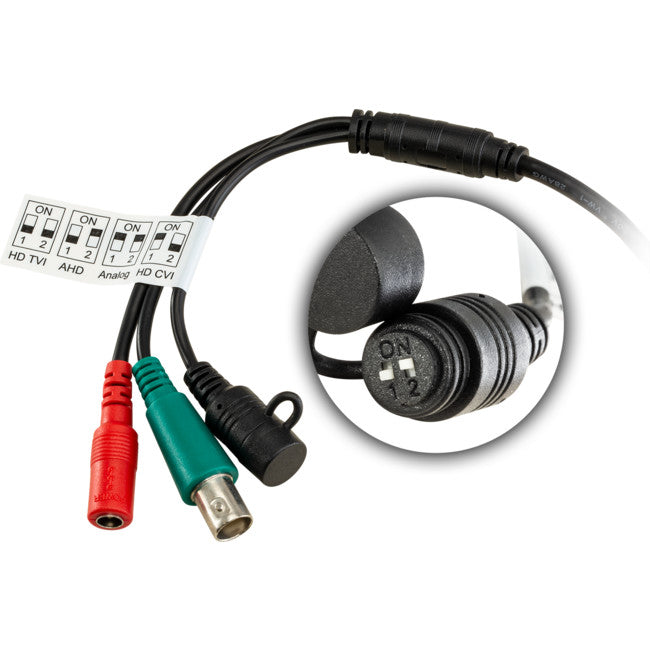

This 4 in 1 AHD, TVI-HD, CVI-HD, CVBS camera is compatible with the Hybrid HD or analog DVR. With the dip switch built-in to the OSD cable, easy to switch to 4 different output modes.

  • Up to 5MP high-resolution video quality
  • Adopt low illumination1/2.7" 5MP CMOS image sensor
  • 2.8-12mm manual varifocal lens
  • IR Distance: 25-30m/24x SMT IR LEDs
  • HD AHD/TVI 5MP@20/12.5fps, 4MP@30/25/15fps, 1080P25/30fps
  • CVBS 960H PAL/NTSC
  • D-WDR, 3D NR supported
  • Auto Day&Night, IR Cut (Infrared-cut) filterS for producing accurate color images
  • IP66 Rating
  • Support UTC Function, OSD menu setting, which includes AE, AWB, Day-Night, Image-Enhancement, Video Output Language, and Reset

{tab Specifications}

Sensor

1/2.7" 5 Megapixel CMOS Sensor

Signal System

NTSC/PAL

Sync. System

Internal Sync.

Effective Pixels

5MP

Horizontal Resolution

2560x1944@20/12.5fps

Lens

2.8-12mm manual varifocal lens

Minimum Illumination

0 Lux (Infrared led ON)

Day/Night

Auto, IR Cut filter

IR Distance

25-30m/24x SMT IR leds

OSD Menu

Support(UTC Coaxial control)

Video Output

HD-AHD/TVI/CVI and CVBS output

S/N Ratio

More than 50dB(AGC OFF)

White Balance

Auto White Balance

Electronic Shutter

1/25-1/50000

Image Adjustment

Contrast, Sharpness, Saturate

Digital WDR

ON/OFF

DNR

3DNR

Weather Proof IP66

Working Temperature

-10°C~50°C

Storage Temperature

-20°C~60°C

Size 120mm (W) x 95mm (H)

Power Requirement

DC12V/2A
