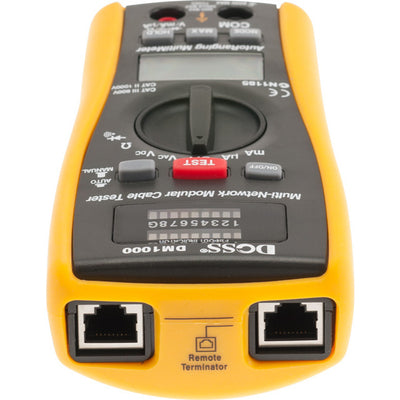

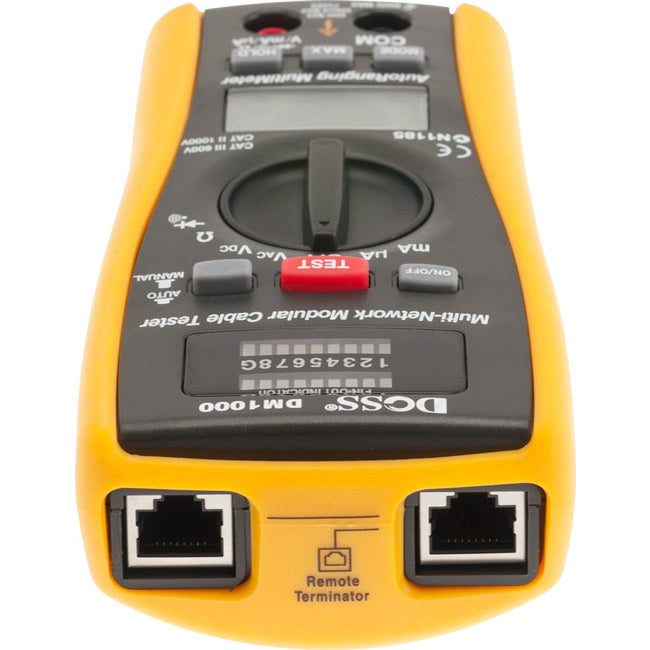

2 in 1 LANtester & multimeter is a innovative that allows the user easy to measure DC/AC Voltage/Current, Resistance, Continuity, diode and verify the cable continuity, open/short, cross-connect. The included remote terminator allows the user to test installed cable either at a wall jack or a patch panel adding up mto value and convenience. Proper use and care of this meter will provide years of reliable service.
Features
- 2-in-1 LANtester & multimeter
- Measures:
- DC/AC voltage
- DC/AC Current
- Resistance
- Continuity
- Diode Forward Voltage
- LAN Cable tester
- 3-1/2 digit (2000 count) LCD display for multimeter functions
- LED displays actual pin configuration of:
- 10BASE-T and 10BASE-02 Thin Ethernet
- FJ45/RJ11
- 258A
- TIA-568a/568b
- Token ring cables
- Double molded housing
- CAT111 600V / CAT11 1000V
- Provides easy to read continuity and fault status display
- Checks for continuity, open wire, grounded wire, shorted pair and crossed pair faults
- Allows for remote testing of installed cables from wall jack or patch panel
- Auto or manual scanning for LAN tester
- Autoranging with auto power off for multimeter functions
Package Contents

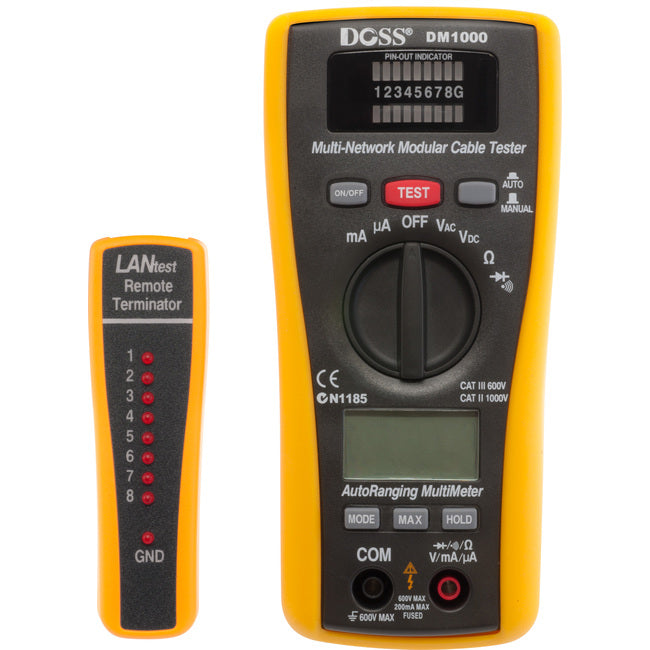

- 1x DOSS DM1000 Multinetwork Modular Cable Tester
- 1x LAN test Remote Terminator

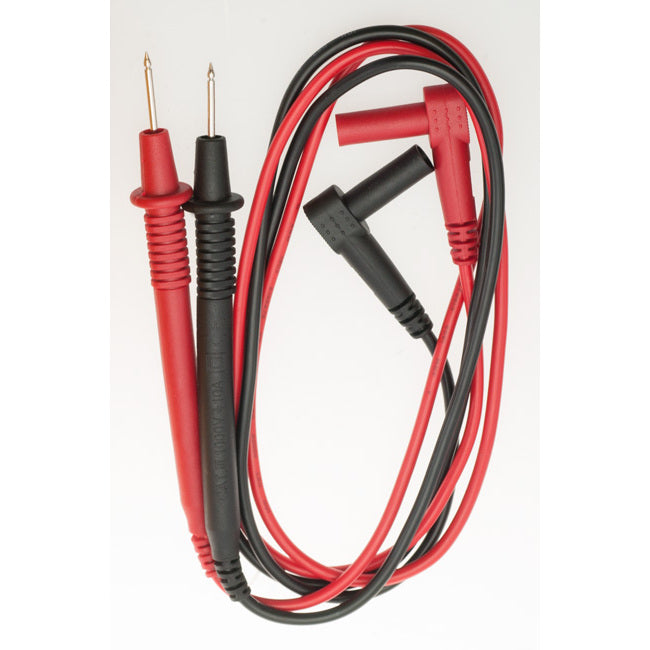

- 1x Set of Test Leads
- 3x RJ11/12 Inserts
- 1x BNC plug to plug Adaptor
- 1x RJ45 Plug to Plug Short Lead
- 2x RJ45 Plug to BNC Socket Short Leads
- 2x AAA Batteries
- 1x 9V Battery

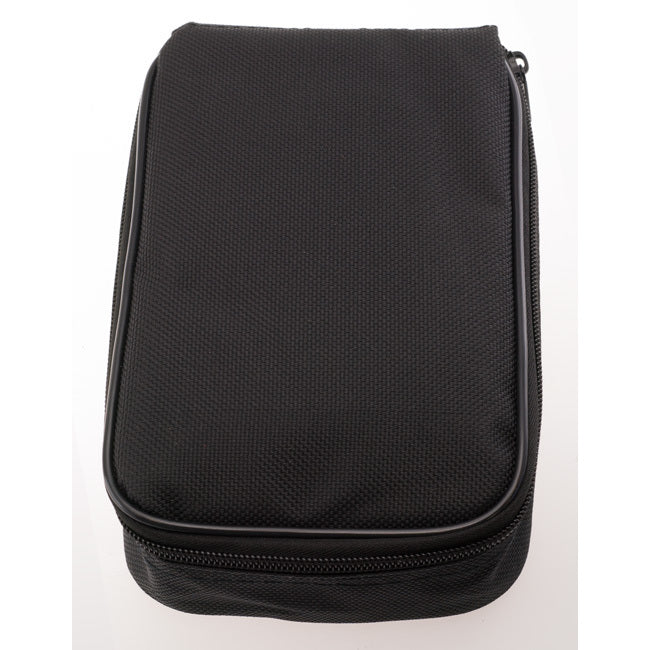

- 1x Carry Case
- 1x User Manual
- 12 Months Australian Warranty
DM1000 Manual
