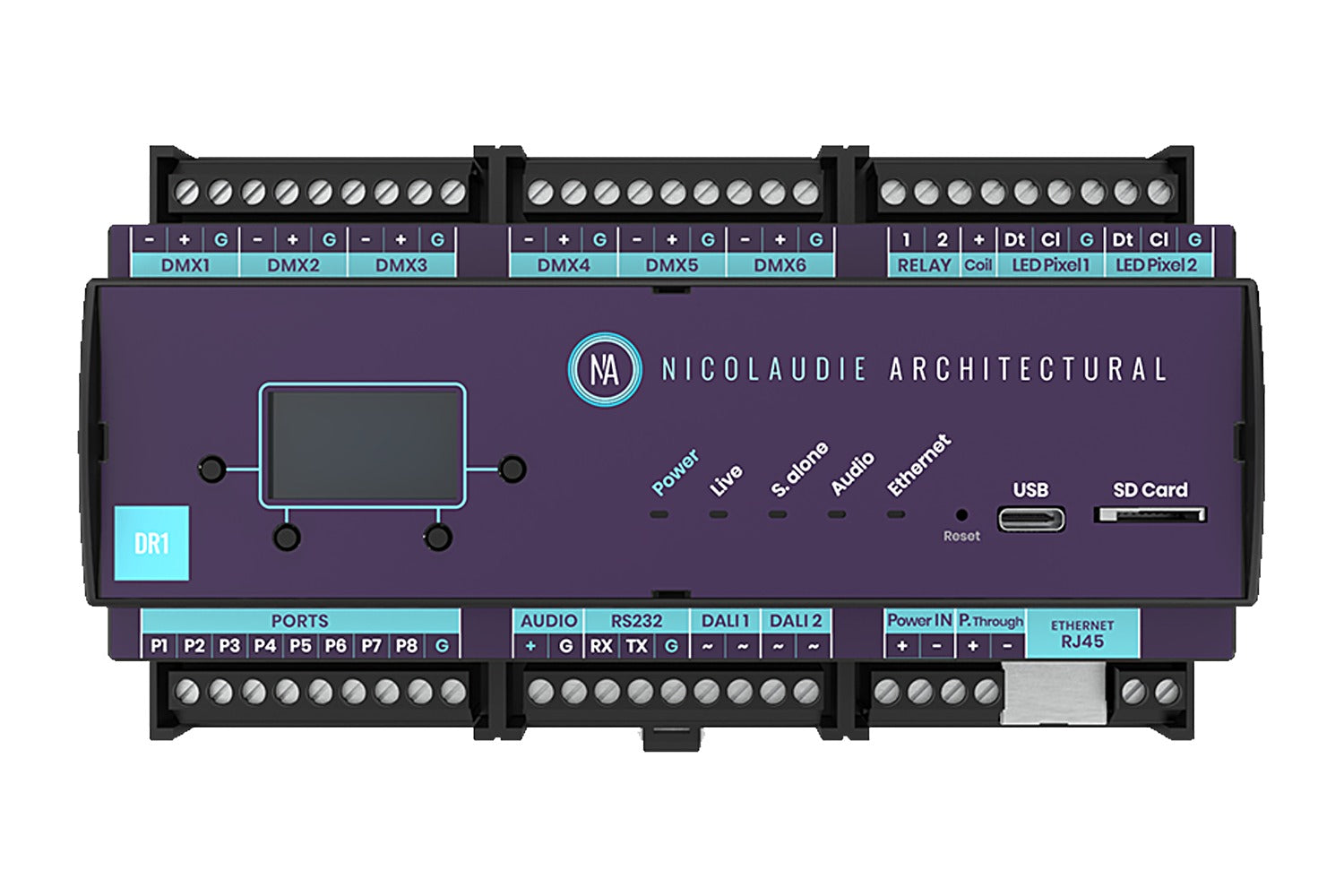

The DINA-DR1 is a lighting controller for the most ambitious of projects, outputting 6 DMX universes (3072 channels) in 20 zones. Trigger lighting scenes using calendar triggers and conditional rules with our New Stand Alone engine, using contact ports, RS232 or over Ethernet. New features will be unlocked in future such as remote management, direct support for LED Pixel tape and DALI. The lighting levels, color and effects can be programmed from a PC, Mac, Android, iPad or iPhone using software from our website.
Key Features
Future features
| Techical Data | |
|---|---|
| Input Power | 12v DC (8-15V range) |
| Output Protocol | DMX512 (x6), eDMX,LED Pixel (SPIx2) |
| Programmability | PC, Mac, Android, iOS |
| Connections | USB-C, Ethernet |

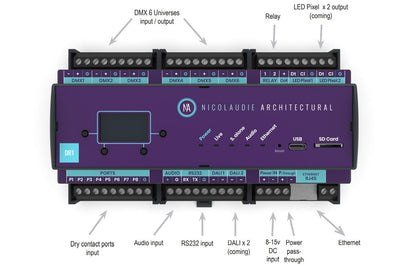

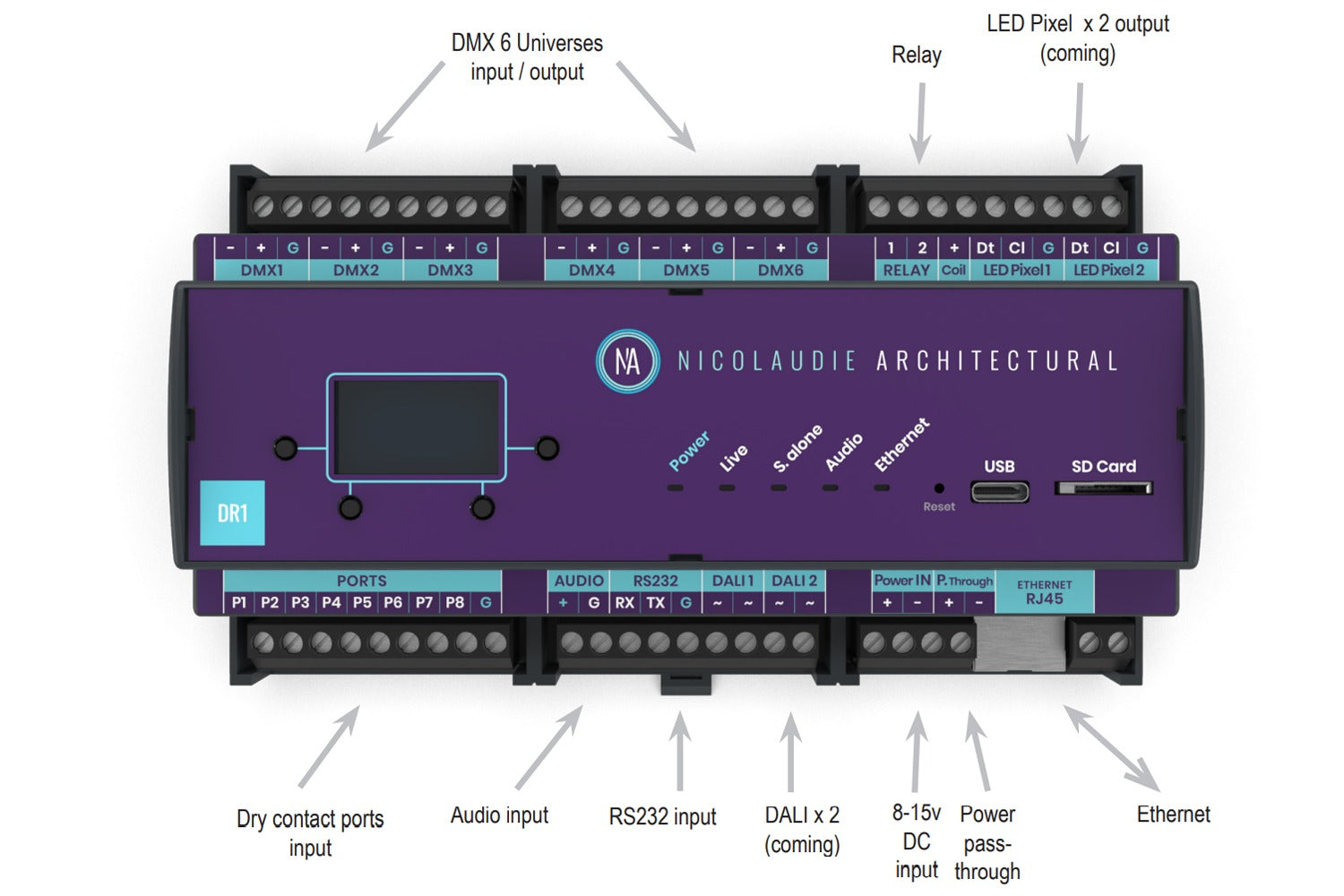

| Screw terminals for | |
| - 6 DMX / RDM Universes | |
| - LED Pixel (coming) | |
| - 2 DALI loops (coming) | |
| - 8 Contact ports | |
| - Relay (coming) | |
| - 12v power-in & p.through | |
| - RS232 scene trigger | |
| - Audio in (sound to light) | |

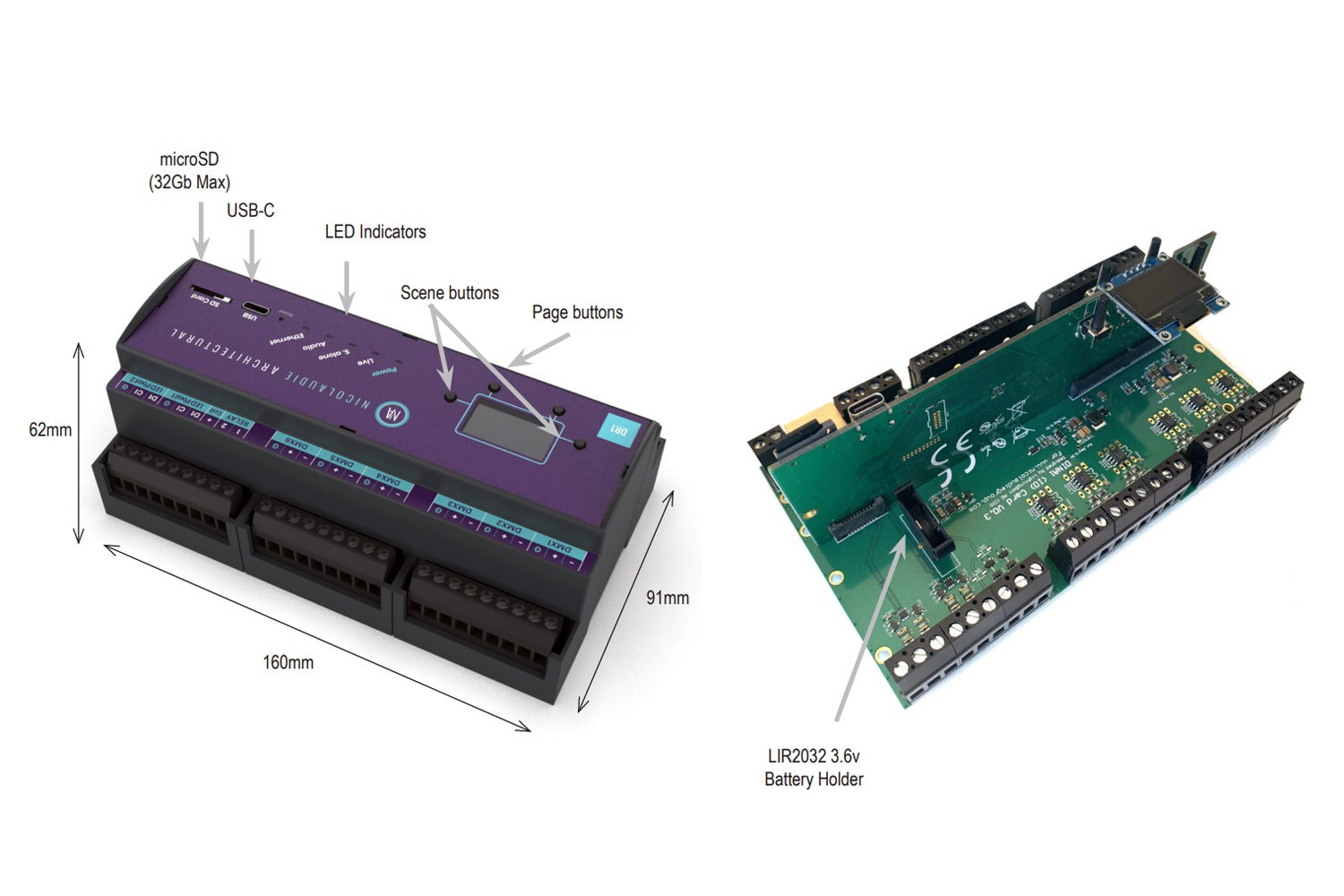

| Battery holder (LIR2032 3.6v), microSD slot | |
| Memory | 16MB flash, SD Card |
| Environment | IP20 |
| Buttons | 2 scene, 2 page, 1 reset |
| Dim / Weight | 160 x 91 x 62 mm 317g |
| OS Requirements | Mac OS X 10.8-10.14 |
| Windows 7/8/10 | |
| Standards | Low voltage, EMC, and RoHS |
