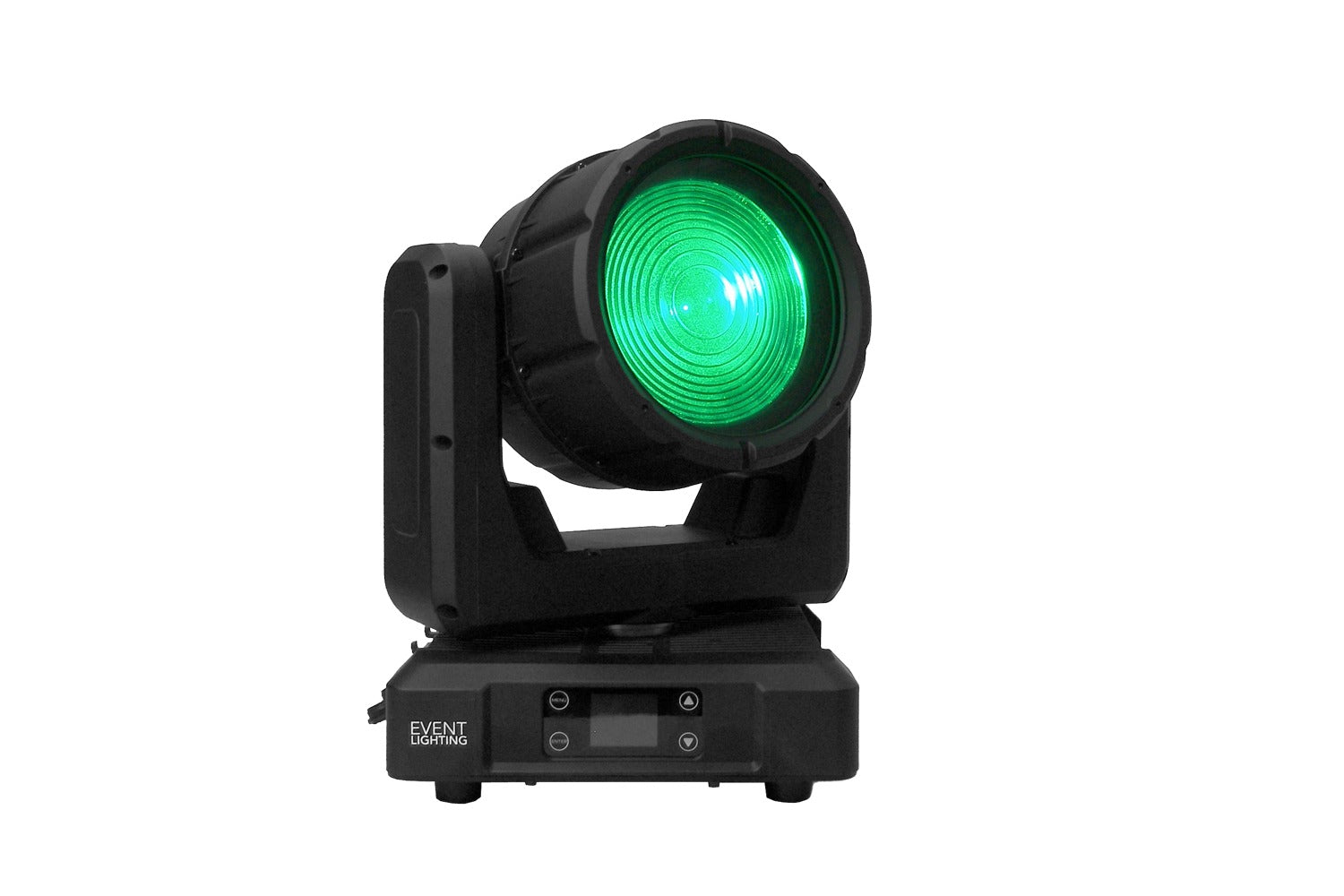

DELUGEM120WFX - IP65 Moving Head Zoom Wash with 120W RGBL + 48 x 1W RGBWW LEDs

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

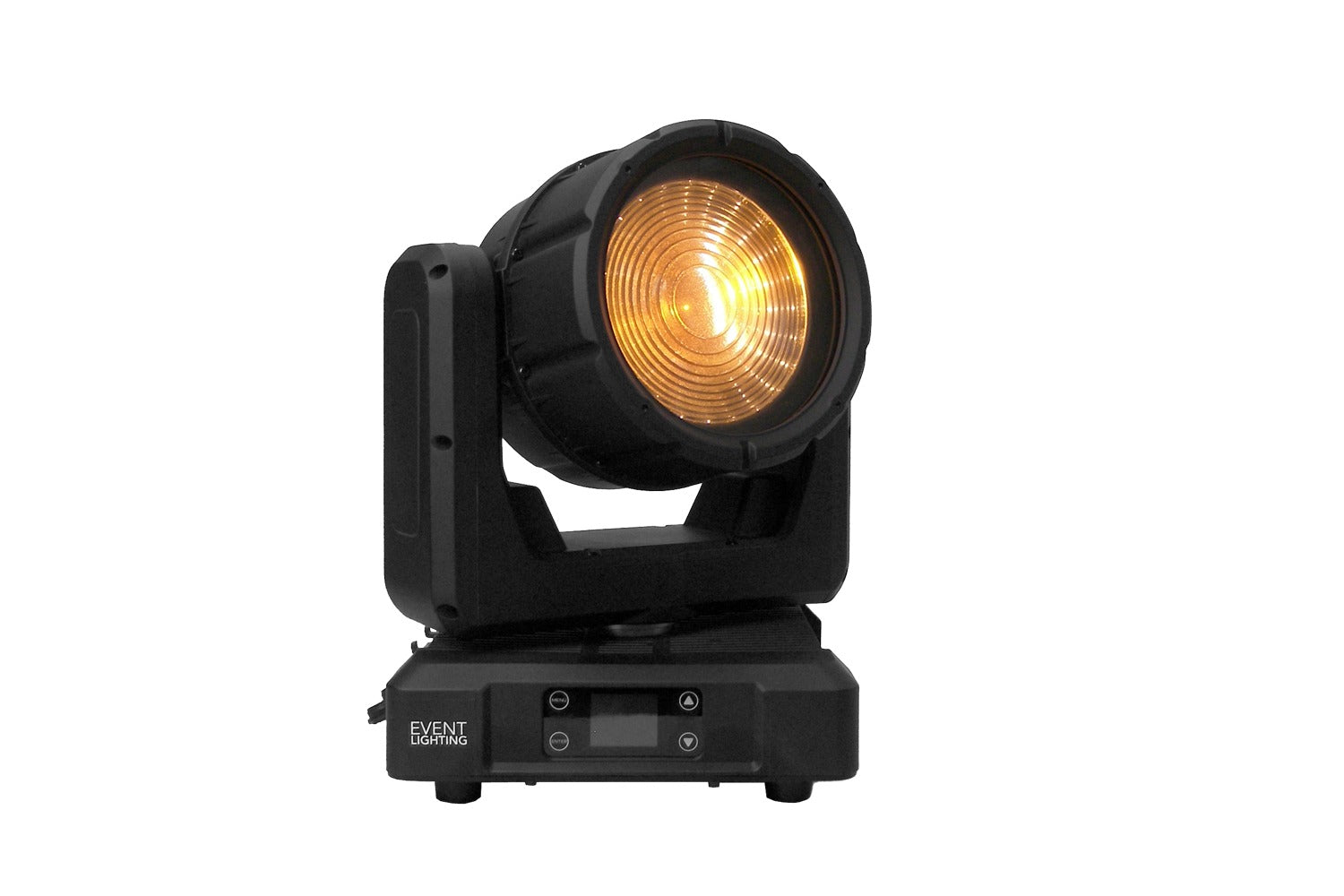

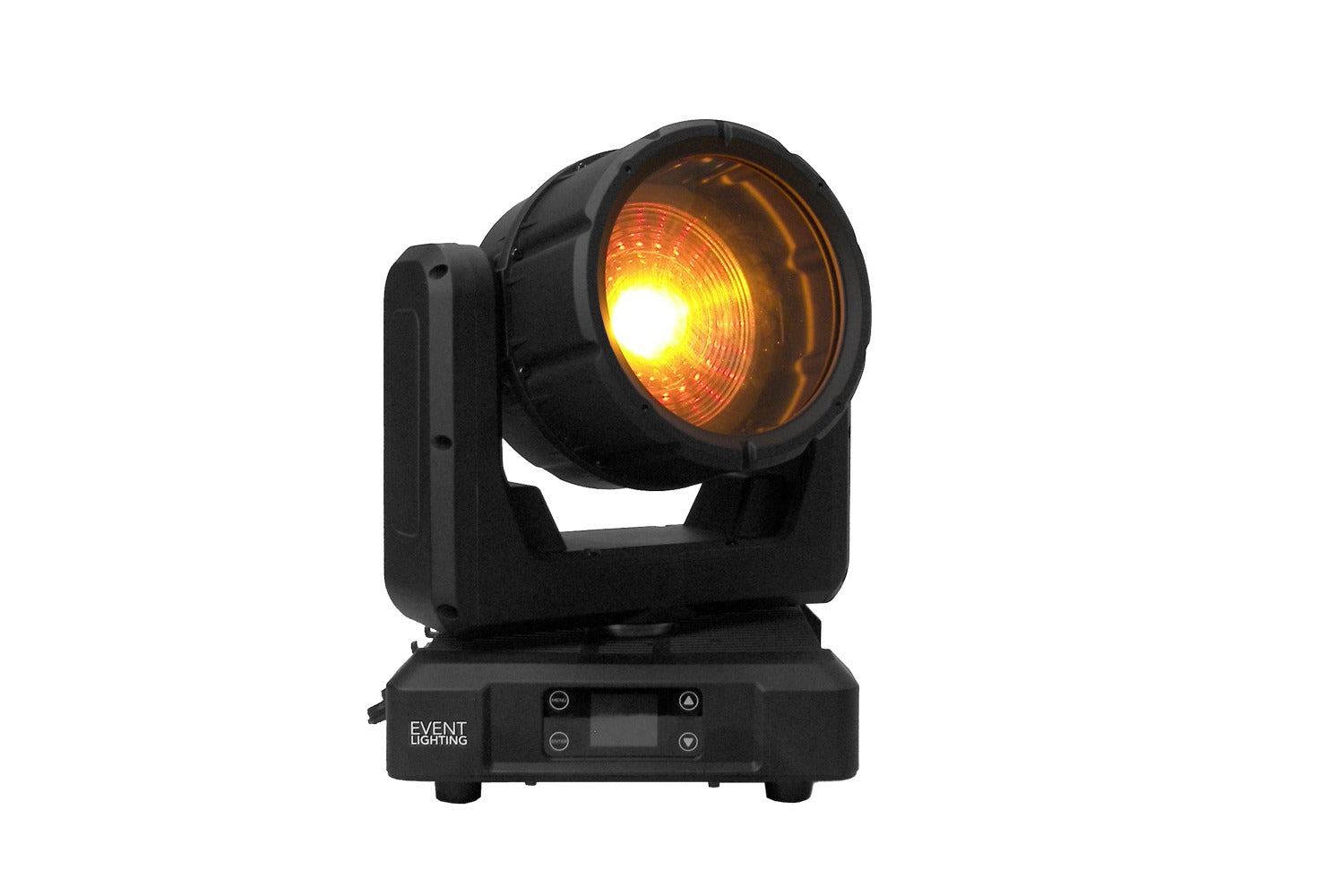

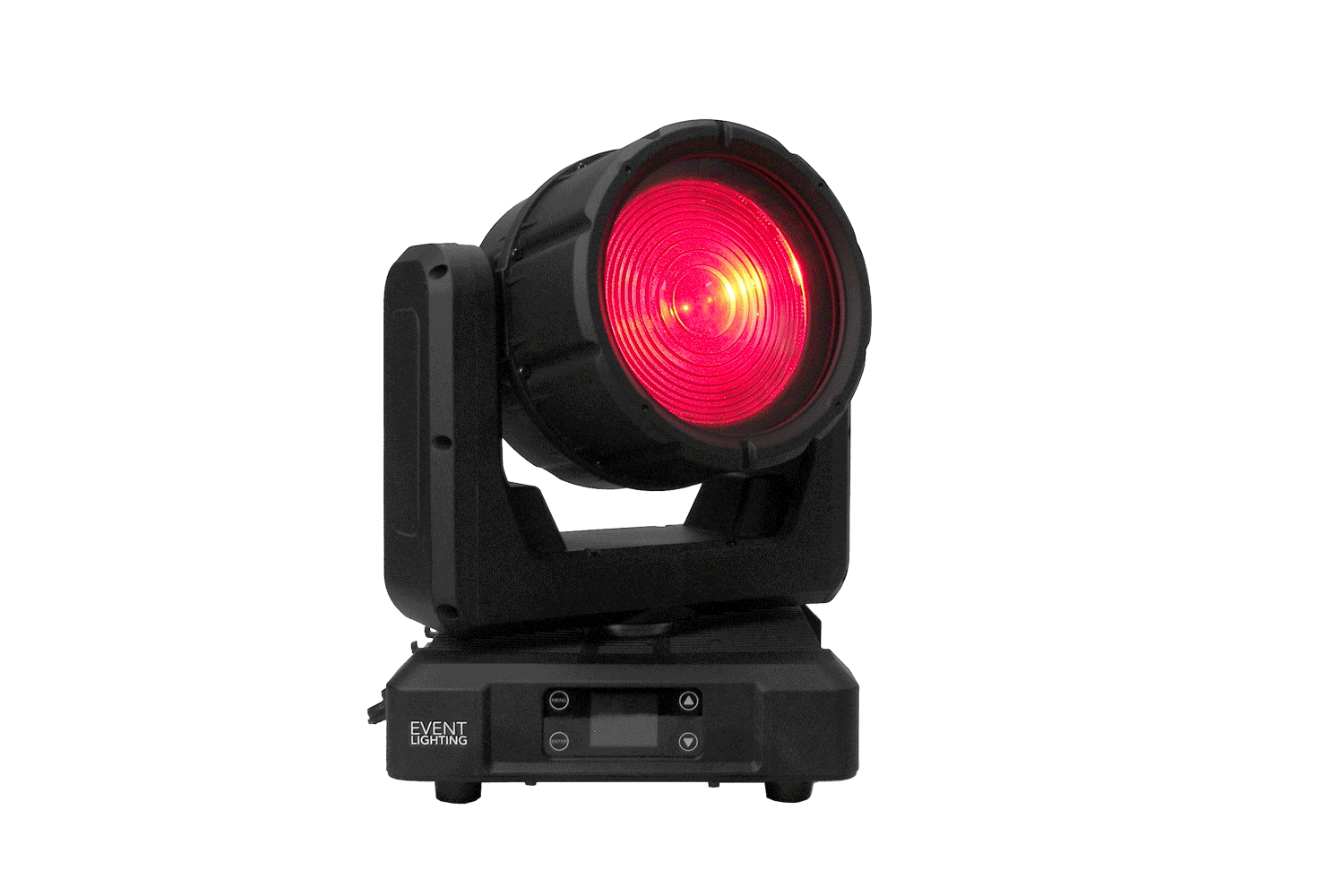

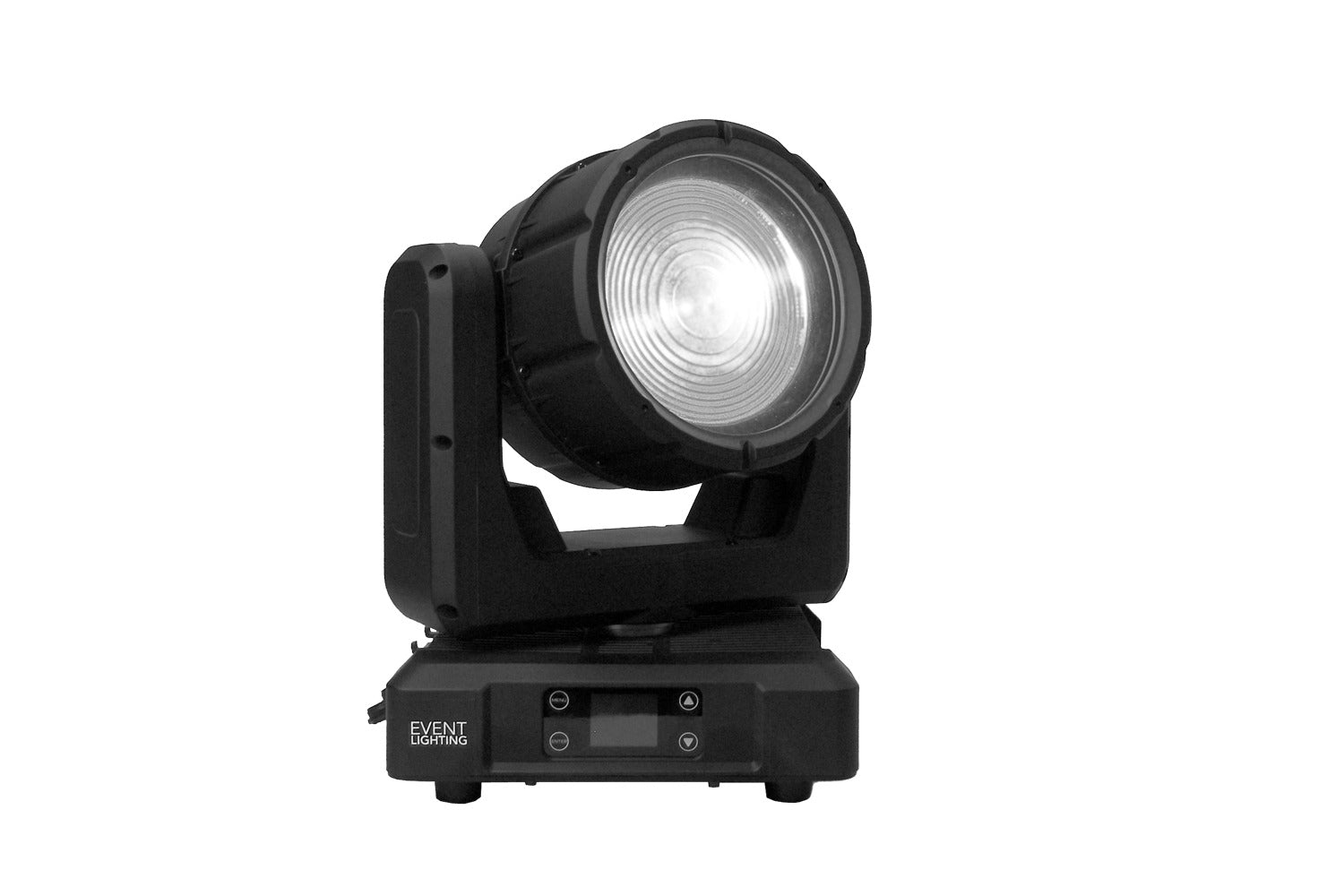

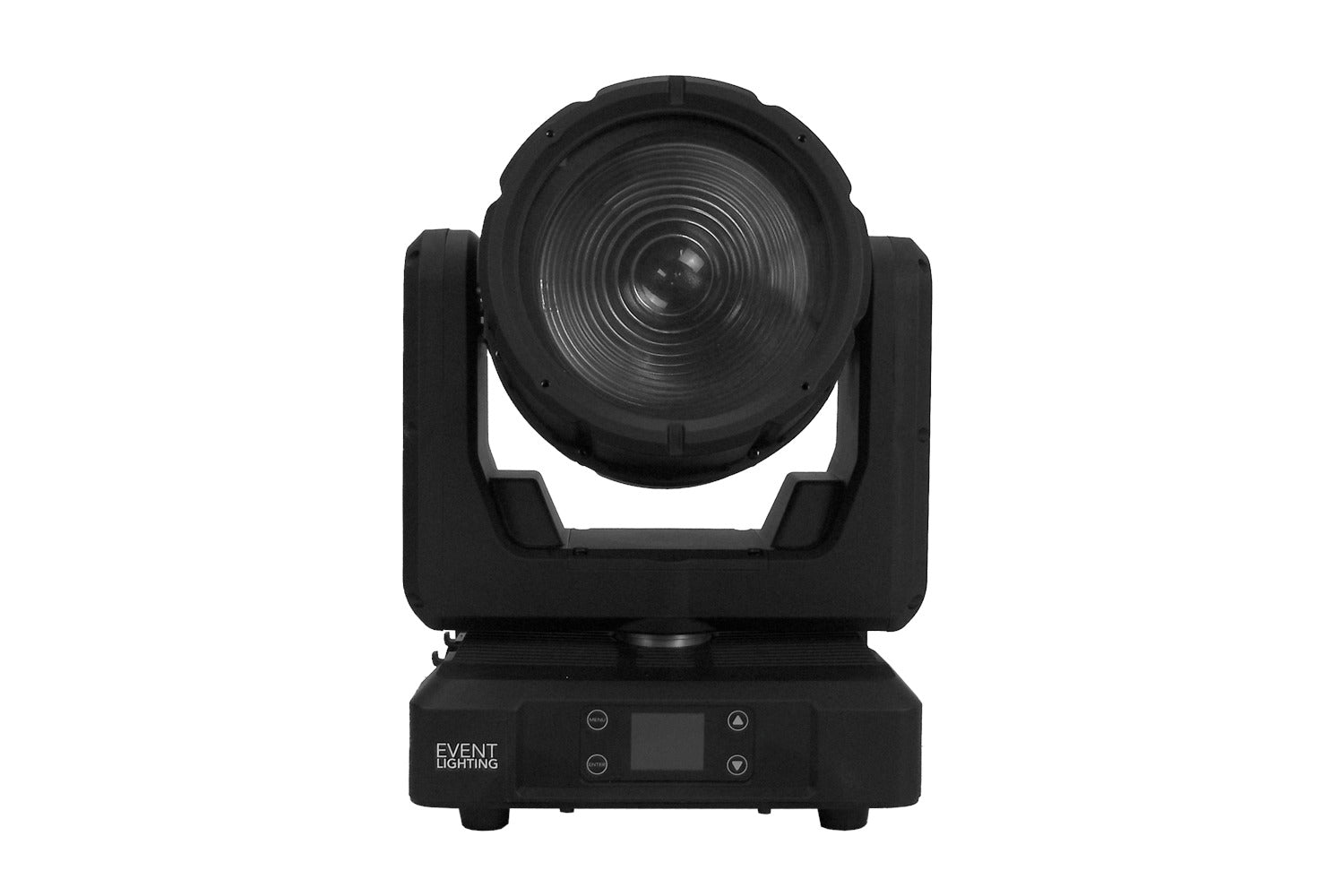

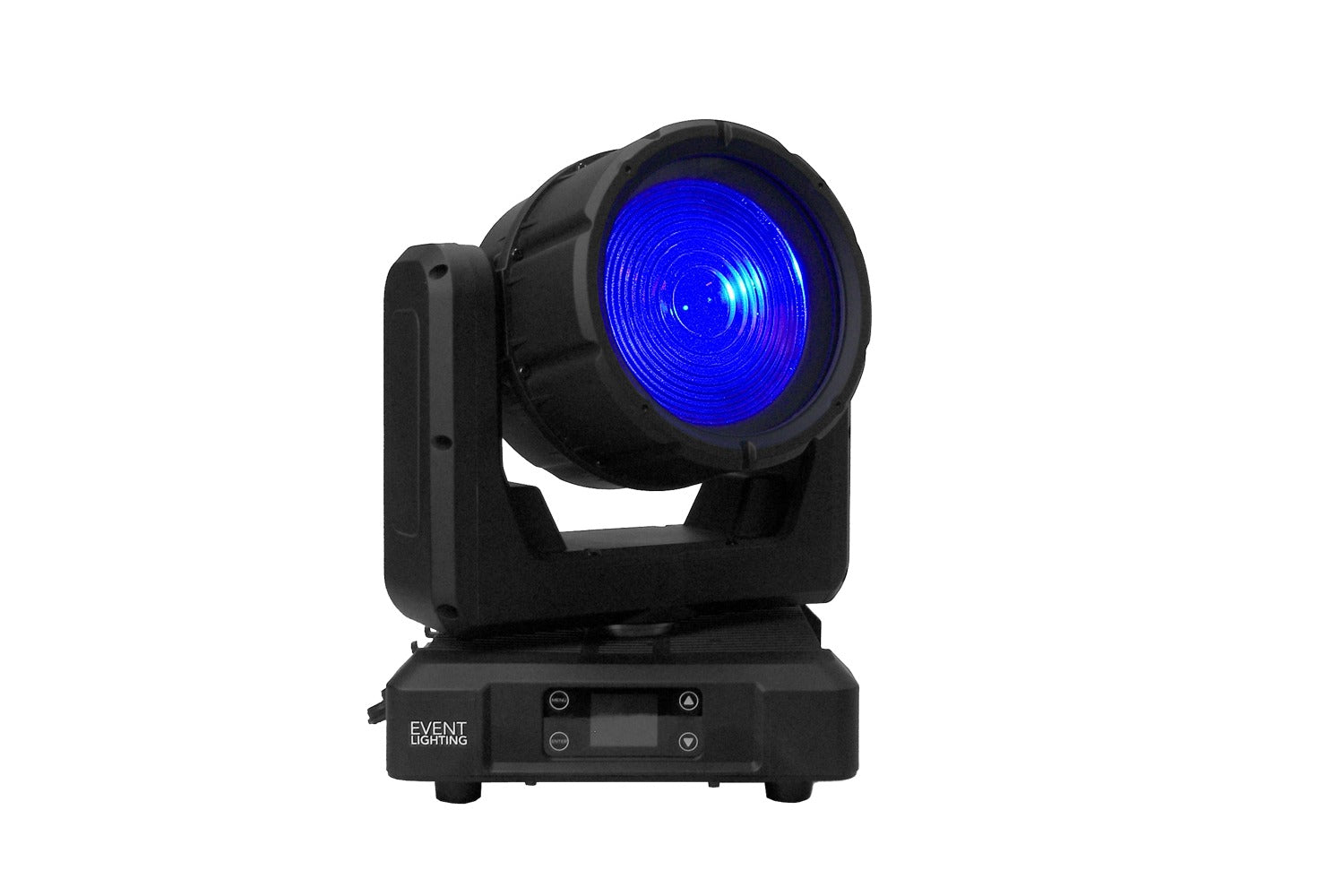

The DELUDEM120WFX is a true outdoor fixture, crafted to defy the weather while creating a memorable and dazzling lightshow. The DELUGEM120WFX delivers a unique combination of wash output and stunning visual effects. This compact fixture features a powerful single 120W RGBL light engine paired with a large 140mm Fresnel lens, ensuring a beautiful, wide wash from 3.8° to 38° via its motorised zoom.

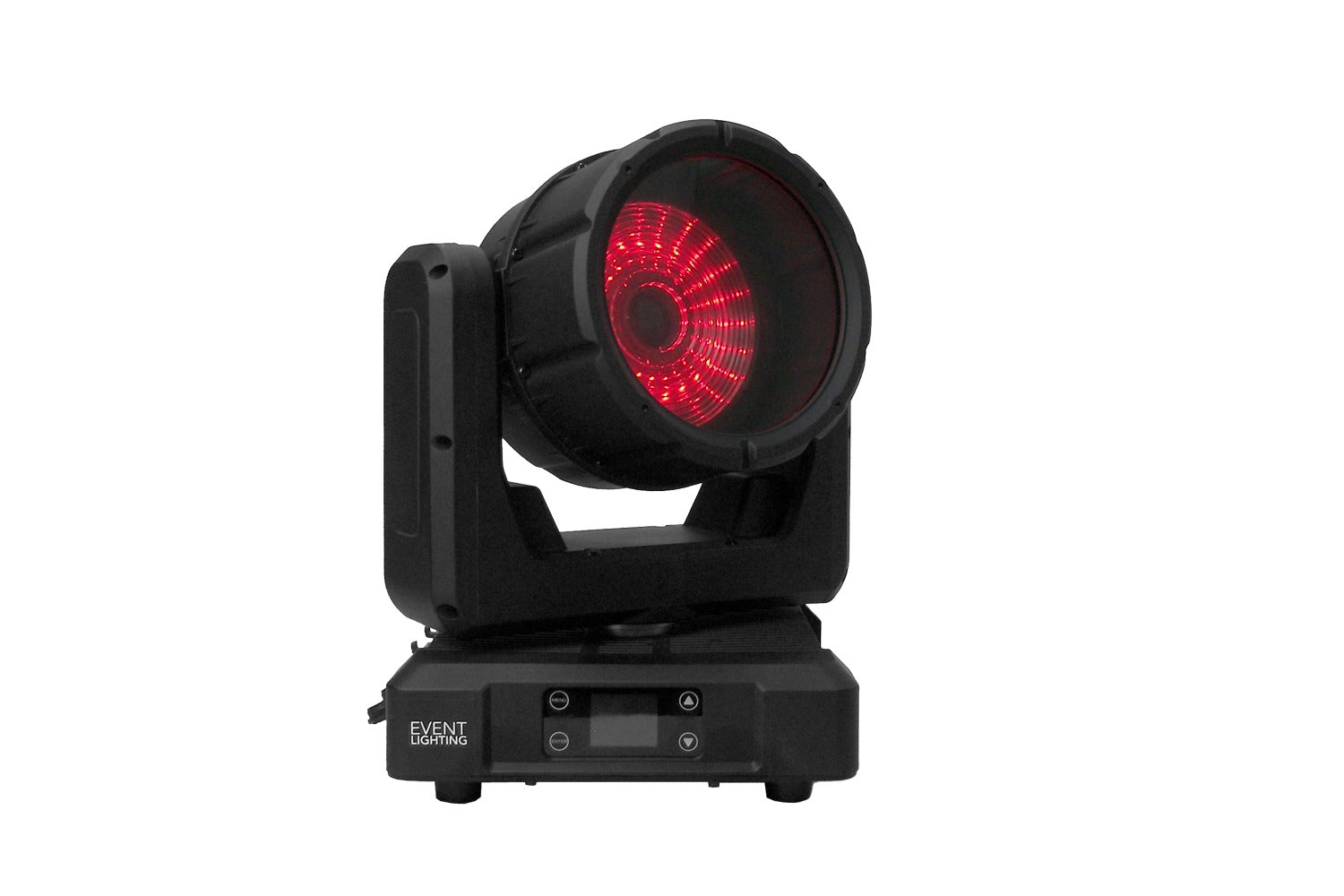

The fixture's dazzling effect comes from the surrounding 48 x 1W RGBWW Aura LEDs, which provide a dazzling eye-candy effect and intricate pixel mapping. The combination of the smooth Fresnel wash and the captivating Aura ring makes the DELUGEM120WFX an essential tool for creating impactful visuals. Control options include 5-pin DMX, ArtNet, and sACN as well as RJ45 connection capabilities, all housed in a highly portable, IP65 rated enclosure.

Specifications:

Photometrics

• Light Source:


  — 1 x 120W RGBL


  — 48 x 1W RGBWW


• Beam Angle: 3.8° - 38°


• Output: 93,750 Lux @ 2m (3.8° Zoom)


• Flicker-free operation


• 140mm Fresnel Lens


• LED Lifespan: 50,000 hours

Effects

• Dimming: 0-100%, 16 bit


• Aura LEDs Effects (RGB LEDs)


• Strobe: Yes


• Zoom: Motorised, 3.8° - 38°

Movement

• Pan: 540°




• Tilt: 230°

Power

• Input Voltage: 100-240V AC, 50/60 Hz


• Power consumption Max.: 180W

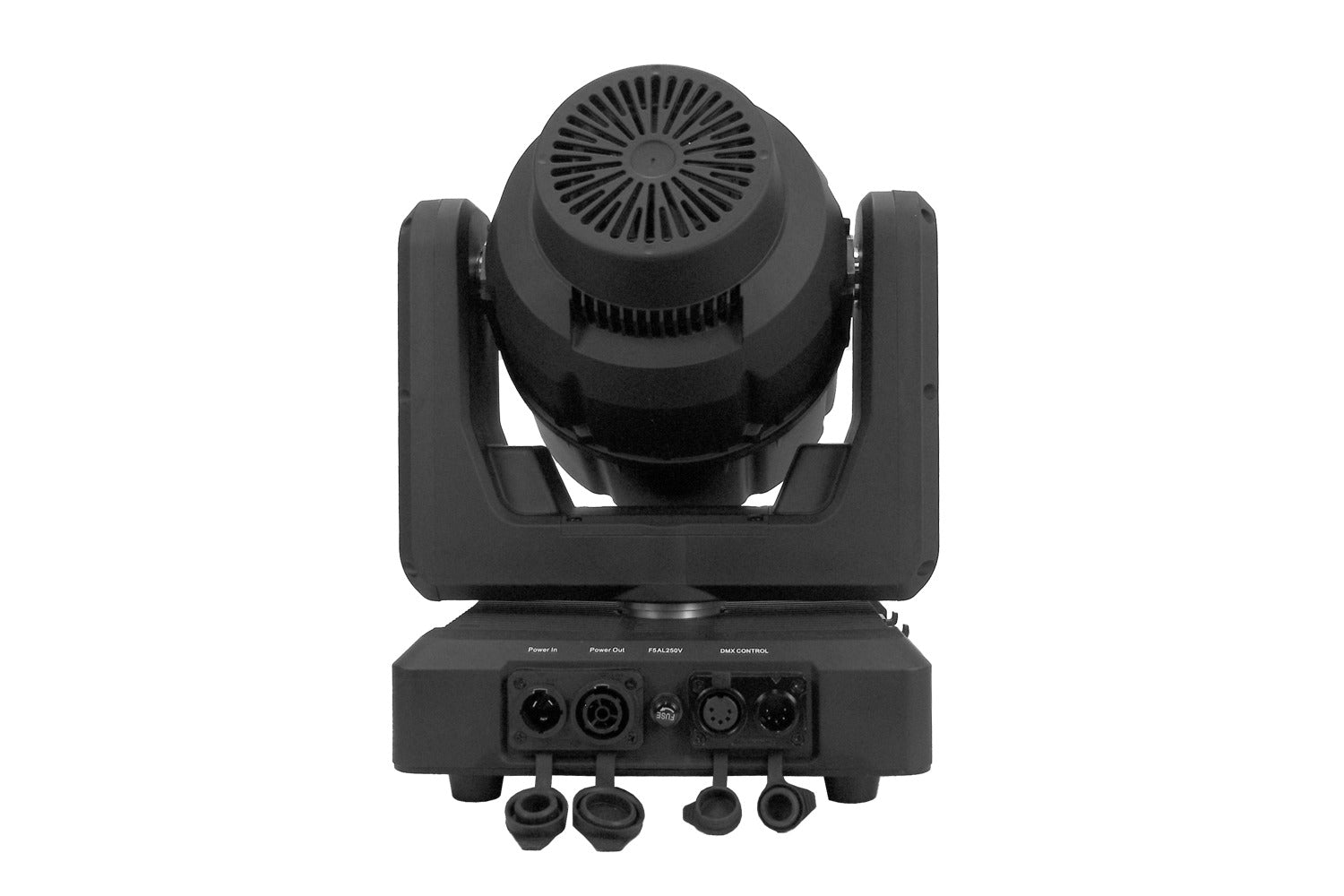

• Connection: IP65 True1 in/out

Control

• Operation Modes: DMX, auto, sound active, master/slave


• Control Protocol: DMX, ArtNet, sACN


• DMX Channels: 20 / 38 / 222

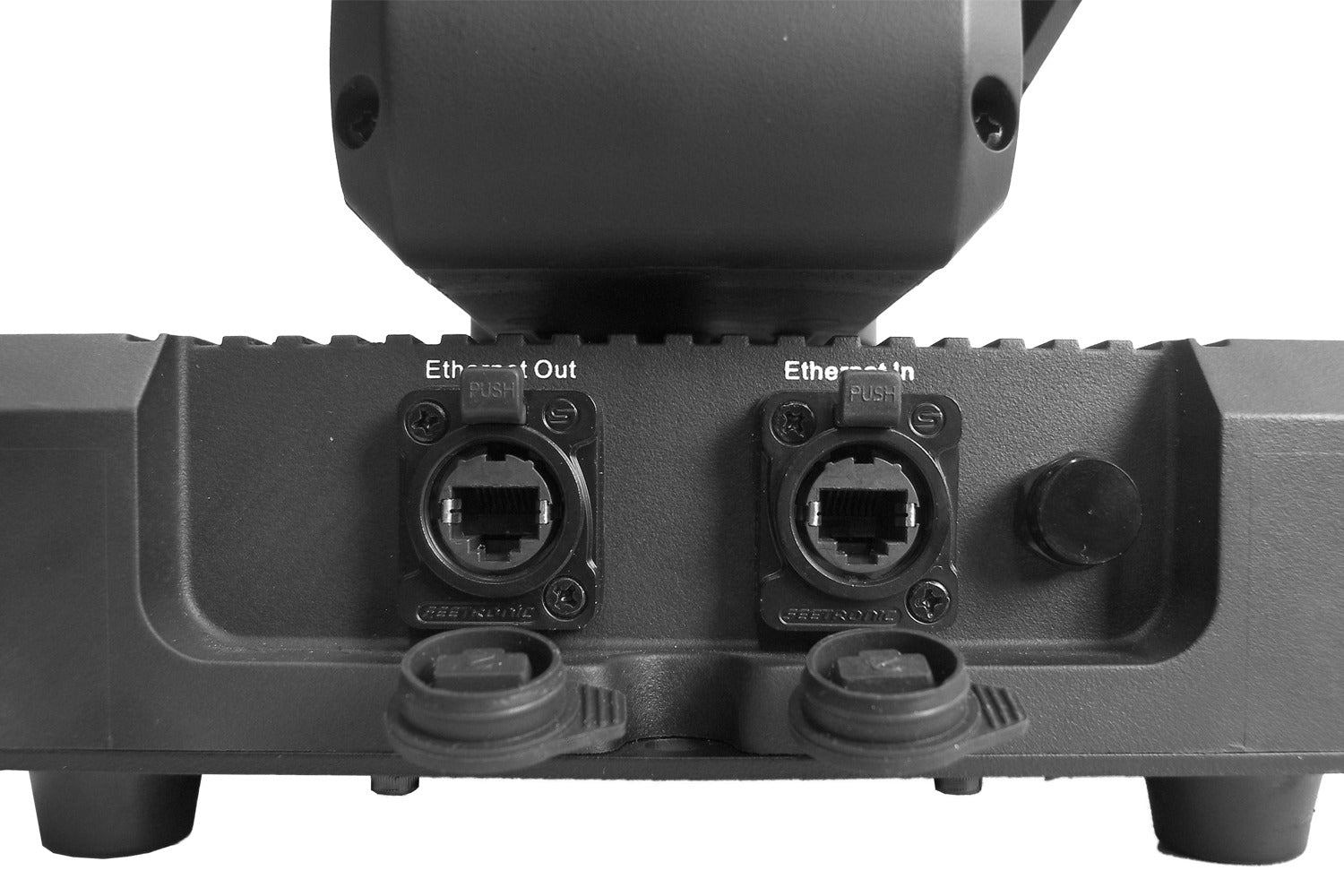

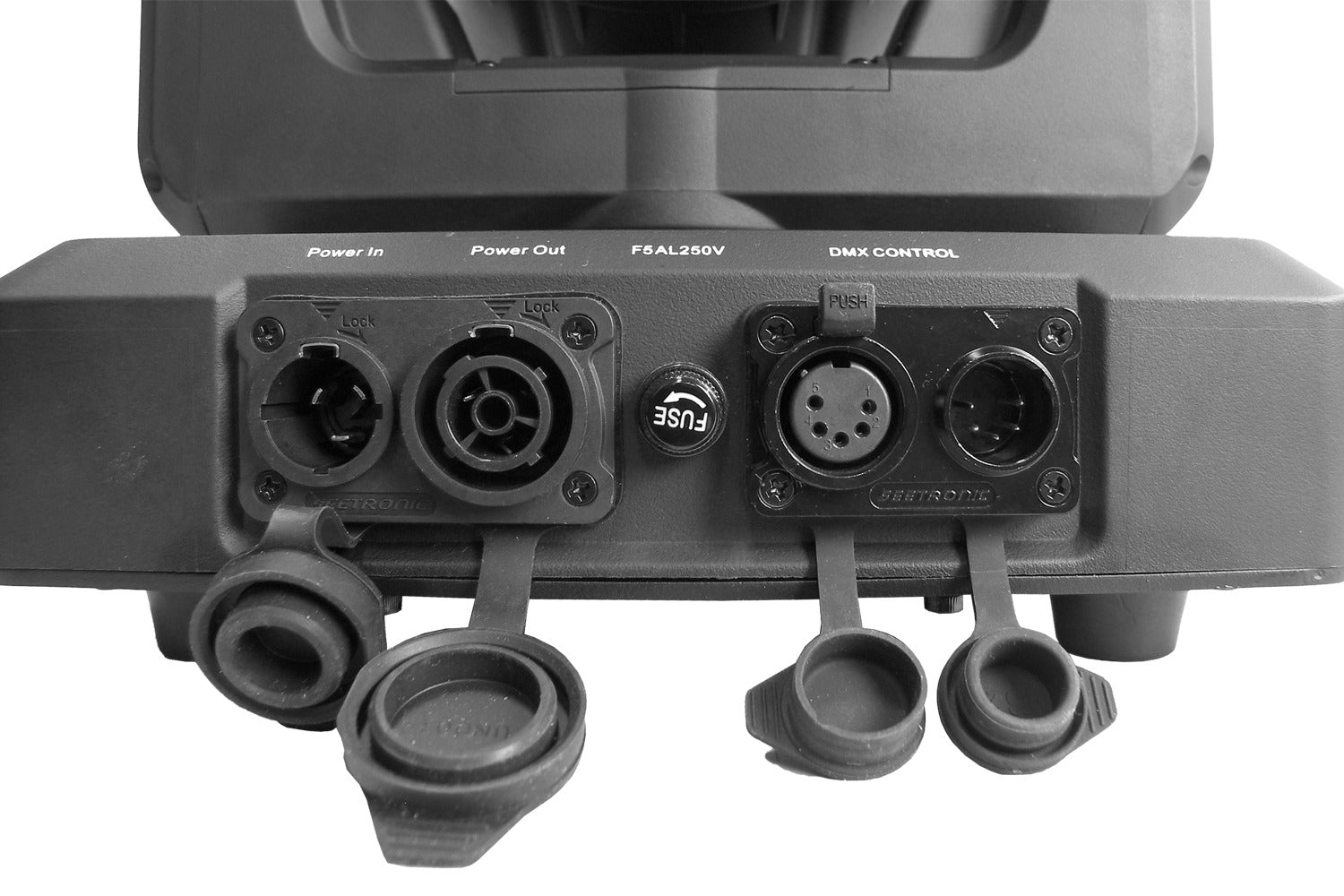

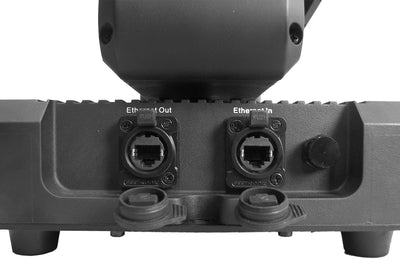

• Control Interface: 5-pin DMX in/out, RJ45 in / out

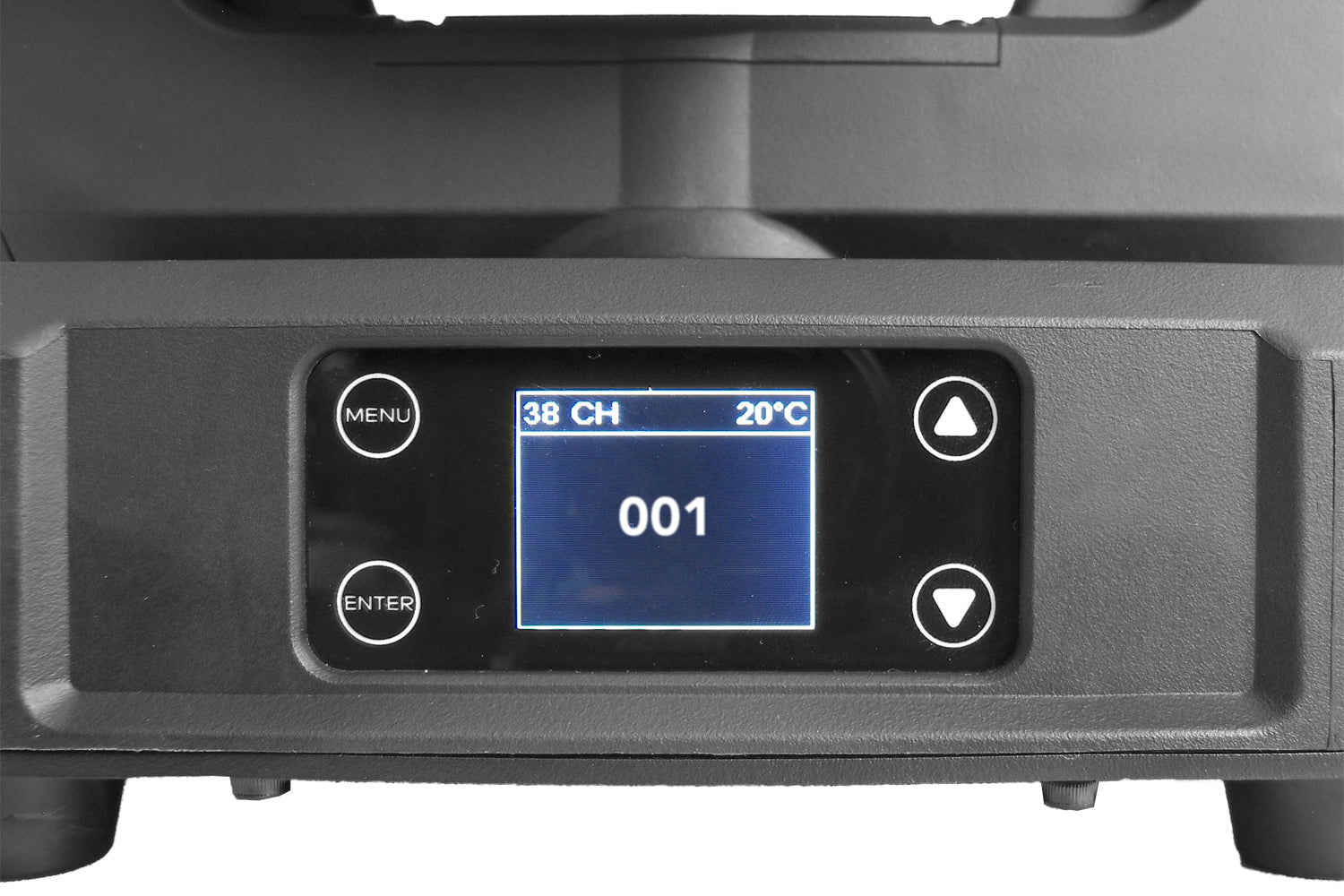

• Display: LCD control panel



Housing

• Housing Materials: ABS and steel, matte black finish


• IP Rate: IP65

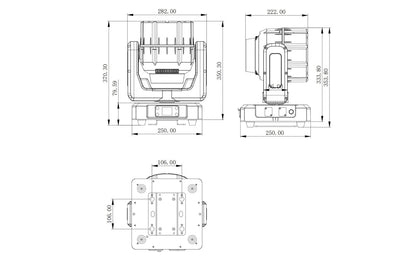

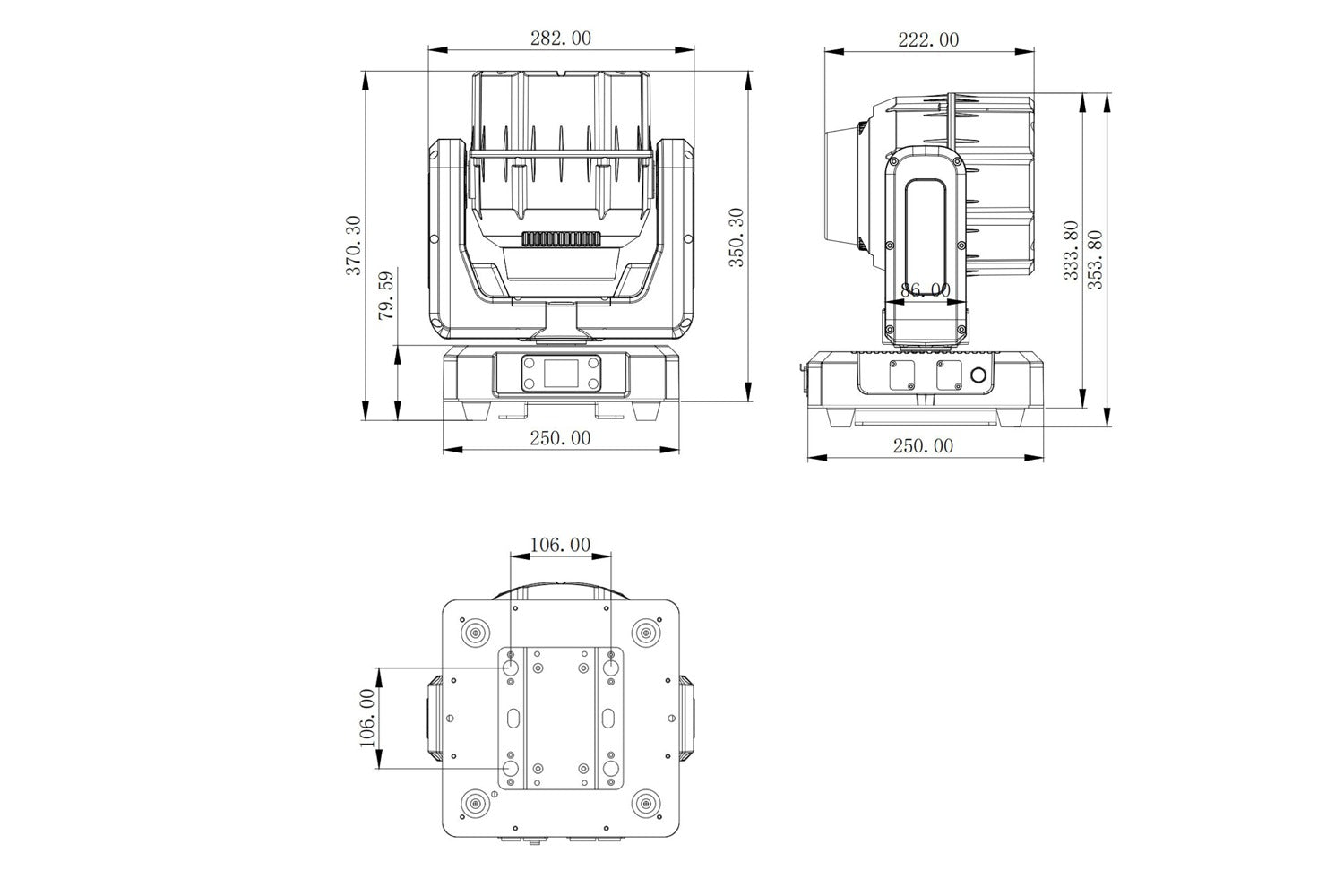

• Size: 282 x 250 x 365 mm 11.1" x 9.8" x 14.4"


• Net Weight: 7 kg / 15 lbs 6.9 oz

Download DMX Chart

Download the User Manual

Warranty: 3 years
