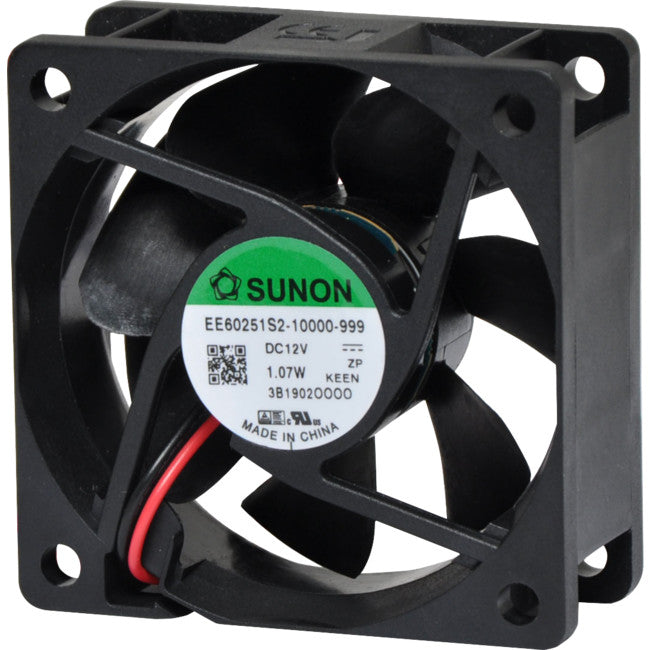

A 12V DC 60mm Sunon Sleeve Bearing Cooling Fan (EE60251S2-000U-999) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon®fans are manufactured to a very high standard and hold CSA and UL listings.
Mechanical Characteristics
- Motor Design:2 phases, 4 poles brushless DC motor
- Bearing System: Lubricated sleeve bearing system
- Frame Material: Thermoplastic PBT of UL94V-0
- Blade Material: Thermoplastic PBT of UL94V-0
- Direction of Rotation:Counter clockwise viewed from the front of the fan blade
- Mounting Holes: 8x 4.3mm holes
- Weight:45g
- Dimensions:60 x 60 x 25mm
Electrical Characteristics
- Rated Voltage:12V DC
- Rated Current:85mA (98mA max)
- Rated Power Consumption:1.02W (1.18W max)
- Safety Power Consumption:1.07W
- Operating Voltage Range:4.5~13.8V DC
- Starting Voltage:4.5V DC (25°C Power On/Off)
- Operating Temperature: -10°C ~ +70°C
- Storage Temperature:-40°C ~ +70°C
Performance Characteristics
- Rated Speed:3800 RPM ±15% at rated voltage
- Air Flow:19.3 CFM
- Static Pressure:0.15 Inch-H2O
- Noise Level:22.0dB(A)
- Insulation Class:UL Class A
- Insulation Resistance:10MΩ at 500V DC between internal stator and lead wire (+)
- Dielectric Strength:500V AC for once minute or 600V AC for 2 seconds between housing and lead wire (+)
- Life Expectancy:35,000 hours at 40°C, 65% RH, 90% CL
