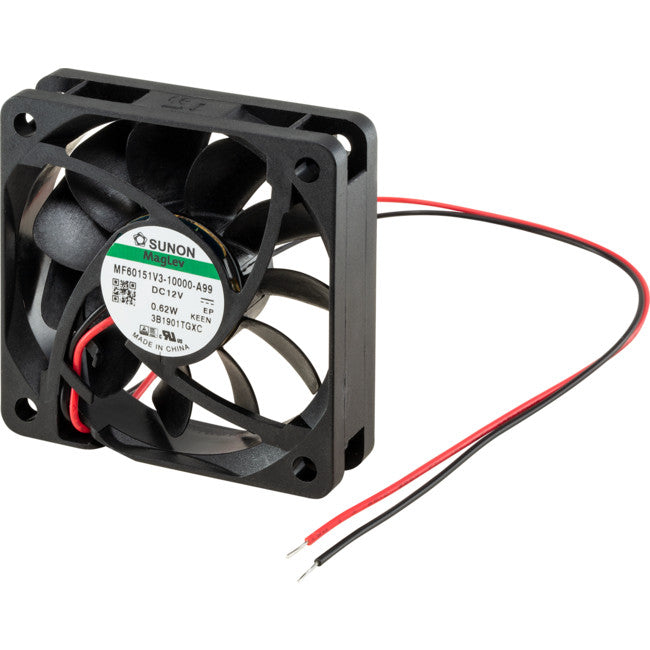

DC601512DRM 12V DC 60MM DUST RESISTANT MAGLEV VAPO FAN SUNON SUNON MF60151V3-A99

Sunon 12V 60mm X 60mm X 15mm DR MagLev Motor Fan Vapo Bearing

SUNON DR (Dust Resistant) MagLev Motor Fan uses the MagLev technology with new design features to increase dust-resistance and prevent oil leakage.

Features

  • Better oil leak prevention. DR MagLev's one-piece structure with the B&S (Blanked & Seamless) Technology and S&C (Seal & Clip) Design provides the best prevention of oil leakage.
  • Better dust-resistance. The innovative S&C (Seal & Clip) Design provides the best resistance to dust invasion.
  • Higher reliability. The S&C (Seal & Clip) Design can prevent the stator and impeller from falling offand help reduce noise that is caused by stator and impellermovement after a period of usage. The design greatly improves the life expectancy and the reliability.
  • Longer life expectancy. Comparing the life expectancy of DR MagLev Motor design with other bearing systems, the life expectancy of the Precise VAPO bearing performs similar to 2 Ball bearing and therefore meets the customer's requirements for continuous fan operation.



Model

P/N

Size

Bearing


Description: http://portal.sunon.com.tw/images/sunon/mkci/products/BALL.gifBALL
Description: http://portal.sunon.com.tw/images/sunon/mkci/products/VAPO.gifVAPO
Description: http://portal.sunon.com.tw/images/sunon/mkci/products/SLEEVE.gifSLEEVE

Rating
Voltage
(VDC)

Power
Current
(AMP)

Power
Consumption
(WATTS)

Speed

(RPM)

Air
Flow
(CFM)

Static
Pressure
(Inch-H2O)

Noise

(dBA)

PDF

MF60151V3-0000-A99

60X60X15

Description: http://portal.sunon.com.tw/images/sunon/mkci/products/VAPO.gif

12

0.075

0.90

3900

18.1

0.08

28.2
