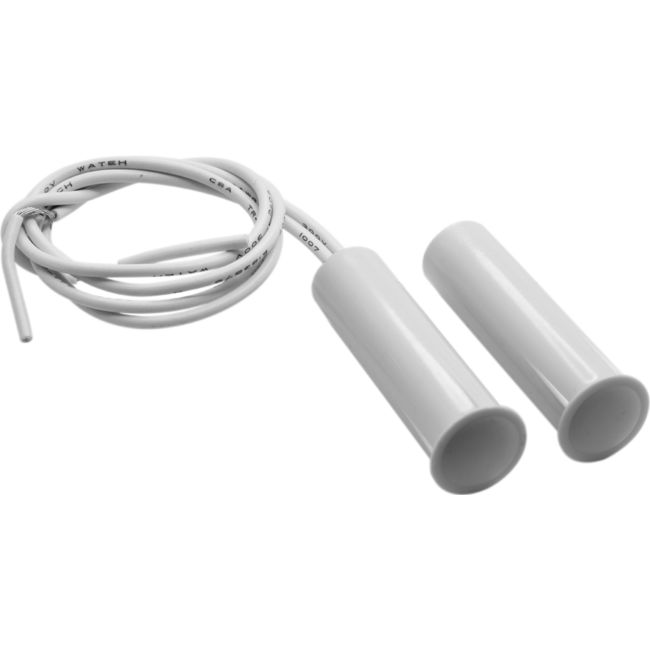

D20 FLUSH MOUNT REED SWITCH RECESSED NC

$7.95

Structure

1.Plastic Case: ABS Resin PA-707
2.Reed Switch: FLEX-14
3.Plastic Molding: Epoxy Resin 9001 A/B
4.Wire: AWG#24 1007 VW-1
5.Plastic Case: Plastic Case
6.Magnet: NdFeB N-35 Rare earth
7.Permeable rod: Ferrite
8.Plastic Molding: Epoxy Resin 9001 A/B

Specification

Switch

Loop type: closed-loop
Reed Switch Contact Form: FORM A (N.O)
Switching voltage (max.): 100v AC/DC
Switching current (max.): 0.5A
Contact capacity (max.): 10 VA
Initial contact resistance: 0.2 Ohm max.
Carry current (max.): 1 A
Breakdown voltage: 200 VDC
Insulation resistance: 100 Mohm min.
Switch cycle: 5x 107 cycle at 30.V 0.1ADC

Magnet

Material: NdFeB rare earth
Residual flux density (BR): 11.8~12.5K Gauss
Maximum energy product (BH): 33~36 MG. Oe
Curie temp. (TC): 310°C

Gap

Sense gap: 16mm min.

Physical characteristic

Temperature: -20°C ~ +60°C
Vibration: 20G (10~55Hz)
Shock: 30G (11 msec)
Heat shock: -25°C~+65°C (30min) (30min) 100 cycle
Package drop: Drop height 80 cm
Humidity: 80°C 95% RH 72 hrs
