DESCRIPTIONS

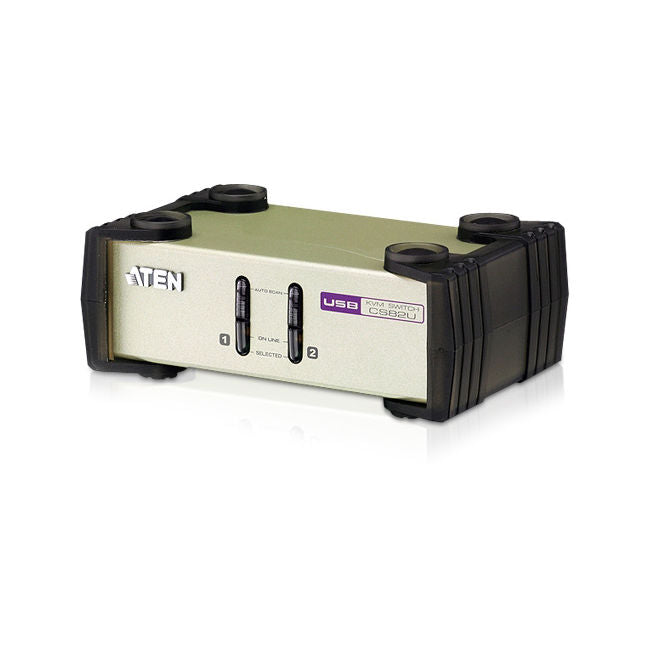

Aten CS-82U ? 2-Port PS/2-USB KVM Switch The CS82U PS/2-USB KVM Switch is a desktop control unit thatallows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync technology, which eliminates boot-up display problems and optimizes resolution. Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
FEATURES
One PS/2-USB VGA console controls two VGA interface computers. Dual Interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel pushbuttons, hotkeys, andmouse Multiplatform support - Windows, Linux, Mac, and Sun Superior video quality - 2048 x 1536; DDC2B Video DynaSync? - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping - supports English, Japanese, and French keyboards Gaming keyboard support Auto Scan Mode for monitoring all computers Firmware upgradable Non-powered * 1. PC keyboard combinations emulate Mac/Sun keyboards * 2. Mac/Sun keyboard work only with their own computers
SPECIFICATIONS
Computer Connections 2 Port Selection Front Panel Pushbuttons; Hotkey, USB Mouse Connectors Console Ports Keyboard 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Purple) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Green) KVM Ports 2 x SPHD-18 Female (Yellow) Power 1 x DC Jack Switches Selected 2 x Pushbutton LEDs On Line 2 (Orange) Selected 2 (Green) Emulation Keyboard/Mouse PS/2, USB Video 2048 x 1536 @ 60 Hz; DDC2B Scan Interval 3, 5, 10, 20 secs. (5 secs. default) Power Consumption DC 5V, 1.1W Environment Operating Temp. 0 - 50 °C Storage Temp. -20 - 60 °C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 0.54 kg Dimensions ( L x W x H ) 14.00 x 8.70 x 5.50 cm Package Contents 1 x CS82U PS/2-USB KVM Switch 2 x Custom KVM Cable sets 1 x User Instructions Compatible Cables 2L-5201U, 2L-5202U, 2L-5203U, 2L-5205U, 2L-5301UP, 2L-5302UP, 2L-5303UP
