$59.00

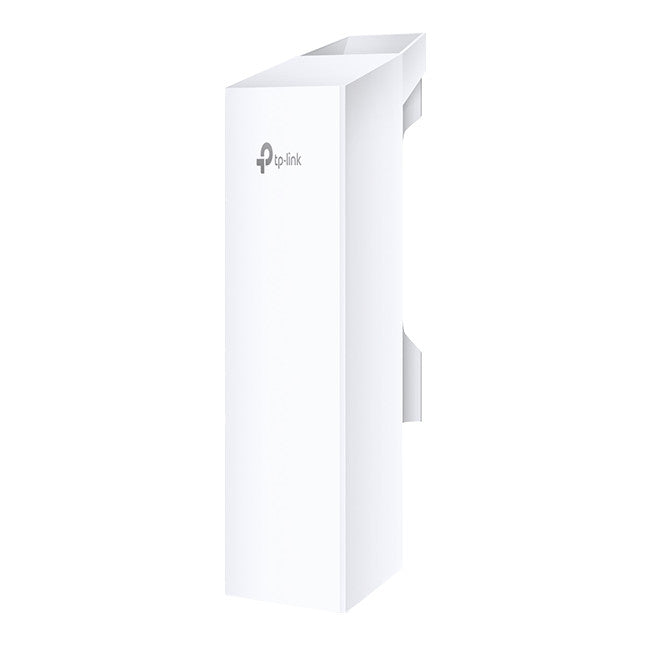

TP-LINK's 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralised management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210an ideal choice for both business and home users.
With Qualcomm Atheros enterprise level chipsets, high gainantennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from −30°C (−22°F) to +70°C (158°F).
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to −95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.
CPE210 is designed to work in harsh environments, even in some of the world's most hostile climate conditions.
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in thefield.
CPE210 also comes equipped with centralised management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
User-friendly web-based management system allows professionals to apply more specific configurations.
| Hardware Features | Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
|---|---|---|
| Memory | 64MB DDR2 RAM, 8MB Flash | |
| Interface |
| |
| Dimensions (W×D×H) | 224mm × 79mm × 60mm | |
| Antenna Type |
| |
| Protection |
| |
| Power Consumption | 10.5W Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the lengthof the connecting cable. | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4, 5 pins; −7, 8 pins) | |
| Voltage Range | 16-27V DC | |
| Enclosure |
| |
| Wireless Features | Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) | |
| Wireless Speeds |
| |
| Frequency | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. | |
| Reception Sensitivity | 802.11b
| |
| Transmission Power | 27dBm/500mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. | |
| Software Features | Wireless Configurations |
|
| Security |
| |
| Wireless Advanced |
| |
| Management |
| |
| System Tools |
|
