The Tannoy CMS501 DC is a full bandwidth; high power and high sensitivity ceiling monitor system; a compact unit that is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement, exceptional intelligibility and long term reliability.

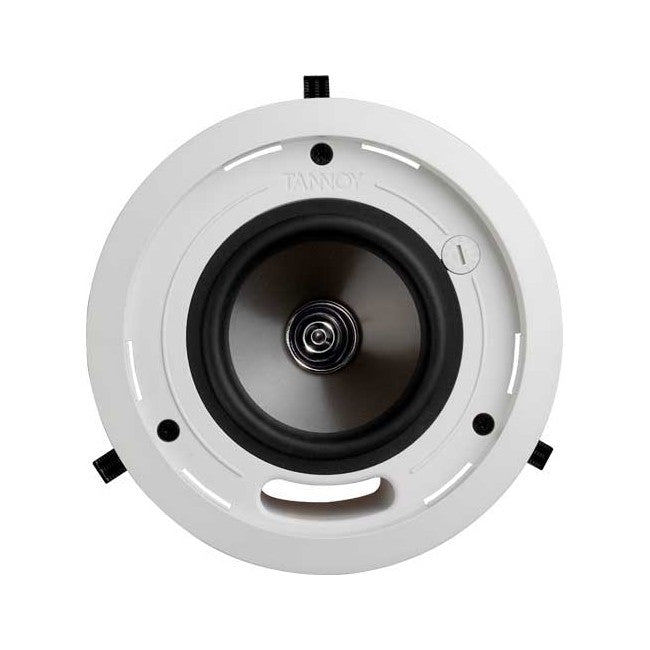

The design comprises a 130mm (5.00”) Dual Concentric™ transducer mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied with two tile support rails and one C-ring included in the package.
A plaster (mud) ring is available as an optional accessory.
Specifications:
The 130mm (5.00") Tannoy Dual Concentric™ isa point source drive unit design comprising a multi fibre paper pulp mid bass cone and a 19mm (0.75") ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The driver and passive frequency dividing network are mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.
The mid-bass and tweeter sections of the Tannoy Dual Concentric™ constant directivity driver are coincidentally aligned to a true point source; ensuring a wide and controlled dispersion for optimum coverage; this while avoiding the massive loss of energy in the vertical plane, at the crossover frequency, inherent in two-way discreet designs. This high power and high sensitivity design, with extended frequency response and very low distortion, is equipped with dynamic high frequency protection.
This compact unit is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement with exceptional reliability and intelligibility.
The CMS501 DC is equipped with a low insertion loss 30W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
? Power handling: 60W - 120W
? Nominal impedance: 8 ohm
70V systems: 30W / 15W / 7.5W / 3.75W / OFF & low Impedance operation
100V systems: 30W / 15W / 7.5W / OFF & low Impedance operation
Two CMS501 DC model versions and a separate back can are available to satisfy the vast majority of installationapplication requirements:
CMS501 DC BM (Blind Mount) – supplied with an integral back can.
CMS501 DC PI (Pre-Install) – supplied without a back can.
CMS501 PI Back Can (Pre-wire back can) – use with the CMS 501 DC PI.
The zinc plated steel back cans have an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.
Spring loaded self-aligning clamps make for quick and easy installation, while all models are also supplied withtwo tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
