$65.00

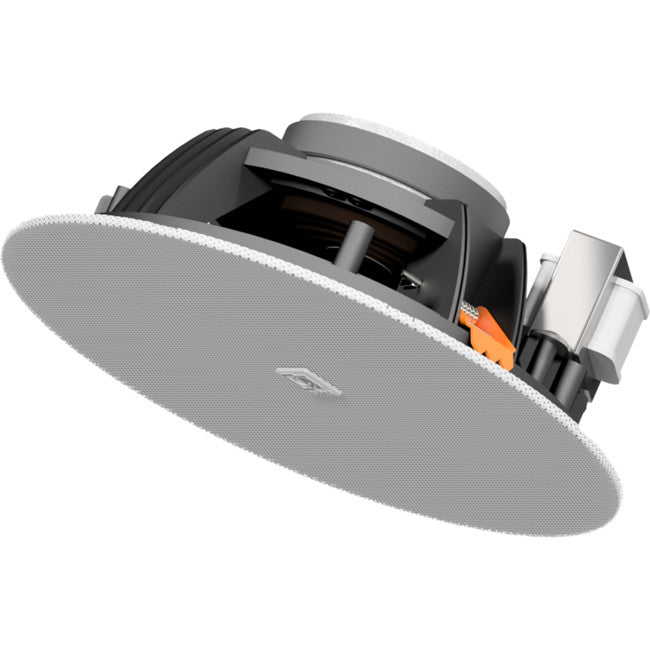

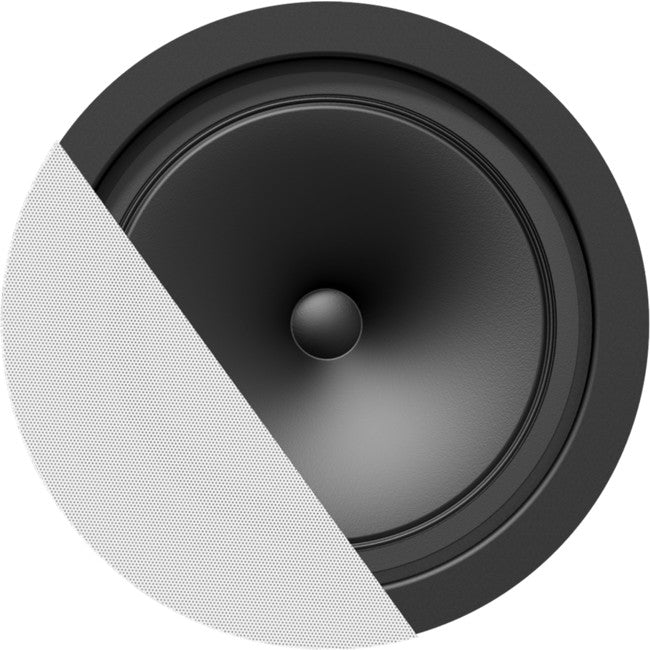

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects.

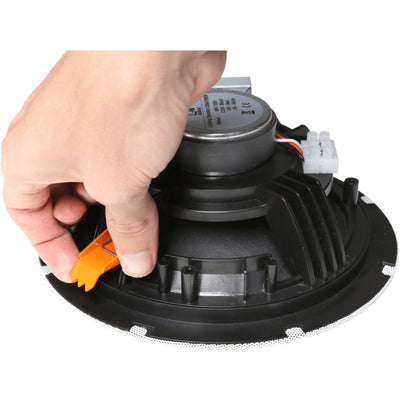

The SpringFit™ fixation offers the fastest possibleinstallation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment.
With the selection of high-quality cone materials, exceptional intelligibility and background music performanceare guaranteed.

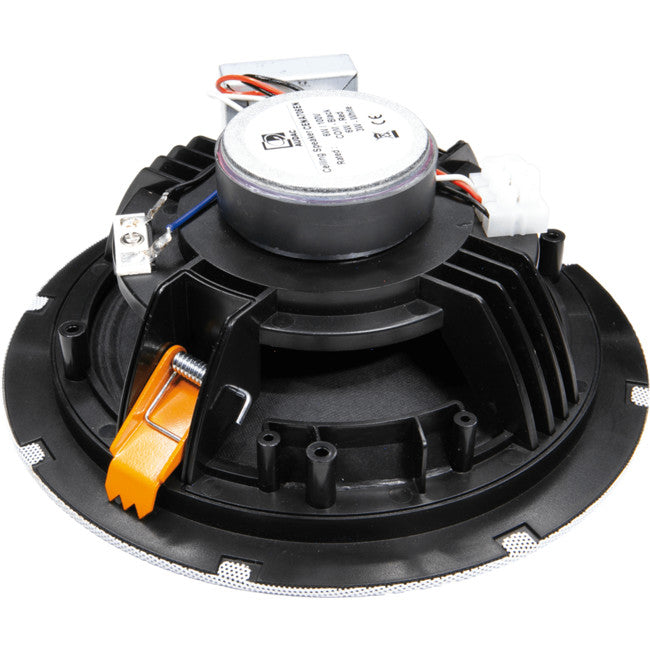

The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm’.
The CENA706 features a 6.5” broadband driver with acontinuous power handling of 10 Watt (RMS) and maximum powerhandling of 20 Watt.
It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 20 W | |||
| RMS Power | 10 W | |||
| Sensitivity (1W/1m) | 96 dB | |||
| Speaker type | Broadband | |||
| Impedance | 8 ? (CENA706) | |||
| 16 ? (CENA710D) | ||||
| Connection | Screw terminal | |||
| Drivers | 6.5” Full Range | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 106 dB | ||
| Frequency | Response (± 3 dB) | 100 Hz - 15 kHz | ||
| Range (-10 dB) | 70 Hz - 18 kHz | |||
| Line Transformer Tappings | 1 | 6 W / 1667 ? | ||
| 2 | 3 W / 3333 ? | |||
| Dispersion | Conical | 140° | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 167 mm (Ø) | |||
| Dimensions | 193 x 67 mm (Ø x D) | |||
| Construction | ABS | |||
| Front finish | borderless finely perforated steel grill | |||
| Built-in depth | 67 mm | |||
| Mounting | SpringFit™ mounting system | |||
| Colours | White (RAL9003) (CENA706/W) | |||
| Black (RAL9005) (CENA706/B) | ||||
| Operating temperature | -15 °C ~ 55 °C | |||
