Aten USB VGA KVM Console Extender - 1920x1200

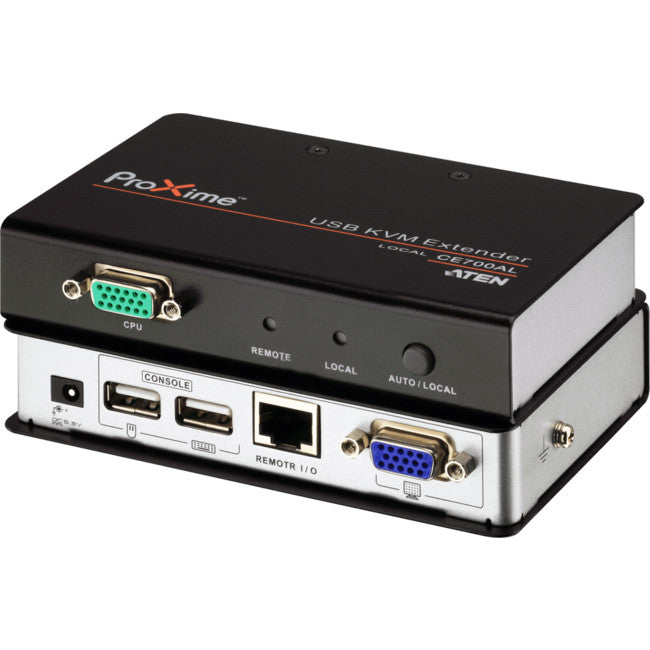

Aten CE-700A – USB KVM Extender
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.
Features
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from boththe local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV;Air voltage 15KV) and 2KV surge protection
- Automatic gain control - adjusts signal strength to compensate for distance
- High resolution video - up to 1920 x 1200@60Hz (30m );1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
- Rack mountableEasy to install - no software required -connecting cables to the devices is all it takes
- Multiplatform support - Windows, Linux
Compatible Cables:2L-5201U, 2L-5202U, 2L-5203U, 2L-5205U, 2A-130G
Specifications
- Connectors:
- Console Ports:
-
Keyboard:1 x USB Type A Female (White)
-
Video:1 x HDB-15 Female (Blue)
-
Mouse:1 x USB Type A Female (White)
- KVM Ports CE700AL:
-
Keyboard/Video/Mouse:1 x SPHD-17 Female (Green)
-
Unit to Unit:1 x RJ-45 Female (Black)
-
Power:1 x DC Jack (Black)
- Pushbuttons CE700AL:
-
Operating Mode Selection:1 x Pushbutton
- LEDs CE700AL:
-
Local:1 (Green)
-
Remote:1 (Green)
- LEDs CE700AR:
-
Remote:1 (Green)
-
Link:1 (Green)
-
Emulation - Keyboard/Mouse:USB
- Power Consumption:
-
CE700AL:DC5.3V/2.31W
-
CE700AR:DC5.3V/2.84W
- Video:
- 1920 x 1200 @ 60Hz (30m)
- 1600 x 1200 @ 60Hz (100m)
- 1280 x 1024 @ 60Hz (150m)
- Environment:
-
Operating Temp.:0 ~ 50°C
-
Storage Temp.:-20 ~ 60°C
-
Humidity:0 ~ 80% RH, Non-condensing
- Physical Properties:
-
Housing:Metal
- Weight:
-
CE700AL:0.32 kg
-
CE700AR:0.31 kg
-
Dimensions (LxWxH):12.50 x 8.15 x 2.50cm
- Package Contents:
- 1 x CE700AL USB KVM Extender (Local Unit)
- 1 x CE700AR USB KVM Extender (Remote Unit)
- 2 x Power Adapters
- 1 x USB KVM Cable (1.8m)
- 1 x Mounting Kit
