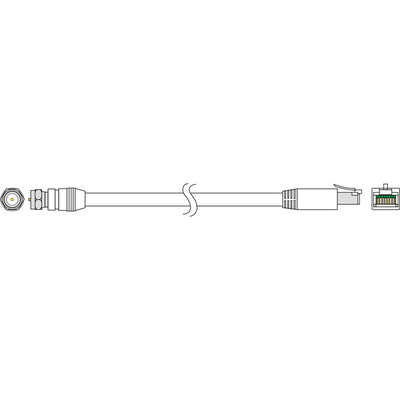

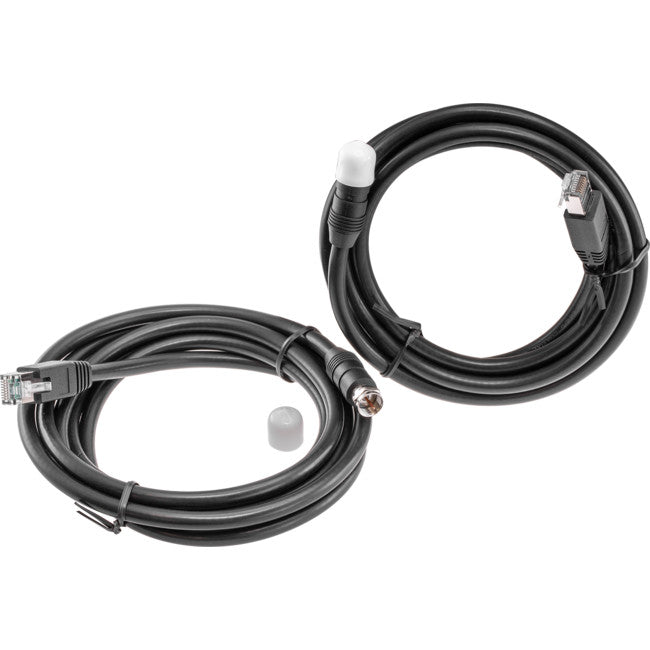

The CATV CAT5 Extender to RJ45 with 2m RG6 coax cable allows traditional 75-ohm coaxial cable to be replaced by a single pair Cat5e UTP cable. Used in pairs, it allows broadband CATV equipment to be integrated into structured cabling systems thereby allowing CATV equipment to be moved or added to any convenient modular wall outlet. It provides a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, even private homes.
The CATV CAT5 Extender works in conjunction with CATV splitters, amplifiers and cable modems for a total cabling solution.
| Input/Output Interface | F (male) x 1, RJ45 x 1 |
| Support Bandwidth | 40MHz ~2.4GHz |
| 3dB Bandwidth | 40 MHz ~ 1 GHz |
| Insert Loss | < 3 dB @ 40 ~ 1 GHz |
| Return Loss | > 18 dB @ 40 ~ 1 GHz |
| Common-Mode Rejection Ratio (CMRR) | -20dB or higher @ 40 MHz ~ 1 GHz |
| CAT.5e/6 UTP Cable | 24AWG, Impendence:100Ω |
| Coax Cable | Impendence: 75Ω @ 1 MHz (RG6) |
| Transmission Distance | Based on frequency or input video signal level, max. up to 100m |
| Temperature | Operation: 0 to 55°C, Storage: -20 TO 85°C,Humidity: up to 95% |
| Dimensions | 14.2 x 15.6 x 2000mm |
| Weight | 135g |
The following distance chart reference may different based on cable quality and input/output signal level.
| Cable | Frequency | Application Range | Distance | Remark |
|---|---|---|---|---|
| CAT5e UTP | 54~174MHz | CATV 2~6, 95~99, 14~22 | 100m | The use of an amplifier may increase the application range and working distance |
| CAT5e UTP | 174~300MHz | CATV 7~13, 23~36 | 80m | |
| CAT5e UTP | 300~648MHz | CATV 37~94 | 50m | |
| CAT5e UTP | 648~1002MHz | CATV 100~158 | 30m | |
| CAT5e UTP | 1002~2200MHz | Satellite signal |
