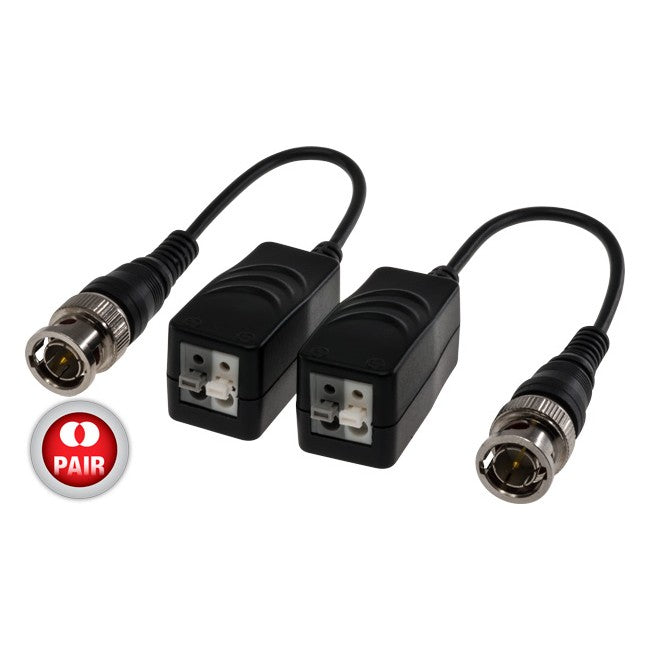

BVB4201PLHD MINI PASSIVE BNC BALUN PUSH PIN TERMINAL HD VERSION DOSS FS-HDP4201P

$14.95

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

Features

The BVB4201PLHD video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. It is compatiable with all HD-TVI, HD-CVIand AHD analoge camera.

The BVB4201PLHD has a mini-coax pigital lead which allowsquick mounting onto fixed cameras and in-camera mounting in most dome cameras. Push-pin terminal block allows tool-less connection of UTP cable output. Used in Pairs, the BVB4201PLHD eliminates costly and bulky coxial cable.

The superior interference rejection and low emissions of the BVB4201PLHD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power cirucuits. It has buit-in surge suppressor to protect video equipment against damaging voltage spikes.

Which is the best cable to work with?

We recommend to use it with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.

Features

Real-time transmission over UTP cat 5e/6
No power required
Compatible with NTSC, PAL & SECAM video format
Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
HD-CVI 720P: 440m, 1080P: 220m over UTP cat5e/6
HD-TVI 720P: 190m, 1080P: 190m over UTP cat5e/ 6
AHD 720P: 300m, 960P: 240m, 1080P: 220m over UPT cat5e/ 6
BNC plug with extended 150mm mini-coal pigtail
Reliable tool-less UTP push-pin terminal block
Built-in TVS (Transient Voltagae Suppressor) for surge protection
Wave Filter Design, Anti-Static Design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineerig plastic housing

Application

Security monitoring system
Multimedia network teaching system
Medical monitoring display system
Industrial Automation control system
Banking, securities, financial information display system
Remote network server monitoring
Department store security
Casino security
Hospitals Airport and banks
School/ campus

{tab Specifications}

Applied Devices		CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video	Video Format	PAL, NTSC, SECAM
	Operating Frequency	DC to 42MHz
	Max Distance	HD-TVI720P: 190m	HD-CVI720P: 440m	AHD720P: 300m
		HD-TVI 1080P:190m	HD-CVI 1080P: 220m	AHD960P: 240m AHD 1080P: 220m
	Common-mode/Differential-mode rejection	15KHz to 42MHz60 dB type
	Impedance	Coax, Male BNC75Ω unbalanced
		UTP, two push-pins100Ω balanced
	Attenuation	1.5 dB typ Max
Wire Type	Network Wiring	One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
	Category Type	2 or better
	Impedance	100 ± 20 ohms
	DC Loop Resistance	52 ohms per 1,000ft (18 ohms per 100m)
	Differential Capacitance	19 pF/ft max (62 pF/m max)
Power	No external power required
Connector	Video input/ output	Male BNC connector
	Videoinput/ output	Tool-less Push-pin terminal block
Protection	Surge Protection	renewable solid state surge protection
	Video Input	2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
	Video Output	2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Mechanical	Housing	ABS engineering plastic
	Body Color	Black
	Dimensions(LWH)	38.418.619.5mm (BNC connector excluded)
	Net Weight	40g
Environmental	Operating Temperature	−20°C~70°C
	Relative Humidity	0~95% (non-condensing)
	Storage Temperature	−40°C~150°C
