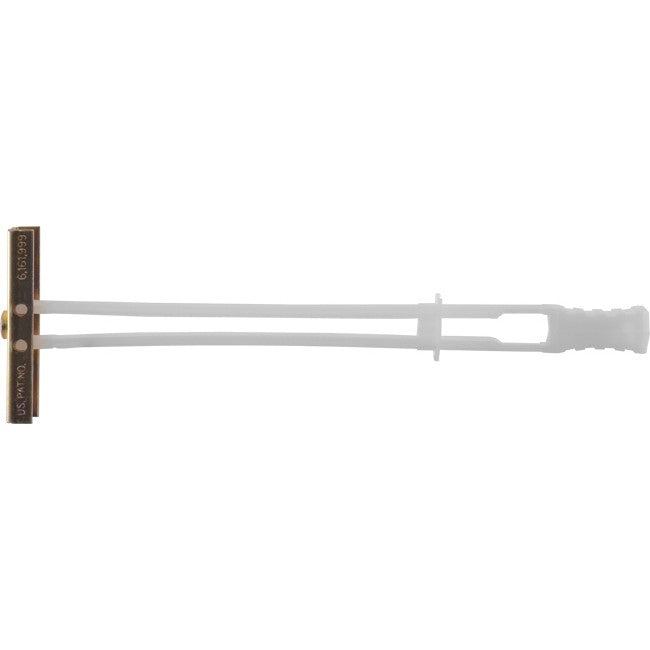

BB24014-EA HEAVY DUTY HOLLOW WALL ANCHOR BOLT 1/4"-20 SNAP TOGGLEREACH TOGGLER BB24014(1/4X2-1/2)

$2.95

Features

SNAPTOGGLE® anchors get their name from their speed and ease of use — they work in a SNAP!

The third generation of the patented SNAPTOGGLE anchors has these improvements:

Please note, this item does not come with any bolts.
If you don't already have some, make sure you choosea bolt that has your desired length from the alternate products listed at the end of this product page.

New longer and stronger plastic straps that now work in base materials 3/8" to 3 5/8" thick and will not break prematurely like other plastic straps
Straps that snap off flush with the wall every time, assuring precise alignment
A new plating that is 7x more corrosion-resistant thangovernment spec zinc plating

Smallest drill hole for each bolt size:
1/4" wing toggle needs 50% larger hole
High strength:
holds up to 2x the load of an old-fashioned wing toggle of same bolt size
Reusable in same hole:
remove the bolt without losing the anchor
One-person installation:
like having an extra pair of hands behind the wall
Insulation pushed aside by metal channel

Does NOT destroy wall or ceiling?plastic cap & metalchannel centers bolt & prevents abrasion

SNAPTOGGLE Applications/Solutions

Shelving
Bathroom Accessories
Flat Screen TVs (LCD and Plasma)
Draperies, Curtain Rods, and Blinds
Mirrors

Tensile Test Results (Ultimate results in pounds*)

Anchor /Bolt Thread	1/2" Drywall	5/8" Drywall	Concrete	1/2" Steel Plate


BA24013 BA 3/16"-24	238	356	802**	918**
BB24014 BB 1/4"-20	265	356	1,080**	1,283**


BC21015 BC 3/8"- 16	275	576	1,745**	1,692**

**New, improved holding values

Shear Test Results (Ultimate results in pounds*)

Anchor / Bolt Thread	1/2" Drywall	5/8" Drywall


BA24013 BA 3/16"-24	247	298
BB24014 BB 1/4"-20	241	324

BC21015 BC 3/8"-16	292	406

SNAPTOGGLE Toggle Bolts can be used in all hollow materials, including:

Drywall
Gypsum Board
Plasterboard
Plaster
Concrete Block
Cinder Block
Aerated Concrete
Stucco
Composite Panels
Acoustic Ceilings
Fiberglass
Cement Board
Green Board

Installation

Step-By-Step Installation

Snaptoggle Installation Image 1

Drill a 1/2" (Ø13mm) hole. Hold metal channel flatalongside plastic straps and slide channel through hole. Minimum clearance behind wall: 1-7/8" (48mm).

Snaptoggle Installation Image 2

Hold ends of straps between thumb and forefinger and pull toward you until channel rests flush behind wall.Slide plastic cap along straps with other hand until flange of cap is flush with wall.

Snaptoggle Installation Image 3

Snap straps at wall by pushing side to side, snapping off straps level with flange of cap.

Snaptoggle Installation Image 4

Place item over flange. Insert bolt through item and tighten until flush against item, then stop.
