AX72 ARCHER AX5400 WIFI6 ROUTER TP-LINK 09051684

AX72 ARCHER AX5400 WIFI6 ROUTER TP-LINK 09051684

$249.00

Overview

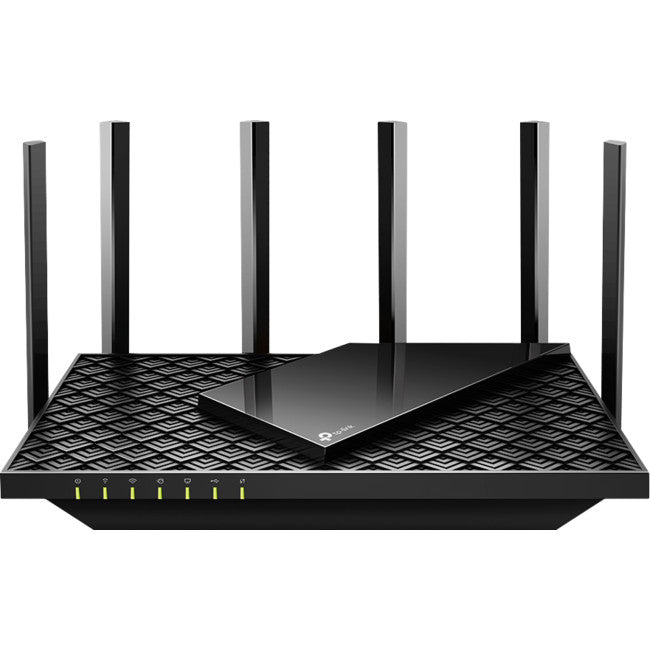

TP-Link Archer AX72 AX5400 Dual-Band Gigabit Wi-Fi 6 Router

MU-MIMO, OFDMA, 6 × Antennas, Beamforming, 1 × USB 3.0, Advanced Security and QoS

Gigabit Wi-Fi for 8K Streaming: 5400 Mbps WiFi for faster browsing, streaming, and downloading, all at the same time.
Fully Featured Wi-Fi 6: Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection.
Connect 100+ Devices: Supports MU-MIMO and OFDMA to reduce congestion andquadruple the average throughput.
Extensive Coverage: 6 × antennas and Beamforming ensure broad coverage.
HomeShield: TP-Link's premium security services keep your home network safe with cutting-edge features for network and IoT protection.
More Vents, Less Heat: Improvedvents area unleash the full power of the whole machine.
Whole-Home Coverage with OneMesh™: Works alongside TP-Link OneMesh™ products to create a flexible Mesh network
USB Sharing: 1 × USB 3.0 port enables easy media sharing and private cloud building.
Easy Setup: Set up the router in minutes with the Tether app.

Specifications

WIRELESS	Standards	Wi-Fi 6 5 GHz: IEEE 802.11ax/ac/n/a 2.4 GHz: IEEE 802.11ax/n/b/g
	Wi-Fi Speeds	AX5400 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
	Wi-Fi Range	3 Bedroom Houses 6 × Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas. Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range. High-Power FEM: Improves transmission power to strengthen signal coverage. 4T4R: Multiple streams in the same band strengthen the fault tolerance in transmission.
	Wi-Fi Capacity	High Dual-Band: Allocate devices to different bands for optimal performance. 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients. OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients. Airtime Fairness: Improves network efficiency by limiting excessive occupation. DFS: Access an extra band to reduce congestion. 6 Streams: Connect your devices to more bandwidth.
	Working Modes	Router Mode Access Point Mode
HARDWARE	Processor	1 × GHz Dual-Core CPU

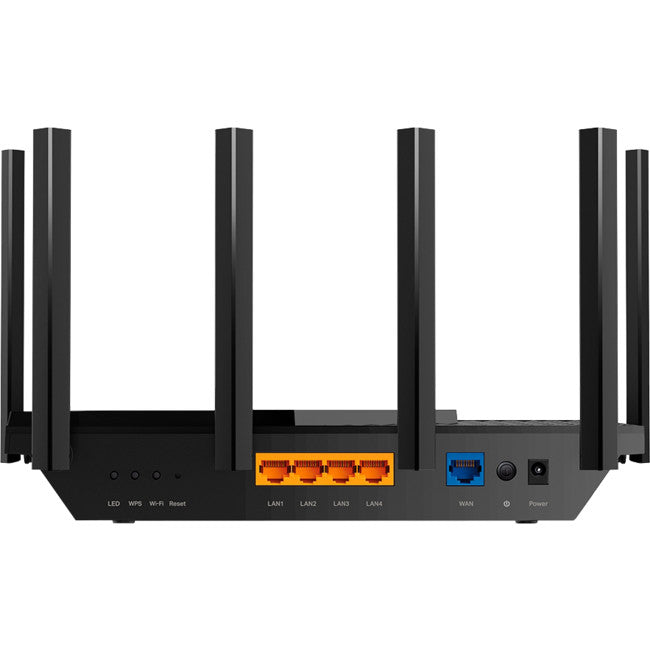

	Ethernet Ports	1 × Gigabit WAN Port 4 × Gigabit LAN Ports

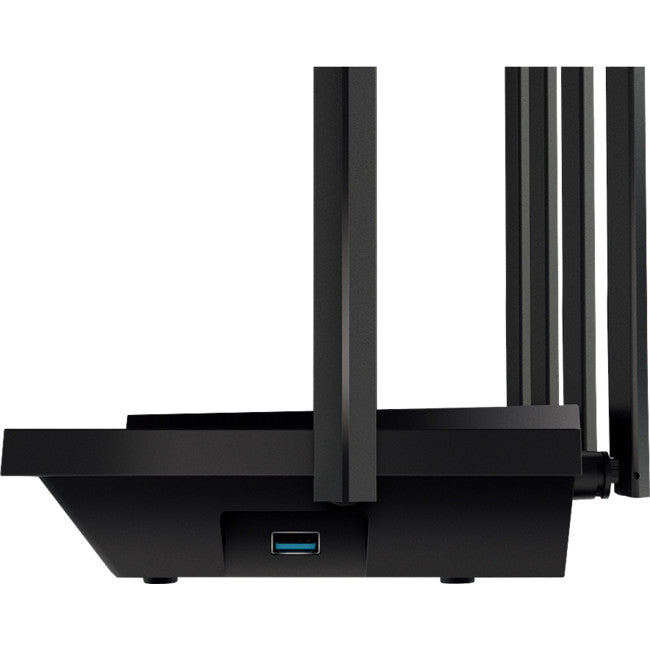

	USB Support	1 × USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
	Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
	Power	12V / 2.5A
SECURITY	Wi-Fi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
	Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
	HomeShield Security	Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
	Guest Network	1 × 5 GHz Guest Network 1 × 2.4 GHz Guest Network
	VPN Server	OpenVPN PPTP
SOFTWARE	Protocols	IPv4 IPv6
	Service Kits	HomeShield Learn More
	OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More All OneMesh Products
	Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
	WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
	Quality of Service	QoS by Device
	Cloud Service	Auto Firmware Upgrade TP-Link ID DDNS
	NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP Virtual Server
	IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
	DHCP	Address Reservation DHCP Client List Server
	DDNS	TP-Link NO-IP DynDNS
	Management	Tether App Webpage
PHYSICAL	Dimensions (W×D×H)	272.5mm × 147.2mm × 49.2mm (10.7″ × 5.8″ × 1.9″)
PHYSICAL	Package Contents	Wi-Fi Router Archer AX72 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
OTHER	System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
OTHER	Certifications	FCC, CE, RoHS
ENVIRONMENT	Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
	Storage Temperature	−40°C ~ 70°C (−40°F ~ 158°F)
	Operating Humidity	10%~90% non-condensing
	Storage Humidity	5%~90% non-condensing
TEST DATA	Wi-Fi Transmission Power	CE: <20dBm (2.4GHz) <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.725GHz) FCC: <24dBm (5.25GHz~5.35GHz & 5.47GHz~5.725GHz) <30dBm (2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
TEST DATA	Wi-Fi Reception Sensitivity	2.4GHz: 11ac VHT20 MCS0: −94.5dBm 11ac VHT20 MCS8: −72.5dBm 11ac VHT40 MCS0: −92.5dBm 11ac VHT40 MCS9: −69.5dBm 11ax HE20 MCS0: −95dBm 11ax HE20 MCS11: −64.5dBm 11ax HE40 MCS0: −92.5dBm 11ax HE40 MCS11: −62dBm 5GHz: 11ac VHT20 MCS0: −97dBm 11ac VHT20 MCS8: −74dBm 11ac VHT40 MCS0: −95dBm 11ac VHT40 MCS9: −70dBm 11ac VHT80 MCS0: −91.5dBm 11ac VHT80 MCS9: −66dBm 11ac VHT160 MCS0: −86dBm 11ac VHT160 MCS9: −61dBm 11ax HE20 MCS0: −95dBm 11ax HE20 MCS11: −64dBm 11ax HE40 MCS0: −91.5dBm 11ax HE40 MCS11: −62dBm 11ax HE80 MCS0: −88dBm 11ax HE80 MCS11: −58dBm 11ax HE160 MCS0: −85.5dBm 11ax HE160 MCS11: −55dBm
