WIRELESS | |
---|---|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX6000 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range |
4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
WiFi Capacity |
Very High Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | 1.8 GHz 64 Bit Quad-Core CPU |

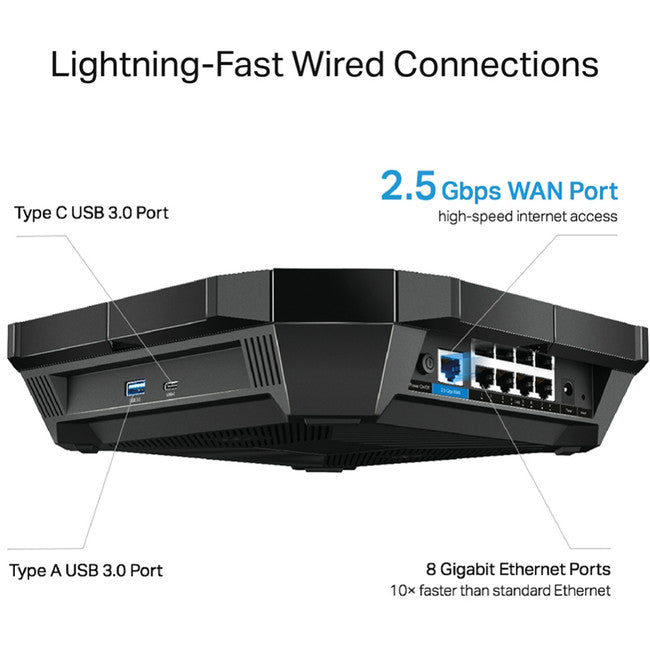

Ethernet Ports | 1× 2.5 Gbps WAN Port 8× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports |
USB Support | 1× USB-C 3.0 Port 1× USB-A 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ? 4 A |
SECURITY | |
---|---|
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Service Kits | HomeCare™ Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls |
HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device HomeCare™ QoS QoS by Application |
Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 10.3 × 10.3 × 2.4 in. (261.2 × 261.2 × 60.2 mm) |
Package Contents | Wi-Fi Router Archer AX6000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-97dBm,11a54MBps:-79dBm 11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm 11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm 11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm 11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm 11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm 11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm 2.4 GHz: 11g 6Mbps:-97dBm,11a54MBps:-79dBm 11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm 11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm 11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm 11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm 11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm |
