| WIRELESS |
Standards |
Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
|
| Wi-Fi Speeds |
AX3000
- 5 GHz: 2402 Mbps (802.11ax, HE160)
- 2.4 GHz: 574 Mbps (802.11ax)
|
| Wi-Fi Range |
3 Bedroom Houses
-
4 × Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas.
-
Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range.
-
High-Power FEM: Improves transmission power to strengthen signal coverage.
|
| Wi-Fi Capacity |
High
-
Dual-Band: Allocate devices to different bands for optimal performance.
- OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients.
- Airtime Fairness: Improves network efficiency by limiting excessive occupation.
- DFS: Access an extra band to reduce congestion.
- 4 Streams: Connect your devices to more bandwidth.
|
| Working Modes |
- Router Mode
- Access Point Mode
|
| HARDWARE |
Processor |
Dual-Core CPU |
| Ethernet Ports |
- 1 × Gigabit WAN Port
- 4 × Gigabit LAN Ports
|
| USB Support |
1 × USB 3.0 Port |
| Buttons |
- Wi-Fi/WPS Button
- Power ON/OFF Button
- RESET Button
|
| Power |
12V / 2A |
| SECURITY |
Wi-Fi Encryption |
- WPA/WPA2-Personal
- WPA2/WPA3-Personal
- WPA/WPA2-Enterprise
|
| Network Security |
- HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
|
| Guest Network |
- 1 × 5 GHz Guest Network
- 1 × 2.4 GHz Guest Network
|
| VPN Server |
|
| SOFTWARE |
Protocols |
|
| Service Kits |
HomeShield |
| OneMesh™ Supported |
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More >
All OneMesh Products >
|
| HomeShield Parental Controls |
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
|
| WAN Types |
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
|
| Quality of Service |
QoS by Device |
| Cloud Service |
- Auto Firmware Upgrade
- OTA Firmware Upgrade
- TP-Link ID
- DDNS
|
| NAT Forwarding |
- Virtual Servers
- Port Forwarding
- Port Triggering
- DMZ
- UPnP
|
| IPTV |
- IGMP Proxy
- IGMP Snooping
- Bridge
- Tag VLAN
|
| DHCP |
- Address Reservation
- DHCP Client List
- Server
|
| DDNS |
|
| Management |
|
| GENERAL |
System Requirements |
- Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
| Certifications |
FCC, CE, RoHS |
| ENVIRONMENT |
Operating Temperature |
0°C~40°C (32°F~104°F) |
| Operating Humidity |
10%~90% non-condensing |
| TEST DATA |
Wi-Fi Transmission Power |
CE:
- <20dBm (2.4GHz)
- <23dBm (5.15GHz~5.35GHz)
- <30dBm (5.47GHz~5.725GHz)
FCC: - <30dBm (2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
|
| Wi-Fi Reception Sensitivity |
2.4GHz:
- 11ac VHT20 MCS0: −96dBm, 11ac VHT20 MCS8: −74dB
- 11ac VHT40 MCS0: −94dBm, 11ac VHT40 MCS9: −70dB
- 11ax HE20 MCS0: −96dBm, 11ax HE20 MCS11: −66dBm
- 11ax HE40 MCS0: −93dBm, 11ax HE40 MCS11: −63dBm
5GHz:
- 11ac VHT20 MCS0: −96dBm, 11ac VHT20 MCS8: −75dBm
- 11ac VHT40 MCS0: −94dBm, 11ac VHT40 MCS9: −70dBm
- 11ac VHT80 MCS0: −91dBm, 11ac VHT80 MCS9: −67dBm
- 11ac VHT160 MCS0: −88dBm, 11ac VHT160 MCS9: −63dBm
- 11ax HE20 MCS0: −96dBm, 11ax HE20 MCS11: −66dBm
- 11ax HE40 MCS0: −93dBm, 11ax HE40 MCS11: −63dBm
- 11ax HE80 MCS0: −91dBm, 11ax HE80 MCS11: −61dBm
- 11ax HE160 MCS0: −87dBm, 11ax HE160 MCS11: −58dBm
|
| PACKAGING |
Dimensions (W×D×H) |
261.1mm × 134.5mm × 41.0mm (10.2″ × 5.3″ × 1.5″) |
| Package Contents |

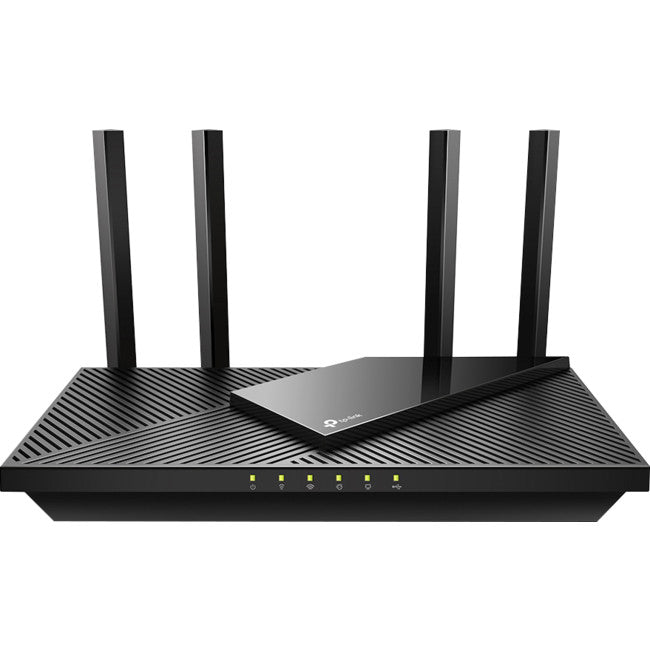

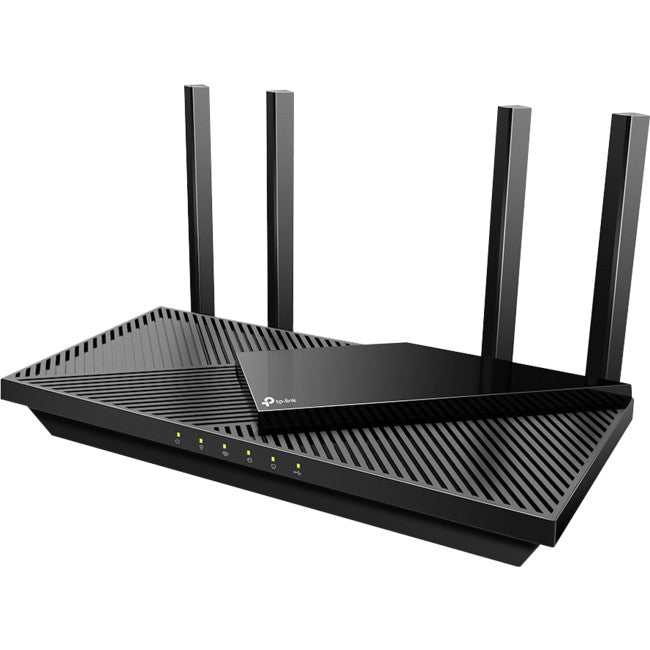

- Wi-Fi Router Archer AX55
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
|
