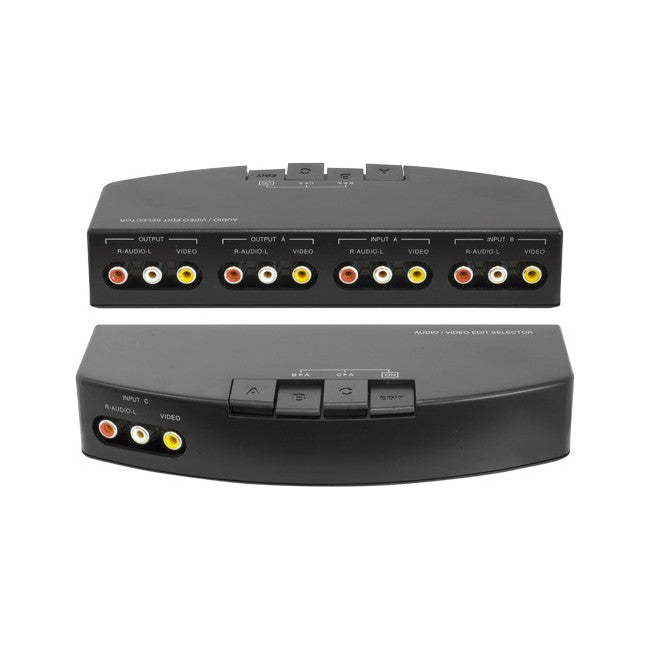

AV313 R
-
3 in 2 outComposite AV Selector
- Connect multiple AV sources to multiple destinations
- Easily switch between AV sources with the press of abutton
-
EDIT button: This feature allows you to record material from Source B or C to a VCR which is connected to Output A
Specifications
-
Specification for audio :
1. Frequency range: 10-20K Hz
2. Insertion loss: 0.1dB limited.
3. Channel separation (@ 1KHz): 60dB normal / 55dB limited.
4. Crosstalk between function (@ 1K Hz) 60dB normal/ 55dB limited.
Note:
1. The generator impedance should be 600 ohm.
2. Signal output reading is taken across a 47K ohm load.
3. Product Output 4.7K ohm terminated. (on testing channel separation and crosstalk) -
Specification for video:
1.Frequency range: 0.3-6M Hz
2.Insertion loss: 0.5dB limited.
3.Isolation loss: 35dB limited.
Note:
1.The generator impedance should be 75 ohm.
2. Input 75 ohm terminated.
