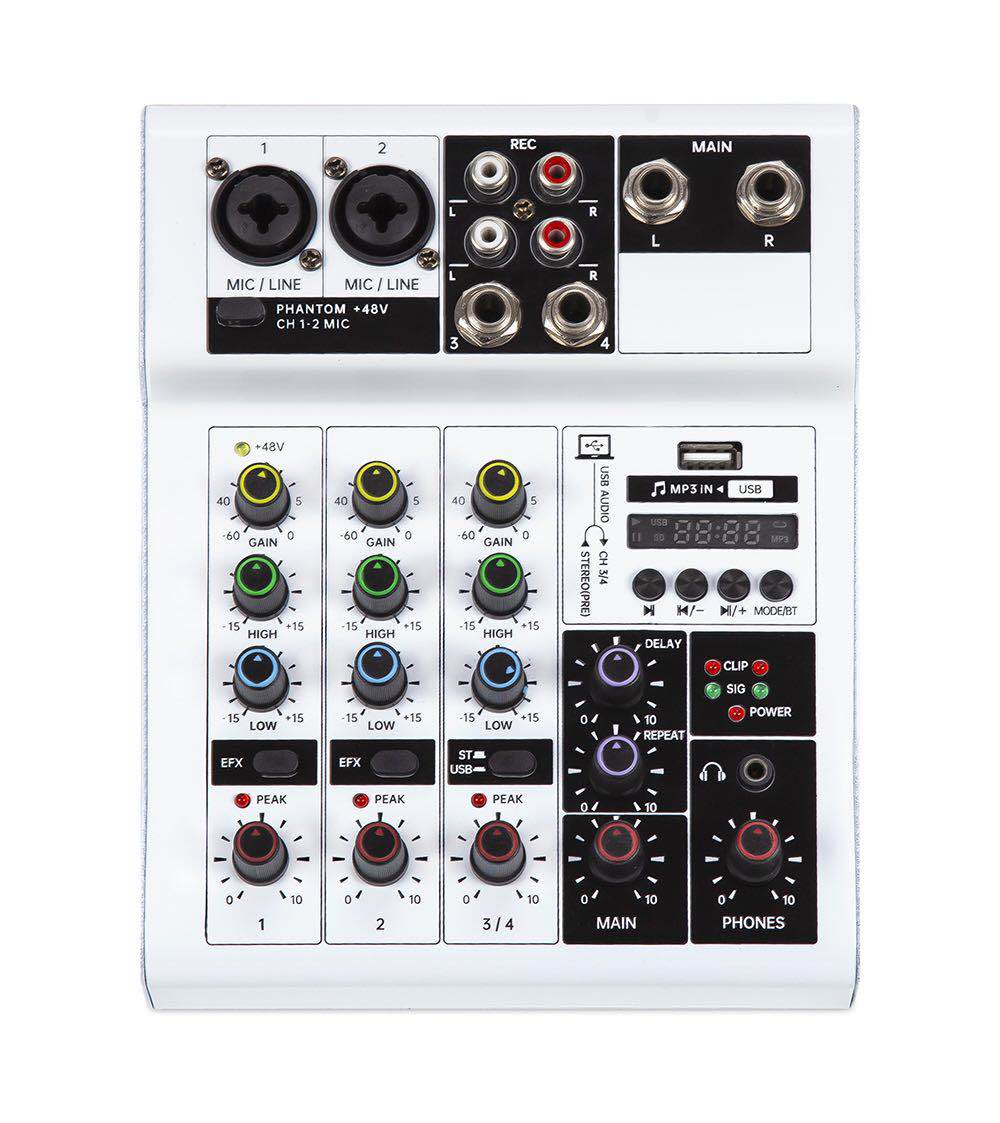

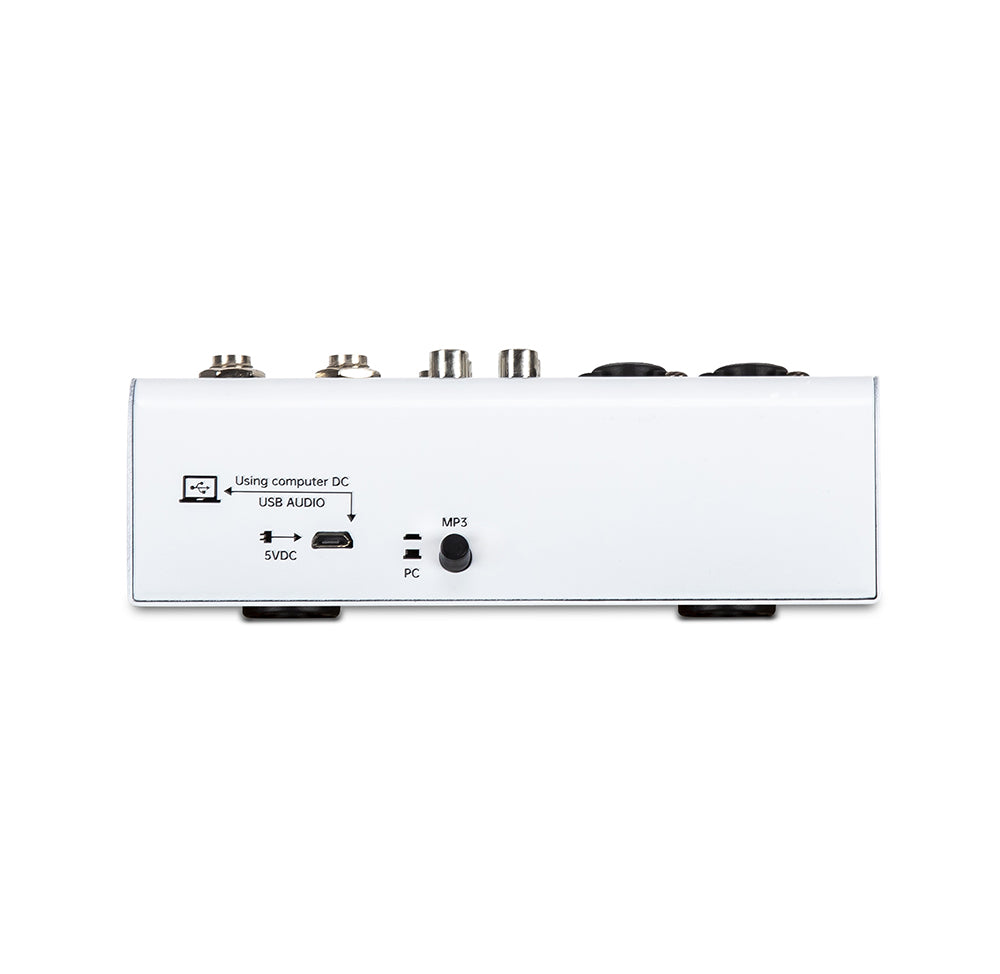

Audio Mixer 4 Channel Bluetooth USB PC Soundcard Voice Record Radio EQ Phantom

Notify me when this product is available:

ASHTEC Professional Live Audio Bluetooth PA Mixer 4 Channel with Phantom Power - mixer for stage, streaming, recording, etc.

Ultimate Compact mixer with 2 microphone / instrument channels, stereo channel and stereo USB / Bluetooth channel. Fully equipped with FM Radio / On Board 7 Channel EQ / MP3 player / recorder, sound card, Bluetooth 4.0, reverb effect and phantom power.
Local Pick up available from Store at Dandenong Market or can collect after shop hours from Narre Warren south. Or can post if required.

Features:

  • Live mixing console with 2 microphone / instrument channels incl. 48V phantom power
  • Mono / stereo channel
  • Stereo Bluetooth / USB channel with recording
  • Built-in sound card for streaming via PC
  • Gain / High / Low  2-band EQ / Effects control on each Microphone / Instrument Channel
  • Digital Echo  Effect Channel  with Delay control
  • Dual Input  XLR  or 1/4 Jack sockets, Level Switchable: Microphone or Line
  • Recording - Recording Function In-Built Stereo MP3 player for USB flash drive
  • LCD display
  • Headphone jack
  • Output Via 2x /4 Inch Jack
Specifications:
  • Microphone / Instrument Channels: 2
  • Controls: Gain, High, Low, Effect, Level
  • Equalizer: In Built 7 Band Stereo EQ
  • Phantom: + 48V
  • 2x Input Impedance: switchable Line / Microphone
  • Combo Input Jack: XLR balanced / Jack (6.3mm) unbalanced
  • Stereo Line Channel: 1
  • Sensitivity: + 4dB / -10dB switchable
  • Input Jacks : RCA Female Sockets L & R
  • Stereo USB / Bluetooth 4.0 Channel: 1
  • Capacity Memory Stick: up to 16GB (FAT32)
  • File Format Recording: 128Kbs / 48kHz Sampling
  • Bluetooth Version: 4.2
  • Output Level: 3Vrms (75 ohms), + 4dBu, max + 22dBu
  • Output Jacks : 2x XLR Balanced
  • Frequency Response: 20 - 20,000Hz (+/- 0.5dB)
  • Dynamic Range: 102dB
  • Distortion: <0.03% (THD + N @ 1kHz)
  • Stereo Crosstalk : 92dB
  • Power: 15Vdc / 48v DC (power adapter included)Size: 205 X 180 X 40 mm
