ARCHERT4U AC1300 DUAL BAND USB3 ADAPTER TP-LINK TP-LINK TL-ARCHERT4U

Overview

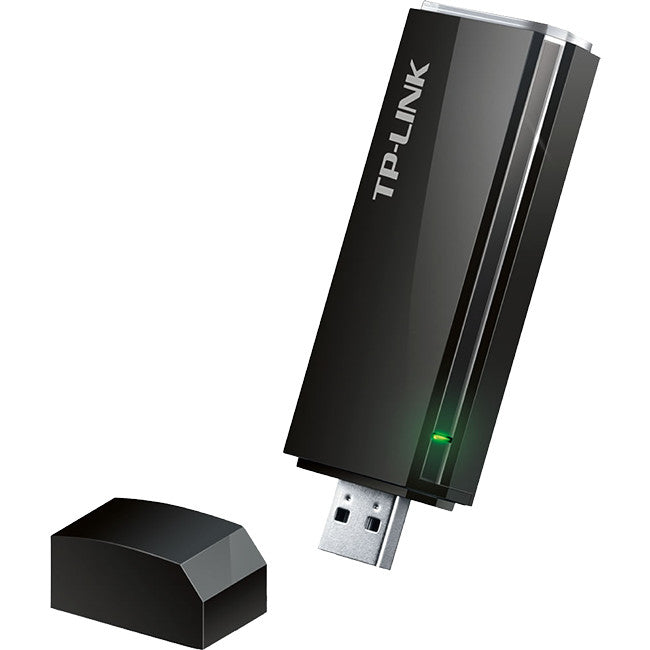

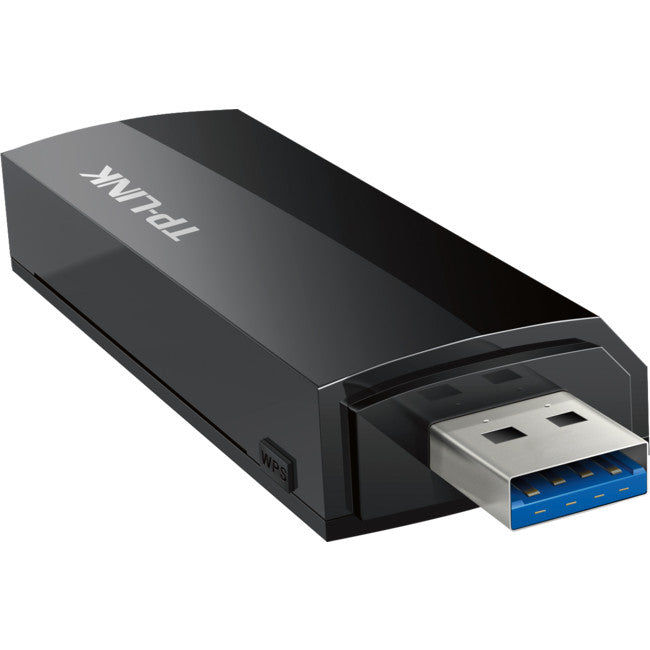

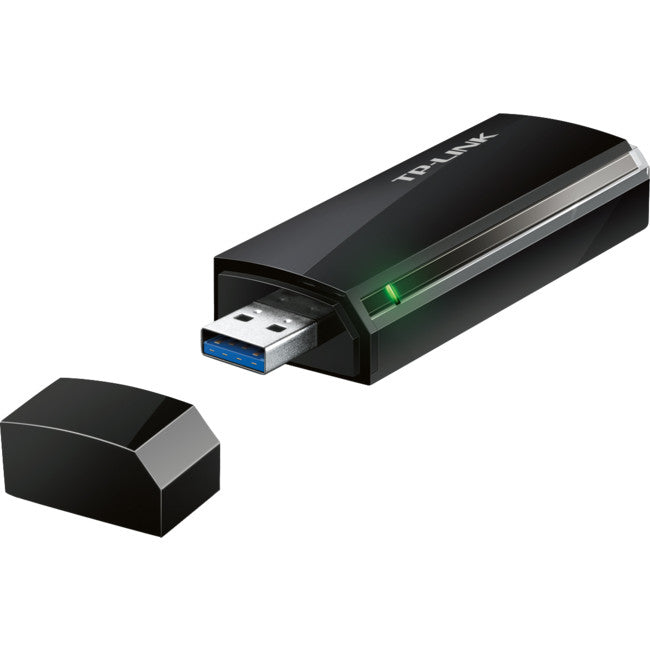

TP-Link ARCHERT4U AC1300 Wireless Dual Band USB 3.0 Adapter

802.11ac – The Next Generation of WiFi

TP-LINK's Archer T4U comes with the next generation Wi-Fistandard ? 802.11ac, 3 times faster than wireless N speeds. With 867Mbps wireless speeds over the crystal clear 5GHz band or 300Mbps over the 2.4GHz band, the Archer T4U is the superior choice for seamless HD streaming, online gaming andother bandwidth-intensive tasks.


AC1200 Wireless Speed

The 5GHz 867Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 300Mbps Wi-Fi for normal use such as web surfing


USB 3.0 – Up to 10X faster than USB 2.0

Experience blazing speed data transfers of up to 4.8Gbps with USB 3.0 – the latest USB connectivity standard. USB 3.0 transfers data up to 10X faster than USB 2.0 and is also backward compatible with USB 2.0. This high-speed transfer rate combine with 802.11ac ideal for HD streaming, online gaming and large file downloads.


The Best of Both Bands

TP-LINK's Archer T4U is an AC1200 Wireless Dual Band USB Adapter giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their notebook or PC's wireless capabilities to operate withnew 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.


Bundled USB Extension Cable

Archer T4U equipped with the 1m USB 3.0 extension cable, which extend the USB connection length, making it more convenient to plug the USB device in & out of the USB socket. Its elegant and stylish design is suitable for home deployment and will even improve the look of your home and office.


Features

  • Supports 802.11ac standard: the next generation of Wi-Fi
  • SuperSpeed USB 3.0 port-Up to 10x faster than USB 2.0
  • Dual Band connections for lag-free HD video streaming and gaming
  • Maximum speed up to 5GHz 867Mbps or 2.4GHz 400Mbps
  • Backward compatible with 802.11 a/b/g/n products
  • Supports ad-hoc and infrastructure mode
  • Easy wireless security encryption at a push of the WPS button
  • Supports Windows 8/7/XP 32/64-bit
  • Easy wireless configuration utility
  • Equipped with a USB 3.0 1.0m extension cable for flexible deployment

Specifications

Specifications


HARDWARE FEATURES Interface USB 3.0
Button WPS button
Dimensions (W×D×H) 92.2mm × 29mm × 14.6mm (3.6″ × 1.2″ × 0.6″)
Antenna Type Omni Directional
WIRELESS FEATURES Wireless Standards
  • IEEE 802.11ac, IEEE 802.11a,
  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
  • 5GHz
  • 2.4GHz
Signal Rate 5GHz:
  • 11ac: Up to 867Mbps (dynamic)
  • 11a: Up to 54Mbps (dynamic)
2.4GHz:
  • 11n: Up to 400Mbps (dynamic)
  • 11g: Up to 54Mbps (dynamic)
  • 11b: Up to 11Mbps (dynamic)
EIRP <20dBm (EIRP)
Reception Sensitivity 5GHz:
  • 11a 6Mbps: −88dBm
  • 11a 54Mbps: −71dBm
  • 11ac HT20: −65dBm
  • 11ac HT40: −60dBm
  • 11ac HT80: −56dBm
2.4GHz:
  • 11b 11Mbps: −90dBm
  • 11g 54Mbps: −73dBm
  • 11n HT20: −71dBm
  • 11n HT40: −68dBm
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Supports 64/128 bitWEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,256-QAM
OTHERS Certification CE, FCC, RoHS
Package Contents
  • Wireless Adapter Archer T4U
  • Resource CD
  • Quick Installation Guide
  • USB Extension Cable
System Requirements Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows XP(32/64-bit)
ENVIRONMENT Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature −40°C ~ 70°C (−40°F ~ 158°F)
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing

FAQs

FAQs


  1. [861] How to troubleshoot if your computer goes to a blue screen when installing TP-LINK wireless adapter?
  2. [767] How to configure the TP-LINK wireless adapter working as a Soft AP with new utility?
  3. [709] What can I do if the TP-LINK Wireless Adapter is not achieving desired speed?
  4. [460] How to install adapters on Windows 8 if plug-and-play fails?
  5. [451] How to Manually Install Adapters on Windows 8?
  6. [450] How to use TP-LINK network adapters on Windows 8
  7. [353] What can I do if I can't detect any wireless signal?
  8. [351] How to Use the New TP-LINK Wireless Configuration Utility to connect to network?
  9. [284] How to check if I have installed the driver for my adapter successfully or not?
  10. [278] What should I do when the driver for my adapter is not allowed on my windows computer?
  11. [268] How to Install TP-LINK Wireless Adapters by Running the CD?
  12. [228] How to Manually Install Adapters on Windows 7?
  13. [219] How to Setup an Ad Hoc Wireless Network with Windows Built-in Utility (Windows XP)?
  14. [059] How do I install TP-LINK wireless adapter manually on Windows XP?
  15. [052] How do I install/update driver of TP-LINK wireless adapter manually in Vista?

Downloads

User Manual

Quick Installation Guide
