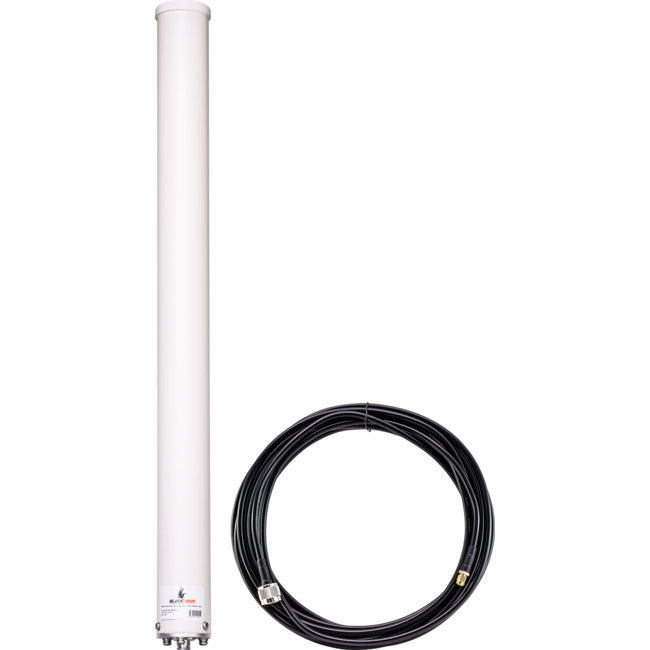

ANT-BH-OM-204-10 OMNI HIGH GAIN 698-2700 6DBI BLACKHAWK ANTENNA & 10M CABLE

ANT-BH-OM-204-10 OMNI HIGH GAIN 698-2700 6DBI BLACKHAWK ANTENNA & 10M CABLE

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

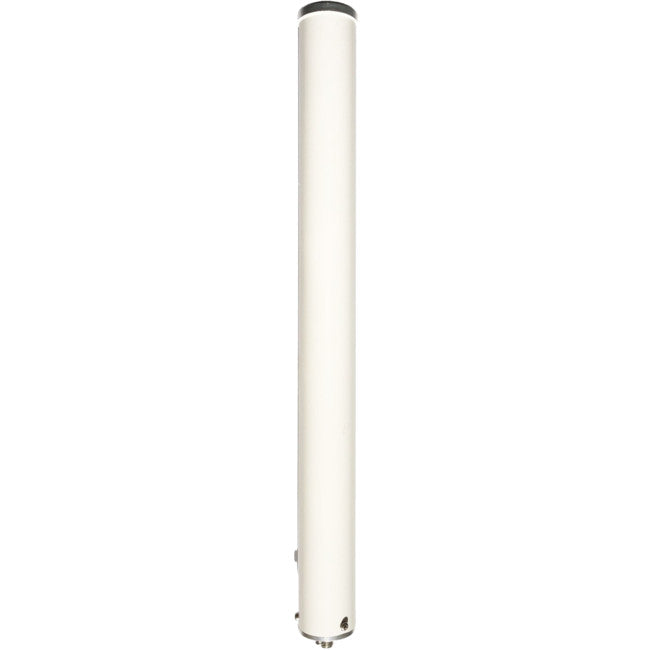

ANT-BH-OM-204 - BLACKHAWK OMNI HIGH GAIN 698-2700 6DBI ANTENNA

FEATURES

  • 6 dBi gain across lower bands 698-960 MHz
  • 6 dBi gain across upper bands 1710-2700 MHz
  • Ruggedised construction for Australian conditions
  • UV-stable PVC construction
  • Stainless steel L-bracket included
  • Integrated N Female connector
  • 10m PT240 LSHF cable pre-fitted with an SMA male connector.

Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.


Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.

This is the ideal omnidirectional external antenna for Cel-Fi repeater systems.


The Blackhawk Wideband Omni Antenna provides an ideal solution for 3G / 4G voice and data applications.

With the rollout of new 3G and 4G frequencies such as 700MHz 4GX and 2600 MHz 4G, traditional omnidirectional antennas just haven't been able to keep up.

Blackhawk wideband omnidirectional antennas provide high gain across the full cellular band 700 to 2700 MHz regardless of mounting direction, allowing quick and easy installation with no technical know-how required.


The true wideband performance has been achieved through aclever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.



ELECTRICAL SPECIFICATIONS

  • Frequency Range
698-960 MHz / 1710-2700 MHz
  • Input Impedance
50 Ω
  • Peak Gain
6 / 6 dBi
  • VSWR
≤2.5:1 /≤2.5:1
  • Polarisation
Vertical linear
  • Horizontal Beamwidth
360° (omnidirectional)
  • Vertical Beamwidth
60°
  • Maximum Input Power
100 W

MECHANICAL SPECIFICATIONS

  • Input Connector
N Female
  • Cable
10 m, PT240 LSHF, SMA Male
  • Lightning Protection
DC Ground
  • Radiator Material
Collinear copper elements
  • Radome Material
UV stable PVC
  • Mounting
Stainless Steel, pole mountØ30-50 mm
  • Dimensions
Ø63 × 680 mm
  • Weight
1.9 kg
  • Packing Dimensions
700 × 100 × 100 mm
  • Rated Wind Velocity
210 km/h
  • Operating Temperature
-40 to +65°C
