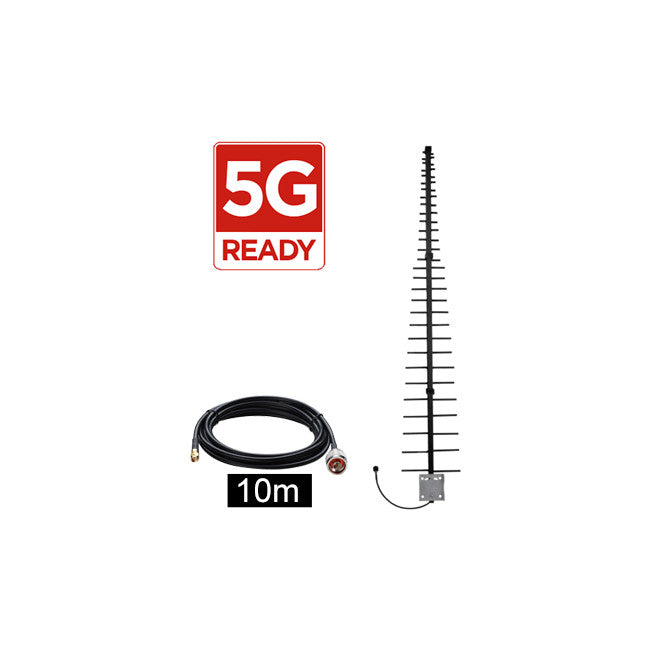

ANT-BH-YG-LOG-LPDA-10 698-4000MHZ 12/14DBI- 5G READY 10M LMR240 SMA-M TO N-M LEAD BLACKHAWK ANTBHYGLOGLPDA-10

$282.75

ANT-BH-YG-LOG-LPDA-10 - BLACKHAWK LPDA ANTENNA - 698-4000MHZ 12/14DBI

Includes a 10M LMR240 SMA-M to N-M LEAD

5G Ready

Operating on all 3G, 4G and 5G frequencies in Australia, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.

This is the ideal external antenna for Cel-Fi repeater systems.

The Blackhawk LPDA Antenna provides an ideal solution for3G/ 4G voice and data applications.

With the rollout of new 3G, 4G and even 5G frequencies, traditional Yagi antennas just haven’t been able to keep up.

LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand.

This one antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility.

A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wide-band performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length.

The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.

FEATURES

12 dBi gain across lower bands 698-960 MHz
14 dBi gain across bands 1710-2700 MHz
12 dBi gain across upper bands 3300-4000 MHz
Ruggedised construction for Australian conditions
Fully welded, powder coat aluminium design
Stainless steel mounting clamp included
30 cm tail with pre-terminated N Female connector
Ideal for high-speed 3G and 4G LTE applications.
Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G

ELECTRICAL SPECIFICATION

Frequency Range (MHz)	698-960 / 1710-2700/ 3300-4000
Input Impedance	50 Ω
Peak Gain	12 / 14 dBi
VSWR	≤2.5:1 /≤1.8:1
Polarisation	Vertical, linear
Horizontal Beam-width	55 / 42°
Vertical Beam-width	46 / 34°
Maximum Input Power	50 W

Input Connector	N Female
Cable	30 cm cable tail
Lightning Protection	DC Ground
Radiator Material	Fully welded aluminium, black powder coat
Mounting	Stainless Steel, pole mountØ30-50 mm
Dimensions	1240 x 200 x 60 mm
Packing Dimensions	1290 x 210 x 90 mm
Weight	2.2 kg
Rated Wind Velocity	192 km/h
Operating Temperature	-40 to +65°C
