AMP-D25MC 2CH AMP WITH MIC INPUT MCLELLAND 01619007

CLASS D MINI STEREO AMPLIFIER WITH MIC INPUT

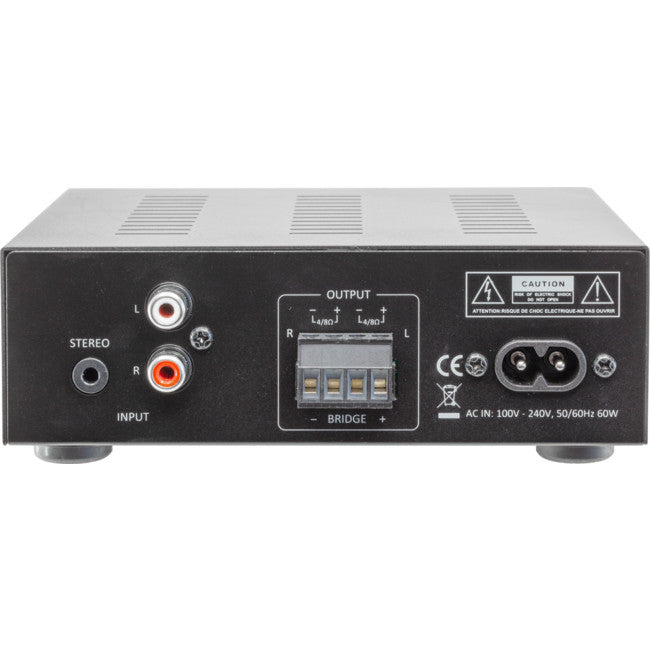

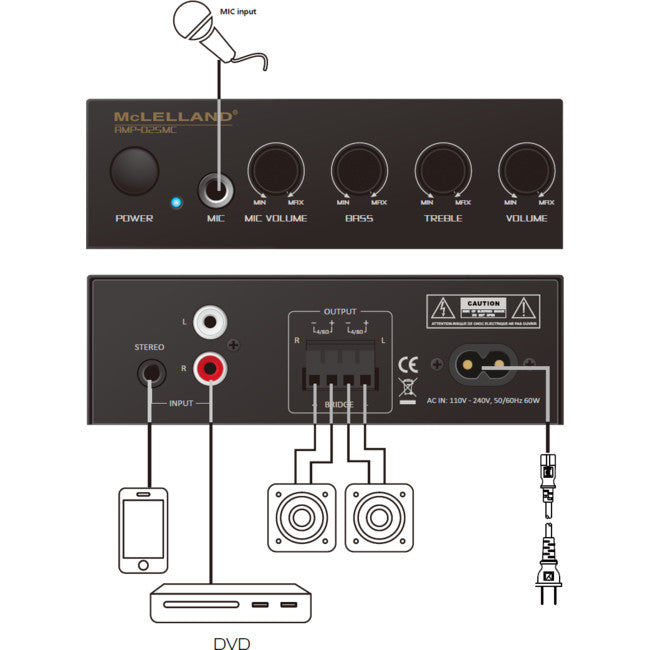

The McLelland AMP-D25MC is an ideal solution for residential and commercial audio installations that require a simple setup and great sound output. With a small footprint, but high output, these Class D amplifiers can siton a desktop, or can easily be mounted on a wall or within arack using the included mounting brackets. The amps can be used in a stereo system, but can also be switched for use inbridged or mono applications. The inputs consist of two stereo audio inputs, two RCA inputs and a single 3.5mm inputon rear panel, and a Microphone input on front panel. Also includes an auto-ON feature so the unit do not need to be powered manually, just hit play and the amp will power on automatically.

Features

  • Class D Digital Amplifier
  • RCA and 3.5mm Jack Stereo Inputs
  • Mixes two audio input sources together
  • Stereo and Mono/Bridge Modes

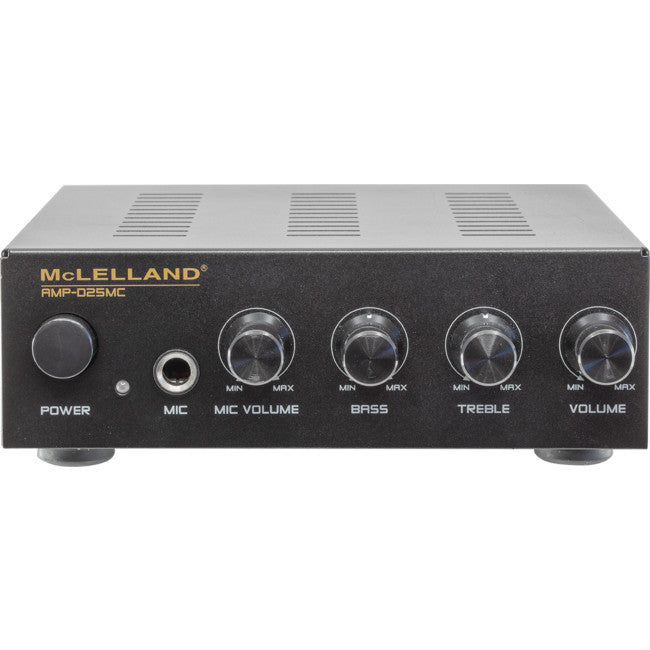

  • Microphone Input on the front panel with volume control
  • Treble/Bass Control on the front panel
  • Automatically goes into standby after 5 minutes of inactivity
  • Source Sensingautomatically wakes the amplifier from standby mode

Specifications

  • Output Power: Stereo (8 ohm): 25W per channel, <1%THD+N
  • Stereo (4 ohm): 45W per channel, <1% THD+N
  • Bridged Mono (8 ohm): 90W, 1kHz, <1% THD+N
  • Frequency Response: 20Hz ~ 20kHz, -2dB/ +1dB
  • Bass Adjustment: +/-12dB @ 100Hz/0dB
  • Treble Adjustment: +/-12dB @ 10KHz/0dB
  • Signal to Noise Ratio: 90dB below 25W output into 8 ohms
  • Channel Separation: 48dB @ 1kHz, to 25W output at 8 ohms
  • Input Sensitivity: RCA: 600mV
  • MIC: 20mV
  • Input Voltage: AC 100V ~ 240V
  • Net Weight: 4.25bs / 1.92gs
  • Dimensions: 1.77"/(45mm) x 5.62"/(143mm) x 4.92"/(125mm) (HxWxD)
