AMISZRM4 1RU MULTI-ZONE ROUTING MIXER AUSTRALIAN MONITOR AUSTRALIAN MONITOR AJ-AMISZRM4

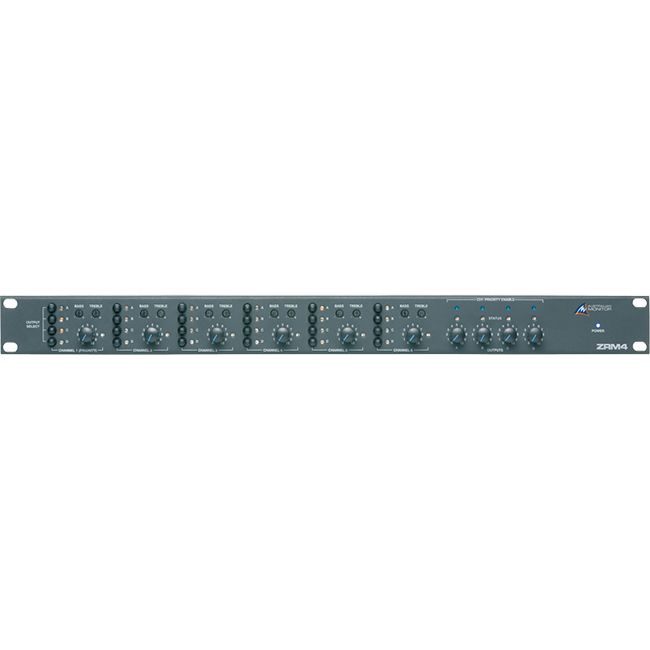

ZRM4 MULTI ZONE ROUTING MIXER 1RU - AUSTRALIAN MONITOR

The Australian Monitor ZRM4 is a simple to use, yet highly featured 1RU zone routing mixer.Featuring 6 inputs that can be balanced XLRmic or dual RCA/balanced XLR line level, all available to any combination of 4 zone outputs, the ZRM4 makes signal routing in multizone applications easy.

Features:

  • 6 balanced dual mic/line input
  • 4 mono outputs/zones
  • 6 dual mic/line inputs with sensitivity control
  • In built bell, alert, evac and pre announce chimes
  • Individual remote master VCA control for all four outputs/zones
  • Inbuilt priority/ducking circuit switchable per output
  • Clear indication of zone selection from front panel LEDs

Specs:

Dimensions (mm) 44.0h x 482.0w x 188.0d
Weight Net 2.9kg Shipping 4.4kg
Power Input 20VAC; 600mA max or
24 to 34v DC regulated 600mA max
NOTE: No power supply included
Sensitivity (input required for 0dBu out)
RCA In -26dBu to +4dBu (39mV to 1.23 V)
XLR Line In -26dBu to +4dBu (39mV to 1.23 V)
XLR Mic In -60dBu to -30dBu (0.78mV to 25mV)
Max Level In >14.1 Vrms (+25dBu)
Max Level Out >15.4 Vrms (+26dBu)
Frequency Response <5Hz to >22kHz (0dB/-3dB)
THD Less than 0.1%
Noise <90dBu 20Hz-20kHz (all pots centred)
Crosstalk <-65dB @ 1kHz
Phantom Power 15VDC
