$304.50

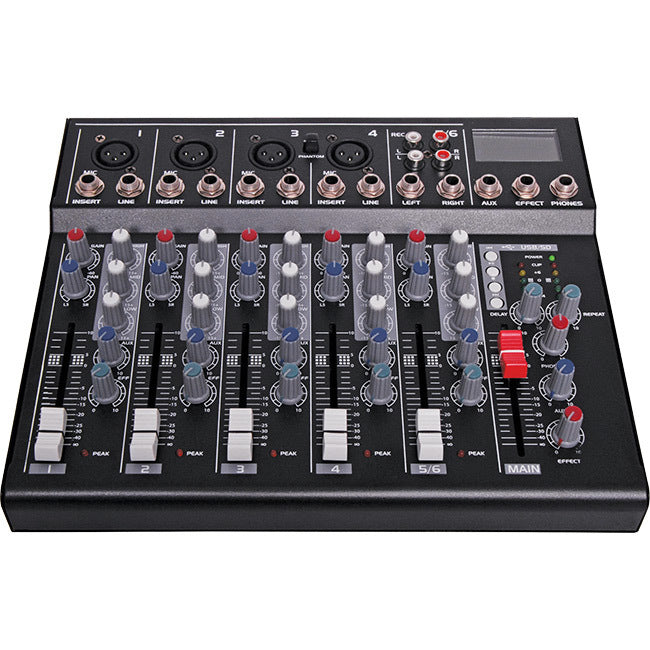

This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel. Playback is controlled via the transport controls located next to the dual VU meters.
Channels 1 to 4 are identical and feature:
- balanced XLR, unbalanced 6.35mm and insert input for external effects
- separate high, mid, low frequency controls
- gain, effects level and left/right pan.
Channels 5 and 6 are combined on the single fader and feature the same adjustments. Dual 6.35mm outputs (L&R) are provided for connection to amplifier. Includes power supply
Important: USB/SD & channel 5/6 are a combined input, if used simultaneously, this will result in a mixed output
Features:
All inputs top mounted for easy access
Dual 6.35mm TRS outputs
LED VU meters
USB/SD card MP3 playback with transport controls
Repeat and delay effects
External effects send & return
Phones/monitor output & level
Selectable phantom power
Gain, monitor, effect, pan, high, mid & low levels controls on all channels
Record RCA output
LCD readout for USB playback
Specifications:
Mic: +14dB to +60dB (120dB SNR)
Line: -6dB to +38dB (95dB SNR)
Stereo: -8dB to 15dB (96dB SNR)
Equalisation
Low: 50Hz±15dB
Mid: 700Hz±15dB
High: 10KHz±dB
Main outputs: +28dB bal / +22dB unbal.
Frequency response: 20Hz - 20KHz
Power: 12V ac
Dimensions: 270W x 235D x 68Hmm
Weight: 2kg
