$601.75

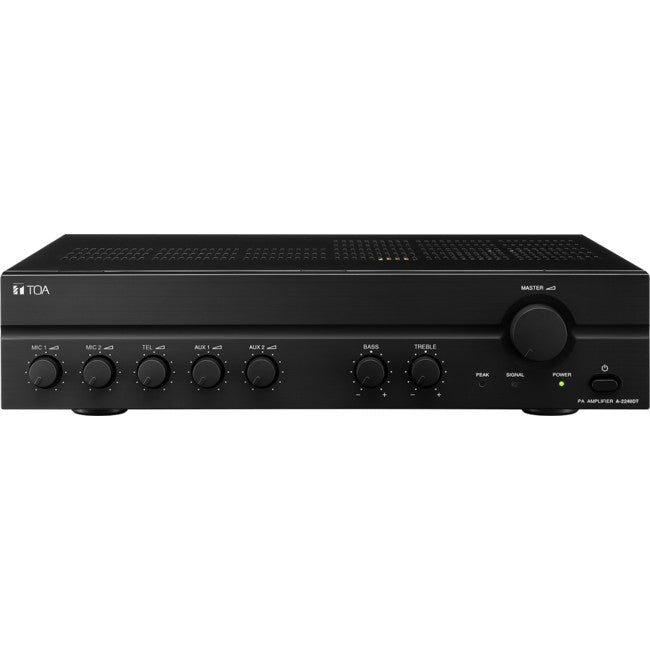

TOA’s 2000 Series Mixer Power Amplifiers are designed to be highly cost effective solutions to the demands of PA applications. They offer high levels of performance and versatility and are well-suited for paging and background music in schools, offices, shops, factories, mosques, churches, and large meeting rooms.
A-2000 Series Mixer Power Amplifiers are designed to behighly costeffective solutions to the demands of PA applications. They offer high levels of performance and versatility and are especiallywell-suited for broadcasting paging and supplying background music in schools, offices, shops, factories, mosques, churches, and large meeting rooms. The A-2000 series makes available a wide range of power outputs (A-2030: 30W, A-2060: 60W, A-2120: 120W, A-2240: 240W), with a frequency response of 50 – 20,000 Hz and distortion under 1%. Three balanced/XLR3-31 type MIC inputs and two unbalanced/RCA pin jack AUX inputs, along with high and low impedance balanced (floating) speaker outputs and unbalanced REC outputs ensure operational versatility.
Phantom power and muting are available on MIC 1, along with tone control for bass and treble. Power, signal and peak indicators are provided. In addition, the P-2240 Booster Amplifier offers a means of increasing power amplification for system expansion through adding more speakers.
All 2000 Series Mixer Amplifiers Feature:
P2240 Power Amplifier Features:
High cost-performance
Flexibility
Easy to handle
| Model No. | A-2030 | A-2060 | A-2120 | A-2240 | P-2240 |
| Power Source | 220 – 240V AC or 24V DC | ||||
| Rated Output | 30W | 60W | 120W | 240W | 240W |
| Power Consumption | 34W (EN60065), 78W (AC operation atrated output), 2A (DC operation at rated output) | 72W (EN60065), 150W (AC operation at rated output), 4A (DC operation at rated output) | 124W (EN60065), 260W (AC operation at rated output), 8A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) | 238W (EN60065), 520W (AC operation at rated output), 15A (DC operation at rated output) |
| Frequency Response | 50 – 20,000Hz (±3dB) | ||||
| Distortion | Under 1% at 1kHz, 1/3 rated power | ||||
| Input MIC | MIC 1 – 3: -60dB*, 600Ω, electronically balanced, XLR3-31 type AUX 1, 2: -20dB*, 10kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) | Line in: 0dB*, 10kΩ, balanced, screw terminal 100V line in: 40dB*, 330kΩ, unbalanced, screw terminal Power remote control: Make contact | |||
| Output - Loop out | — | — | — | — | 0dB*, 10kΩ, balanced, screw terminal |
| Output - Speaker out | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) | Balanced (floating) |
| Output - High impedance | 330Ω (100V), 170Ω (70V) | 170Ω (100V), 83Ω (70V) | 83Ω (100V), 42Ω (70V) | 42Ω (100V), 21Ω (70V) | 42Ω (100V), 21Ω (70V) |
| Output - Low impedance | 4Ω (11V) | 4Ω (15.5V) | 4Ω (22V) | 4Ω (31V) | 4Ω (31V) |
| Output - Rec. out | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | 0dB*, 600Ω, unbalanced, RCA pin jack | — |
| Phantom Power | DC +21V (MIC 1) | — | |||
| S/N Ratio | Over 60dB | ||||
| Ventilation | — | Fan cooling | |||
| Tone Control | Bass: ±10dB at 100Hz/Treble: ±10dB at 10kHz | ||||
| Muting | MIC 1: Mutes other input signals by 0 – 30dB attenuation | — | |||
| Indicator | Power. signal, peak | ||||
| Finish | Panel: ABS resin, black/Case: Steel plate, black | ||||
| Dimensions | 420 (W) × 100.9 (H) × 280.3 (D)mm | 420 (W) × 100.9 (H) × 360.3 (D)mm | 420 (W) × 100.9 (H) × 351.3 (D)mm | ||
| Weight | 5kg | 7kg | 10.8kg | 13.2kg | 13.2kg |
