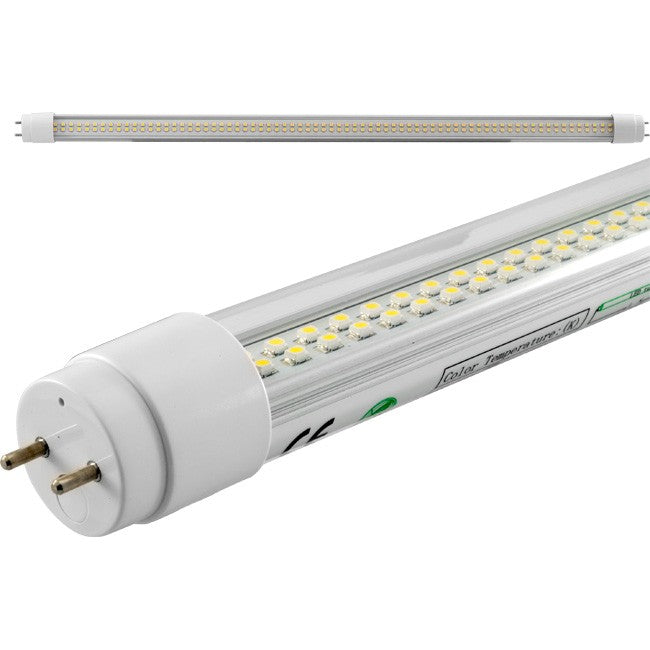

T8 LED Tubes are an ideal replacement for traditional T8 fluorescent tubes as they have the advantages of high brightness, being energy efficient and a super long lamp life of at least 30,000 hours without any flickering.
- Type: T8 Led Tube
- 8 Watts
- Standard White (4000 ~ 4800K)
- Length: 0.6m
- 144 LEDs
Benefits
- Environmentally friendly: No glass no mercury, no electromagnetic emissions, no UV and no IR radiation.
- Bright LED light source
- Low heat emissions
- Long life span: 30,000~50,000 hours
- Saving of at least 40% for comparable fluorescent tubes
- Vibration and shock resistant
- 12 month warranty
Applications
- Living room
- School
- Factory
- Supermarket
- Kitchen
- Warehouse
- Show rooms
Tube type | T8 LED tube |
Colour& Colour temperature | Standard White (4000~4800K) |
LED type | 3528 smd leds |
LED Quantity | 144 pieces |
Working voltage | AC100-130V/200-260V |
Light Efficiency | 70-90LM/W |
Luminous Flux | 700-800 lm |
Output power | 8W |
Material | Aluminium Alloy Shell + Transparent PC |
Operation temperature | -20 ~ 55° |
Power efficiency | 80-85% |
Power factor | 90% |
Colour rendering index | Ra>76% |
Certification | CE,RoHS |
Scenario
- Radio Parts has approximately 500 fluoro tubes [item 25582495] in current use.
- Current cost of power is 0.152¢ per kWh [3 phase]
- We will start replacing these with LED tubes [25600110]
Workings
- The Doss T8 is rated at 16W as opposed to the 36W ofa standard T8 fluorescent tube
- Using a Fluke 771F we confirmed the current draw
- By roughly adding the material, labour and power costs, we investigated costs over a 25 year period
Assumptions
- Cost of LEDs are reducing in price over time, but we are assuming that prices remain the same
- Usage is based on 8 hours per day for 365 days a year
- Energy costs are likely to increase over time, but we are assuming energy prices remain fixed
- The assumed install price is the same. Though LEDs involve the removal of the starter and ballast, the fluoros are hotter (cannot be touched) and are more fragile
Conclusion
- For our existing site, it's nearly cost neutral forthe first 2-3 years. After 25 years, we expect to save over $80,000
