$3.55

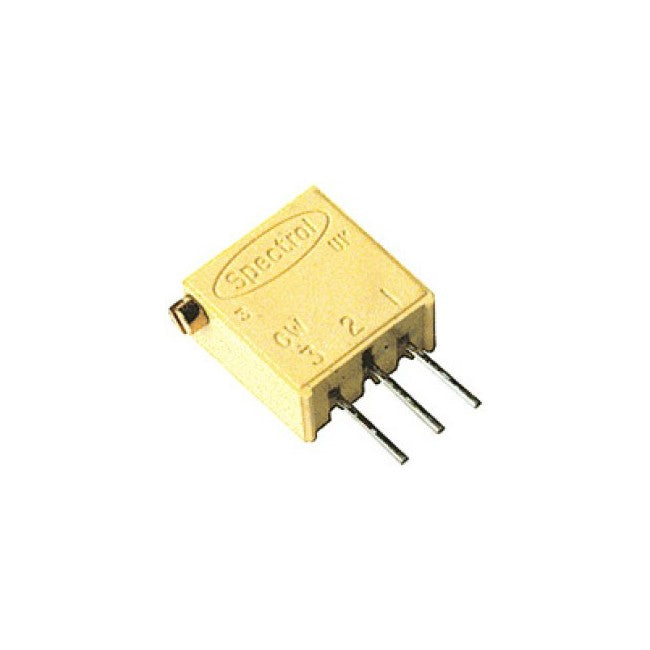

- 25 Turns
- Vertical mounting, Horizontal adjustment
- Immersion sealed
- 2.54mm grid pin spacing
- Max. Case Size: 10 x 5.10 x 10mm (LWH)
- Sealed for board washing and potting in low viscosity material
- Leak tested in water at 85°C for one minute (Specifications):
- Max. Working Voltage: 300V D.C.
- Resistance Law: Linear
- Resistance Tolerance: 100 Ohm~500K ±10%, Others ±20%
- Wattage Rating: 0.5Watt @ 70°C
- Working Temp. Range: - 55°C ~ + 125°C
- Temp. Coefficient: ± 100 PPM/°C
- Slider Current: 100mA DC
- Dielectric Voltage: 900V RMS
- Insulation Resistance: 1000M min.
- Value: 100K
