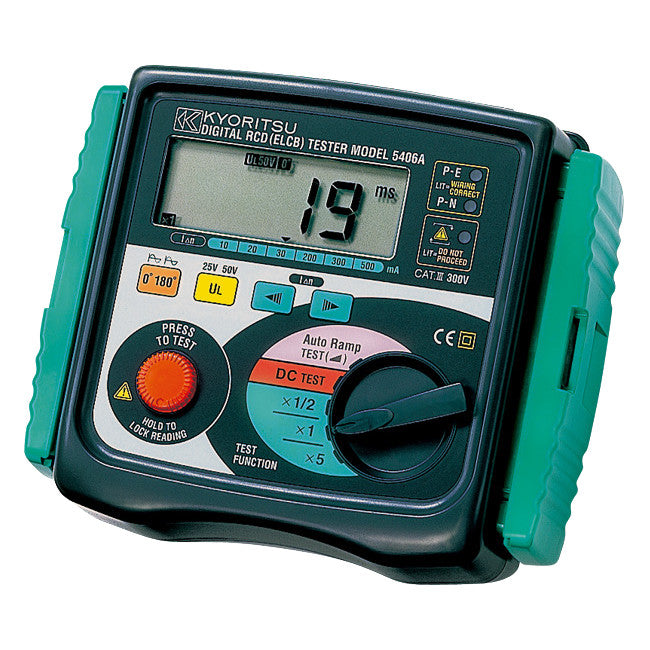

5406A DIGITAL RCD TESTER KYORITSU 46430141

5406A DIGITAL RCD TESTER KYORITSU 46430141

Sold Out

RCD TESTER

  • Custom microprocessor controlled for highest accuracy and reliability.
  • 3 LEDs for checking correct wiring status
  • 0 and 180 degree phase angle switch permits quick tests and consistent readings.
  • Digital read-out of tripping time.
  • Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
  • Large custom digital display readout.
  • Visual indication of reversed phase and neutral wiringat socket.
  • Designed to IP54 Rating
  • Complies with IEC 61557
Rated Tripping Current |10/20/30/200/300/500mA
Fault Condition Settings |x 1/2, x 1, x 5, x DC,
|AUTO RAMP
Trip Current Duration |1000ms, 200ms (x5)
Lowest Resolution |1ms
Trip Time Accuracy |±0.6%rdg±4dgt
Operating Voltage |230V+10%-15%
|(195V - 253V) 50Hz
Safety Standard |IEC 61557-1,-6
|IEC 61010-1 CAT III 300V
|IEC 61010-2-031 Pollution Degree 2
Withstand Voltage |3700V AC for 1 minute
IP Rating |IEC 60529-IP54
Dimensions |186(L) x 167(W) x 89(D)mm
Weight |800g approx.
Accessories |Molded plug test leads
|Pouch for test leads
|Shoulder Strap
|Instruction Manual
Optional |7121B (Simplified measurement probe)
