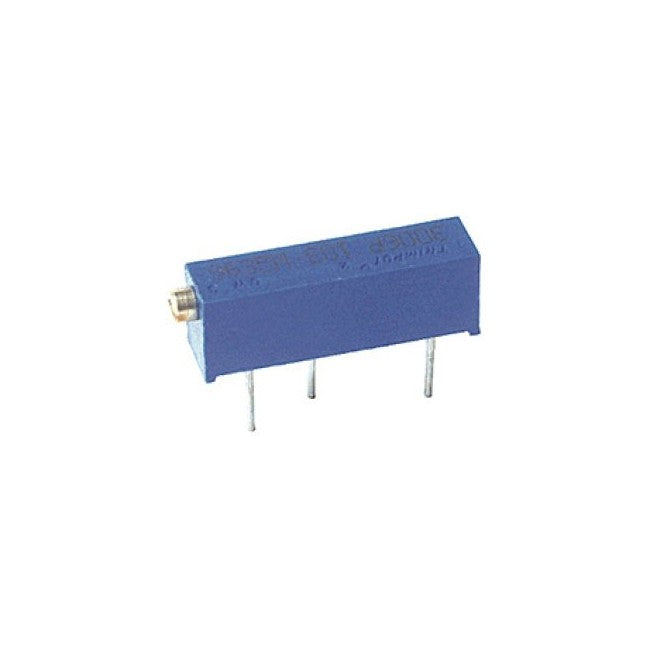

43P-1KB 1K 20 TURN TRIMPOT WIDE PINS VERTICAL TRIM POTENTIOMETER 1K 43P

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

- 20 Turns
- Sealed for board washing and potting in low viscosity material. Leak tested in water at 85°C for one minute.
- Max. Case Size: 20 x 5.0 x 6.0mm (LWH) (Specifications):
- Max. Working Voltage: 200V D.C.
- Resistance Law: Linear
- Resistance Tolerance: 100 Ohm~500K ±10%, Others ±20%
- Wattage Rating: 0.5Watt @ 40°C
- Working Temp. Range: - 55°C ~ + 100°C
- Temp. Coefficient: ± 100 PPM/°C
- Slider Current: 50mA DC
- Dielectric Voltage: 500V RMS
- Insulation Resistance: 1000M min.
- Value: 1K
