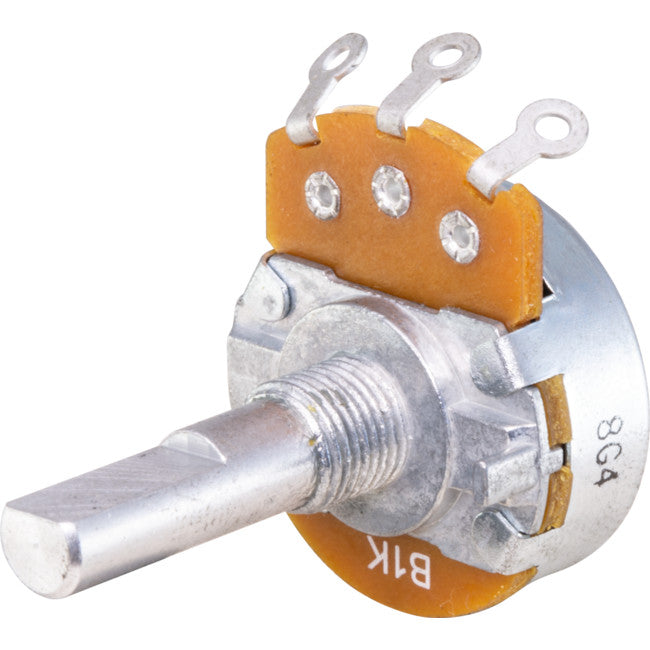

24SN1KB 1K (B) LINEAR POT POTENTIOMETER 15970

24SN1KB 1K (B) LINEAR POT POTENTIOMETER 15970

(24SN Replaces VCU) High quality rotary controls widely used throughout the industry for applications in the professional, industrial and entertainmentelectronics field. Produced by advanced manufacturing techniques using thequality materials, these rotary controls conform to: AS 1347 (1972) JIS 5049, EIA RC682, UL E359611 (Specifications):
- Resistance Tolerance: 20%
- Rotation Angle: 20%
- Rated Temp. Range: -25°C to + 70°C
- Operational Noise: <47mV
- Insulation Resistance: 1000M
- Isolation Voltage: 1000V AC 1Min
- Limiting Element V: Lin=500V Log=250V
- Wattage Rating (Max): .25Watt
- Shaft & Bush: 24mm L
- Shaft: 6.00 mm Ø Flat 11 mm L
- Overall Ø: 23.7MM
- Value: 1K
- Curve: Linear

Please Note: Online stock only for this item. Shipping at checkout for this item may be an estimate only and may apply only to some metro areas or to a specific distance from supply location. Local pickup may be available on some items by prior arrangement. Shipping charges may still apply for this item for Click and collect in store orders as this item may still need to be shipped to us for collection from the local pickup location.

Please use the contact us form to get an accurate shipping quote based on your order quantity and location to avoid order cancellation charges.
