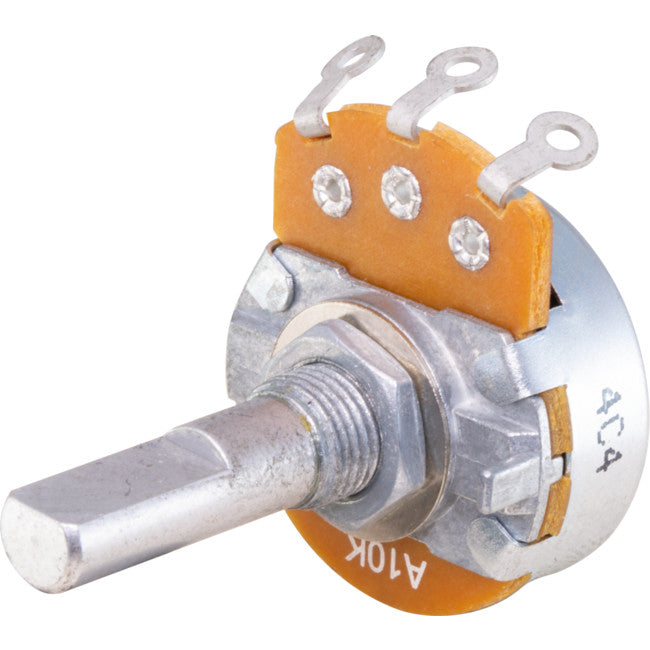

24SN10KA 10K (A) LOGARITHMIC POT POTENTIOMETER R2214

(24SN Replaces VCU) High quality rotary controls widely used throughout the industry for applications in the professional, industrial and entertainmentelectronics field. Produced by advanced manufacturing techniques using thequality materials, these rotary controls conform to: AS 1347 (1972) JIS 5049, EIA RC682, UL E359611 (Specifications):
- Resistance Tolerance: 20%
- Rotation Angle: 20%
- Rated Temp. Range: -25°C to + 70°C
- Operational Noise: <47mV
- Insulation Resistance: 1000M
- Isolation Voltage: 1000V AC 1Min
- Limiting Element V: Lin=500V Log=250V
- Wattage Rating (Max): .25Watt
- Shaft & Bush: 24mm L
- Shaft: 6.00 mm Ø Flat 11 mm L
- Overall Ø: 23.7MM
- Value: 10K
- Curve: Log
