$1.20

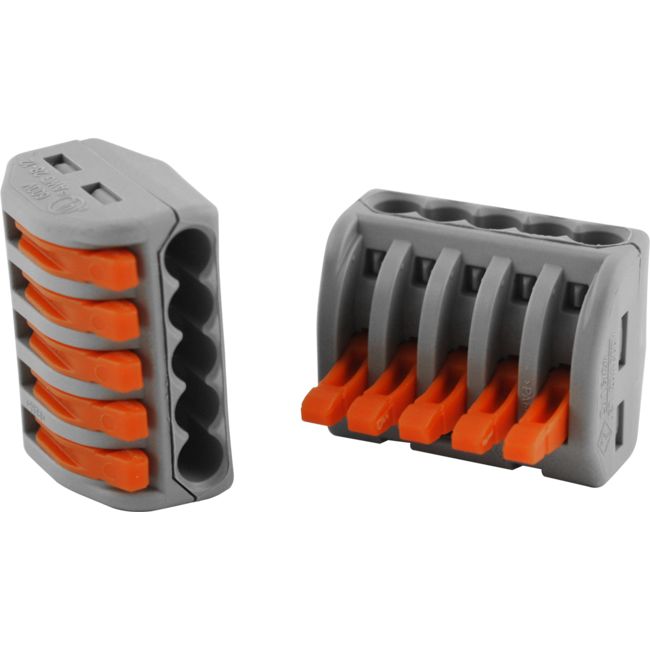

The compact splicing connector for all conductor types: By using the 222 Series splicing connectors, you can connectsolid conductors with a cross section of 0.08 to 4 mm’ and fine-stranded and stranded conductors with cross sections from 0.08 to 2.5 mm’. Without using any tools!
Wiring is very easy: Strip 9 - 10 mm/0.37 inches from thedesired conductor, open the clamping unit via the integratedlever, and insert the conductor. In addition to standard applications in building installations, these connectors canalso be fixed in position for use with mounting carriers, e.g. in distribution boxes.
In practical use, this connector can be used for intercomwiring, lighting fixtures, sunblinds, awnings, door and gatecontrols, inter phones, pumps, loudspeakers and many other applications ? , without tools!
| Name | Value | Unit |
| No. of Poles | 5 | |
| Total number of connection points | 5 | |
| Total number of potentials | 1 | |
| Color | gray | |
| Pollution degree (1) | 2 | |
| Rated voltage EN (1) [V] | 400 | V |
| Rated surge voltage (1) [kV] | 4 | kV |
| Nominal current [A] | 32 | A |
| Connection technology (1) | CAGE CLAMP® | |
| Connection type | CAGE CLAMP® | |
| Conductor type (1) | solid + stranded | |
| Cross section from (1) [mm’] | 0.08 | mm’ |
| Cross section up to (1) [mm’] | 2.5 | mm’ |
| Cross section from (1) [AWG] | 28 | AWG |
| Cross section up to (1) [AWG] | 14 | AWG |
| Conductor type (2) | fine-stranded | |
| Cross section from (2) [mm’] | 0.08 | mm’ |
| Cross section up to (2) [mm’] | 4 | mm’ |
| Cross section from (2) [AWG] | 28 | AWG |
| Cross section up to (2) [AWG] | 12 | AWG |
| Stripped length from (1) [mm] | 9 | mm |
| Stripped length up to (1) [mm] | 10 | mm |
| Stripped length (1) [in] | 0.37 | in |
| Type of wiring | Side-entry wiring | |
| Fire load [MJ] | 0.13 | MJ |
| Weight [g] | 6.565 | g |
| Width [mm] | 26.6 | mm |
| Width [in] | 1.047 | in |
| Height [mm] | 14.5 | mm |
| Height [in] | 0.571 | in |
| Length [mm] | 20.5 | mm |
| Length [in] | 0.807 | in |
| Safety information 1 | In grounded power lines |
