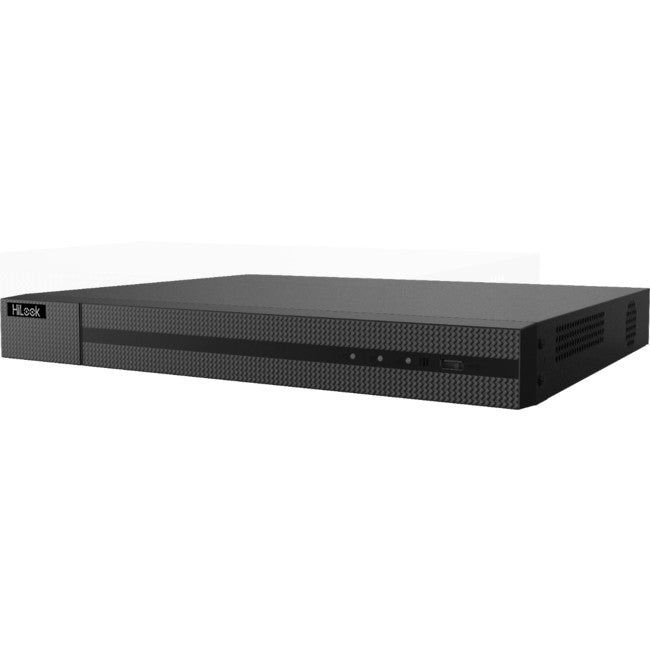

HiLook NVR-216MH-C-16P 16x PoE 16 Channel 4K HDMI, 2x SATA Network Video Recorder
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 160 Mbps incoming bandwidth
Specifications
Video And Audio
- IP Video Input16-ch
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- Audio Output1-ch, RCA (Linear, 1 KO)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k O)
Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability4-ch@1080p
- Synchronous Playback16-ch
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface16-ch
- Power≤ 150W
- StandardIEEE 802.3 af/at
RAID
Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 8TB capacity for each disk
- USB Interface2 × USB 2.0
General
- Power Supply100-240V~, 50/60Hz, 3.2A MAX
- Consumption≤ 15W
- Working Temperature-10 to +55’Š C (+14 to +131’Š F)
- Working Humidity10 to 90 %
- Chassis1U chassis
- Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- ≤ 2.6 kg (5.7 lb)
