207-1332 - IPX8 221 SERIES GELBOX SIZE 2 - WAGO

207-1332 - IPX8 221 SERIES GELBOX SIZE 2 - WAGO

$16.18

Overview

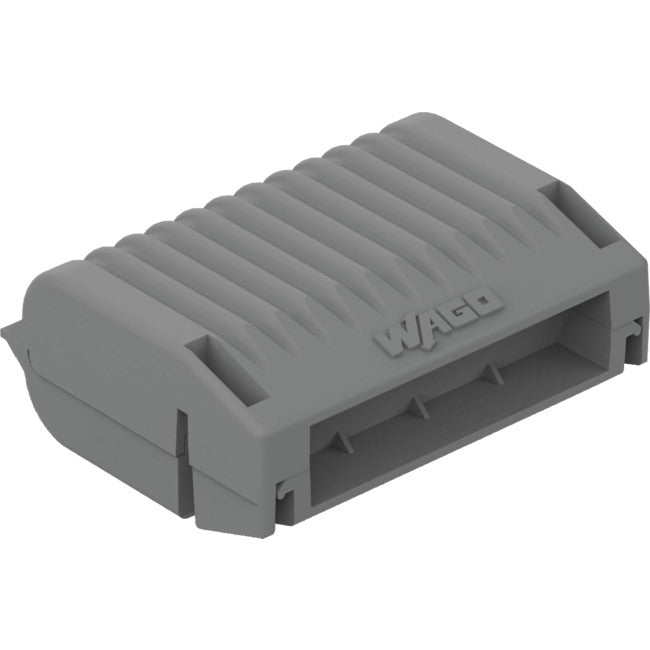

207-1332 IPX8 221 SERIES GELBOX SIZE 2 - WAGO

Easy, Fast, Safe and Versatile

The WAGO Gelbox protects the electrical installation at the connection points exactly where it matters without permanently encapsulating the junction boxes.

Thanks to its compact design the WAGO Gelboxes are easily accommodated in every junction box.

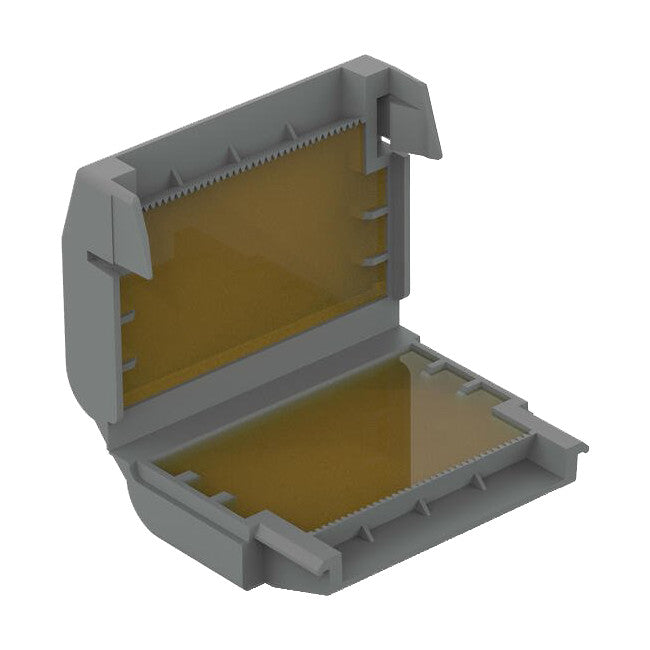

Installation is easy: Open the WAGO Gelbox, place the wired splicing connectors inside and close the Gelbox with slight pressure.

The gel completely wraps around the connectors toprotect the connection

Features

Space-saving, compact design
Easy to use through innovative design
The complete system consisting of Gelboxes and WAGO connectors has been VDE-tested and
IPX8-certified.
No conductor damage thanks to the flexible sealing lip
Time-saving thanks to direct commissioning, no mixingand hardening of gel mass is necessary
Can be used in all branches of industry due to silicone-free gel
Can be used in the low-voltage range with additional housing (double insulation)

Specs

Voltage range: see connector voltage
Rated current: see connector current
Rated surge voltage: 2.5 kV
Insulation resistance: 5 M?
Continuous operating temperature: 105 °C
Surrounding air temperature: 85 °C
Physical properties: IPX8
Suitable for indefinite storage because the gel
contains no hazardous substance according to CLP
