0-14 MULTI-TURN DIAL COUNTER FOR POTENTIOMETERS

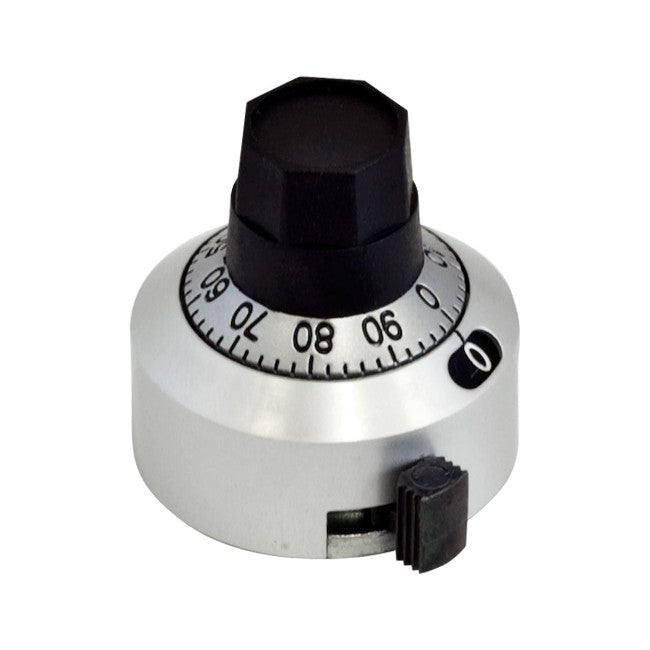

The inner scale of the Model 18 Multidial is graduated in fiftieths of a turn. The outer scale counts the number offull turns (0-14) that have been completed.
FEATURES:
- No backlash
- Compact-requires minimal panel space (22.2 mm diameter requirement)
- For use with precision potentiometers or other rotating devices, up to 15 turns (Suits 534 series 10 turn pots)
- Designed for metal shaft
- High force “Click Brake” slide lock tab
- Black color on request
- High-impact, flame retardant case withstands shock and vibration abuse
- Compact design requires minimal space
- Allen key supplied
MECHANICAL SPECIFICATIONS:
- Accepts Shaft Diameter: 6.35 mm (0.250")
- Size : 22.2mm O.D
- Number of Turns: 0 to 15
- Dial Division: 50 per turn
- Torque with Brake Engaged: 5 oz. - in (350 gr - cm)min.
- Markings: Black or satin chrome
- Weight: 15 g
- Set Srew: UNC 2-56
- Hex Key Size: 1.27 mm (0.05")
- Bushing Extension Beyond Panel: 6.35 mm (0.250") max.
- Shaft Extension Beyond Panel: 18.1 mm (0.710") min. / 22.2 mm (0.875") max.
