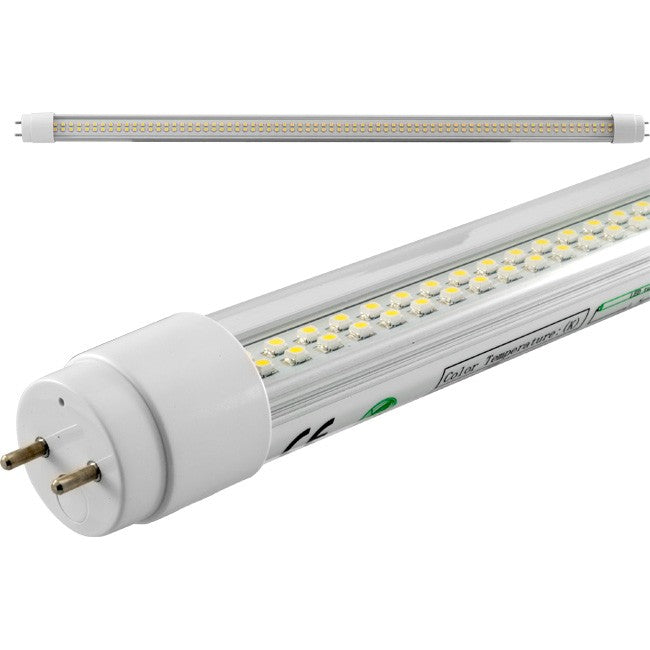

16W12T8WW 16W T8 LED TUBE 1.2M 3000K WARM WHITE 3528 SMD DOSS

Sold Out $55.00

T8 LED Tubes are an ideal replacement for traditional T8 fluorescent tubes as they have the advantages of high brightness, being energy efficient and a super long lamp life of at least 30,000 hours without any flickering.

Type: T8 Led Tube
16 Watts
Warm White (3000 ~ 3800K)
Length: 1.2m
288 LEDs

Benefits

Environmentally friendly: No glass no mercury, no electromagnetic emissions, no UV and no IR radiation.
Bright LED light source
Low heat emissions
Long life span: 30,000~50,000 hours
Saving of at least 40% for comparable fluorescent tubes
Vibration and shock resistant
12 month warranty

Applications

Living room
School
Factory
Supermarket
Kitchen
Warehouse
Show rooms

Tube type	T8 LED tube
Colour& Colour temperature	Warm White (3000~3800K)
LED type	3528 smd leds
LED Quantity	288 pieces
Working voltage	AC100-130V/200-260V
Light Efficiency	70-90LM/W
Luminous Flux	1700-1800 lm
Output power	16W
Material	Aluminium Alloy Shell + Transparent PC
Operation temperature	-20 ~ 55°
Power efficiency	80-85%
Power factor	90%
Colour rendering index	Ra>76%
Certification	CE,RoHS

Video Tutorial

Scenario

Radio Parts has approximately 500 fluoro tubes [item 25582495] in current use.
Current cost of power is 0.152¢ per kWh [3 phase]
We will start replacing these with LED tubes [25600110]

Workings

The Doss T8 is rated at 16W as opposed to the 36W ofa standard T8 fluorescent tube
Using a Fluke 771F we confirmed the current draw
By roughly adding the material, labour and power costs, we investigated costs over a 25 year period

Assumptions

Cost of LEDs are reducing in price over time, but we are assuming that prices remain the same
Usage is based on 8 hours per day for 365 days a year
Energy costs are likely to increase over time, but we are assuming energy prices remain fixed
The assumed install price is the same. Though LEDs involve the removal of the starter and ballast, the fluoros are hotter (cannot be touched) and are more fragile

Conclusion

For our existing site, it's nearly cost neutral forthe first 2-3 years. After 25 years, we expect to save over $80,000

T8 LED Tube Installation Manual PDF.

View the T8 LED Tube Installation Manual PDF (822kb)
