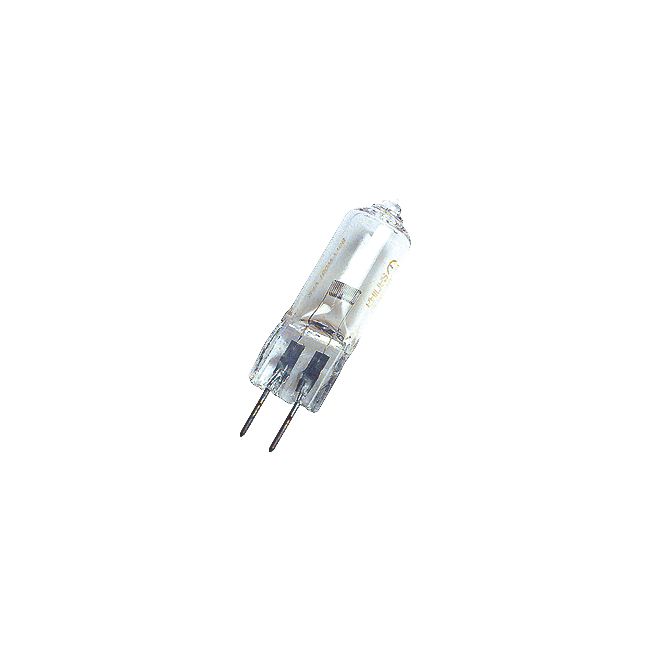

150W24V 24V 150W QI PROJECTION LAMP / MICROSCOPE GLOBE ANSIG: FCS OSRAM 5470 OR 5520

150W24V 24V 150W QI PROJECTION LAMP / MICROSCOPE GLOBE ANSIG: FCS OSRAM 5470 OR 5520

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Low-voltage, Flat-filament Quartz Halogen Lamps

Designed specifically for microscopes and projection units these lamps are extremely high quality and high performance. This allows for amazing clarity and extreme accuracy when needed for professional applications.

Features:

  • Small bulb shape and high luminous intensity
  • Lamps with prefocus base have a better-defined position of the filament in the system, allowing lamp replacement without adjustment
  • XHP lamps are optimised for maximum light output byusing xenon filling gas within IEC limits for these types

Product Benefits:

  • Specially suited for use in compact, efficient projection systems
  • Constant, high light output during lifetime
  • Distortion-free quartz bulb for optimal beam performance

Application:

  • Studio, film, theatre and disco lighting
  • Slide, overhead, profile and 8/16 mm film projectors
  • Microfilm readers and reader printers
  • Dental lights
  • Microscopes and endoscopes

Specifications:

  • Philips Code: 7158
  • NSI Code: FCS
  • LIF Code: A1/216
  • Cap-Base: G6.35
  • Bulb Material: Quartz-UV Open
  • Filament Shape: Flat
  • Burning Position: s90
  • Main Application: Projection
  • Size (WH): 13.5 x 50mm
  • Pin Spacing: 6.3mm
  • Life to 50% failures: 50 hr
  • Rated Lamp Wattage: 150W
  • Voltage: 24V
  • Colour Rendering Index: 100 Ra8
  • Lamp Luminous Flux: 5200 Lm
  • Filament Dimensions (WxH) [mm]: 5.8x2.9
