$450.95
DW MEGApix® IP cameras are NDAA compliant and deliver crystal-clear images at 5MP resolution and real-time 25fps.

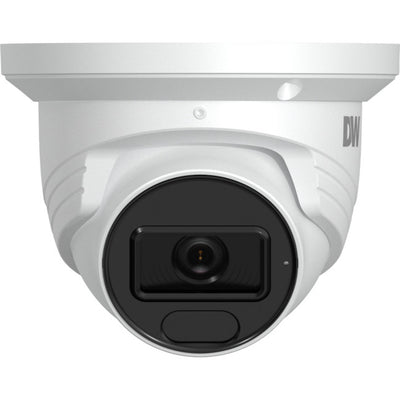

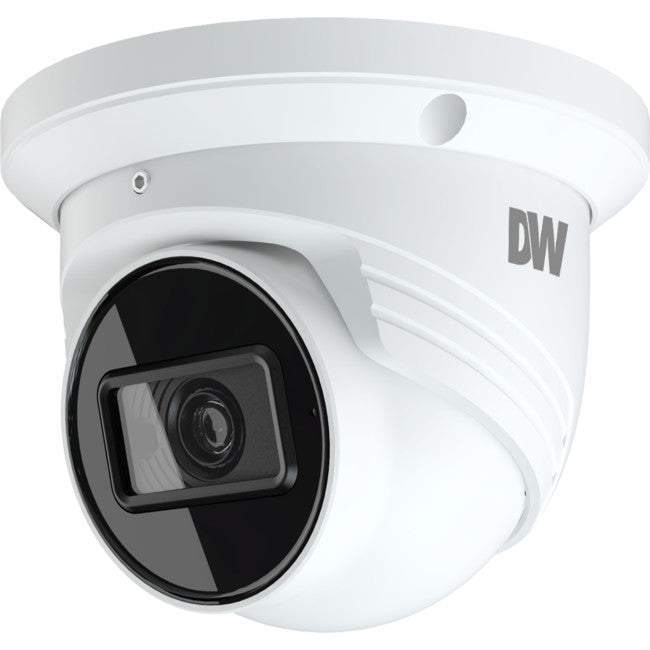

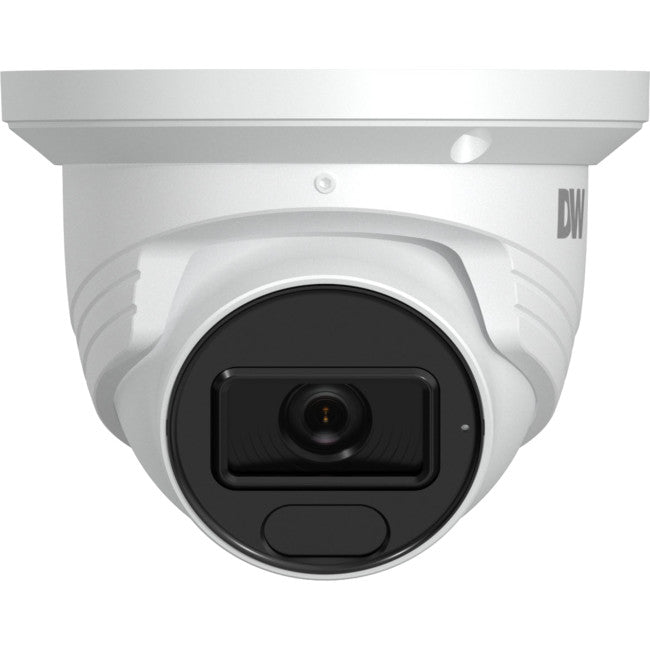

The IP67-rated turret camera features a 2.8mm fixed lens and a 360° camera gimbal for absolute view adjustment.
Added intelligence includes line crossing, perimeter intrusion, video tampering detection and object classification.
All Digital Watchdog MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Digital Watchdog® IP cameras, analog cameras, NVRs, DVRs, network devices and management software sold and distributed worldwide are designed and developed in U.S.A. and Korea.Manufactured in South Korea and Taiwan.
Features
specs
IMAGE | ||
Image sensor | 5MP 1/2.7” CMOS | |
Total pixels | 2592 (H) x 1944 (V) | |
Minimum scene illumination | 0.02 lux (color) | |
0.0 lux (B/W) | ||
S/N ratio | 50dB | |
LENS | ||
Focal length | 2.8mm, F1.6 (DWC-MT95Wi28TW) 3.6mm, F1.6(DWC-MT95Wi36TW) | |
Lens type | Fixed lens | |
Field of view (FoV) |
98.5°(DWC-MT95Wi28TW) 81.4°(DWC-MT95Wi36TW) | |
IR distance | 100ft Range | |
I/O | ||
Audio in/out | 1 audio input and1 microphone built-in / 1 output | |
Audio compression | G.711A / U | |
OPERATIONAL | ||
Shutter mode | Auto, manual | |
Shutter speed | 1/30s ~ 1/100000s | |
Auto gain control | Auto | |
Day / night | Auto, day (color), night (B/W), schedule | |
Smart DNR™ 3D digital noise reduction | 3D DNR | |
Wide dynamic range (WDR) | True WDR low, middle, high | |
Wide dynamic range (WDR) dB | 120dB | |
Privacy zone | 4 programmable privacy masks | |
Camera analytics | Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects) | |
Alarm notifications | Notifications via e-mail or FTP server | |
| Memory slot | Micro SD / SDHC / SDXC (card not Included) | |
NETWORK | ||
LAN | 802.3 compliance 10/100 LAN | |
Video compression type | H.265. H.264, MJPEG | |
Resolution | 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps) HFR mode: 1080P / 720P (60Hz: 1 ~ 60fps; 50Hz: 1~50fps) | |
Frame rate | Up to 30fps at all resolutions | |
Video bitrate | 64 Kbps ~ 8 Mbps | |
Bitrate control | Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth) | |
Streaming capability | Dual-stream at different rates and resolutions | |
IP | IPv4, IPv6 | |
Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS | |
Security | IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL | |
ONVIF conformance | Yes | |
Web viewer | OS: Windows® Browser: Internet Explorer | |
Video management software | DW Spectrum® IPVMS | |
ENVIRONMENTAL | ||
Operating temperature | -22°F ~ 140°F (-30°C ~ 60°C) | |
Operating humidity | 95% RH (non–condensing) | |
IP rating | IP67-rated | |
| IK rating | IK 10 impact-resistant | |
Other certifications | CE, FCC, RoHS | |
ELECTRICAL | ||
Power requirement | DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included) | |
Power consumption | 7W | |
MECHANICAL | ||
Material | Metal turret housing | |
Dimensions | 4.66" x 3.58" (118.6 x 91 mm) | |
Weight | 1.01 lb (0.46 kg) | |
| Warranty | 3 year warranty | |
