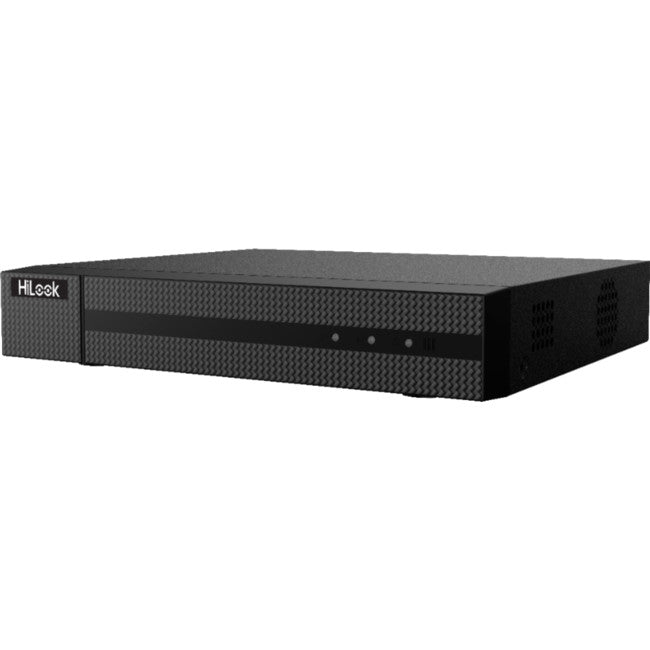

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder
- Up to 8 channel IP cameras can be connected
- Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
- Supports decoding H.265+/H.265/H.264+/H.264 multiple video formats
- Up to 4-ch @ 1080p decoding capacity
- 1 HDD for continuous video recording.
Specifications
Video And Audio
- IP Video Input8-ch ,Up to 8 MP resolution
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI/VGA OutputHDMI:1-ch, 4K (3840 × 2160)/30Hz,1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output,VGA:1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ;HDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback8-ch
- Live View/Playback Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Capability1-ch @ 8 MP / 4-ch @ 1080p
Network
- Network ProtocolsIPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Remote Connection64
PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Max. Power≤75W
- Supported StandardIEEE 802.3 af/at
Hard Disk
- SATA1 SATA interface
- CapacityUp to 6TB capacity for each disk
External Interface
General
- Power≤ 90 W
- Power Supply48 VDC
- Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
- Working Humidity10 to 90 %
- Consumption(Without Hard Disk)≤ 10 W (without enabling PoE)
- Dimensions(W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
- Weight(Without Hard Disk)≤ 1 kg (2.2 lb)
