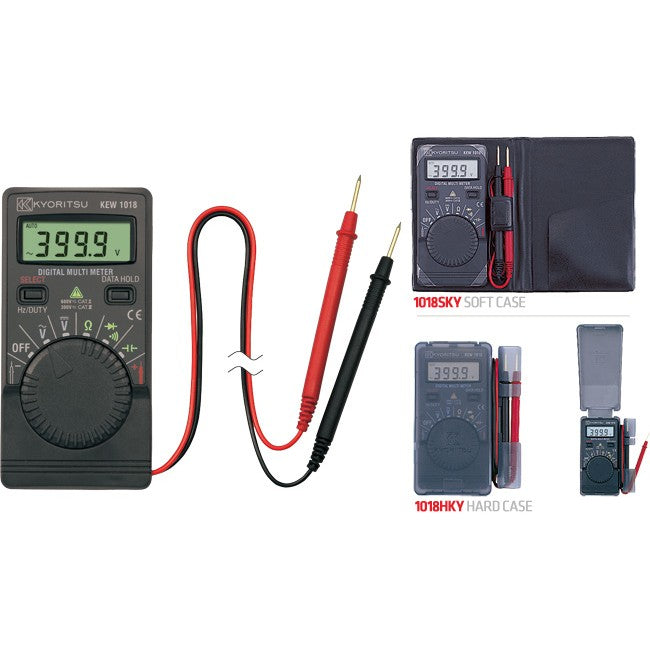

1018HKY HARD CASE DIGITAL MULTIMETER CAT3 RATED - KYORITSU KYORITSU 1018H

$152.25

CAT3 RATED KYORITSU HARD CASE DIGITAL MULTIMETER

This is a Digital Multi Meter providing high portabilityby means of stowing the instrument body together with probe in the notebook-size SOFT or HARD cover.

Designed to international safety standards.

IEC 61010-1 Measurement CATIII - 300V
Pollution degree 2
IEC 61010-031 (probe assemblies)

FEATURES:

REL function to check the difference of measured values
Auto power off function to save battery consumption
Data hold function
Diode and Continuity check function
Auto-ranging function
Frequency measurement function
DUTY measurement function (Express Pulse width / Pulse period as a percentage)

SPECIFICATIONS:

DC V	400mV/4/40/400/600V (Input Impedance 10MΩ) 5dgt (400mV/4/40/400V) 5dgt (600V)
AC V	4/40/400/600V (Input Impedance 10MΩ) 5dgt (4/40V) 5dgt (400/600V)
Frequency	10/100Hz/1/10/100/200kHz
Ω	400Ω/4/40/400kΩ/4/40MΩ 5dgt (400Ω/4/40/400kΩ/4MΩ) 5dgt (40MΩ)
Diode Test	4V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test	4nF/40nF/400nF/4µF/40µF/200µF
Continuity buzzer	400Ω (Buzzer sounds below 120Ω)
Withstand Voltage	3700V AC for 1 minute
Applicable standards	IEC 61010-1 CAT.III 300V IEC 61010-2-031 IEC 61326-1
Power Source	LR44 (1.5V) × 2
Dimensions	107(L) × 54(W) × 10(D)mm
Weight	70g approx.
Accessories	LR44× 2 Instruction Manual 1018 (Soft Case) 1018H (Hard Case)
